How to upload or export Skydio X2E flight logs

  1. Skydio
  2. Skydio X2 Enterprise
  3. Post-flight Skydio X2E

You can export your flight logs and upload them so that the support team can troubleshoot any issues or questions you may have. To do so, you may either upload your Skydio X2 logs directly to Customer Support or export them to a flash drive. We recommend uploading to the Skydio Support cloud as the preferred method for exporting flight logs for a quicker assessment of your issue. Skydio will never review your videos or data without your permission. Do not reformat or factory reset your Skydio drone prior to contacting our support team.

Quick Steps

To export and upload flight logs:

Step 1 - Ensure your controller battery is fully charged, as you cannot export and charge your controller simultaneously.

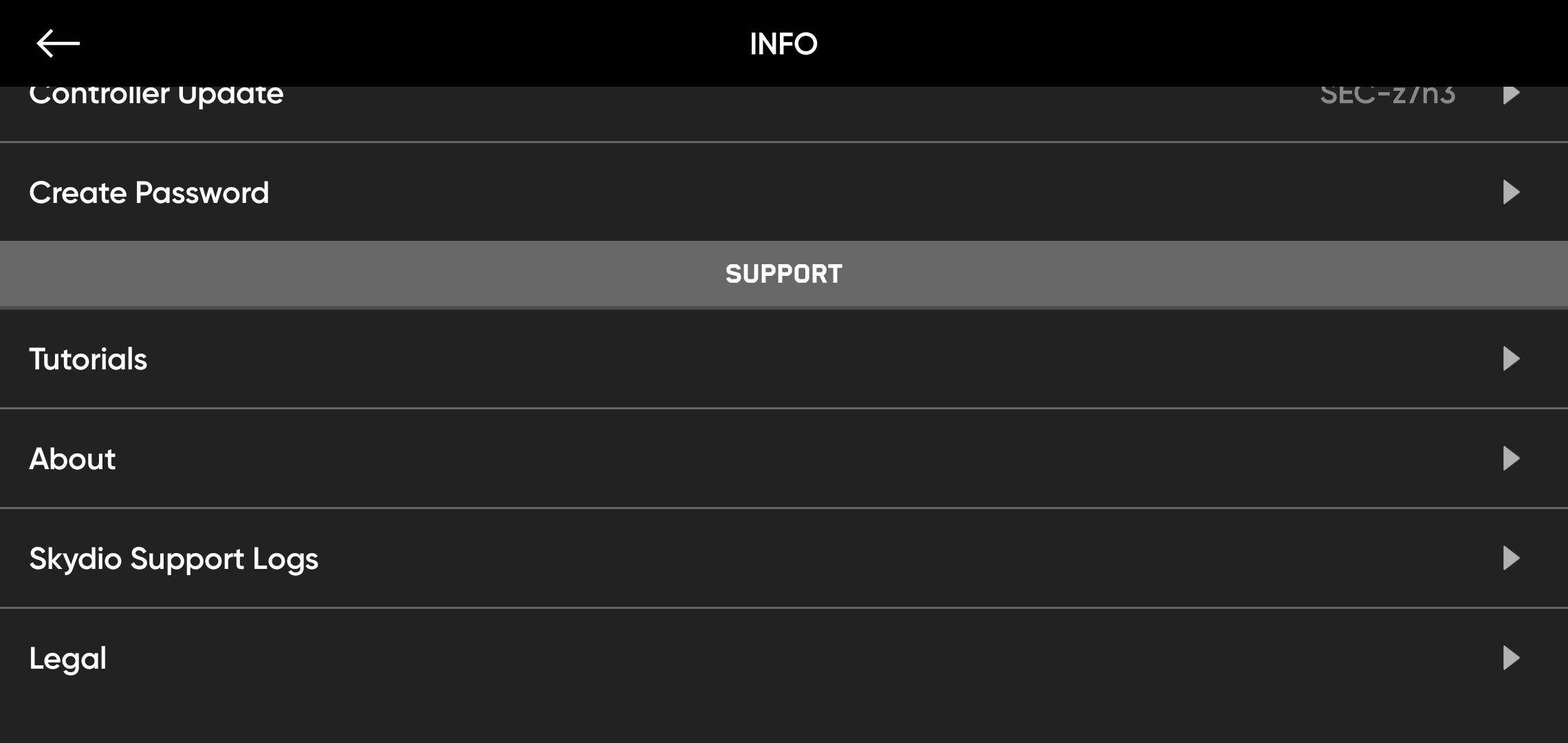

Step 2 - Select the INFO menu

Step 3 - Select Settings

Step 4 - Select Flight Logs


Step 5 - If exporting to drive - insert a USB flash drive into the controller

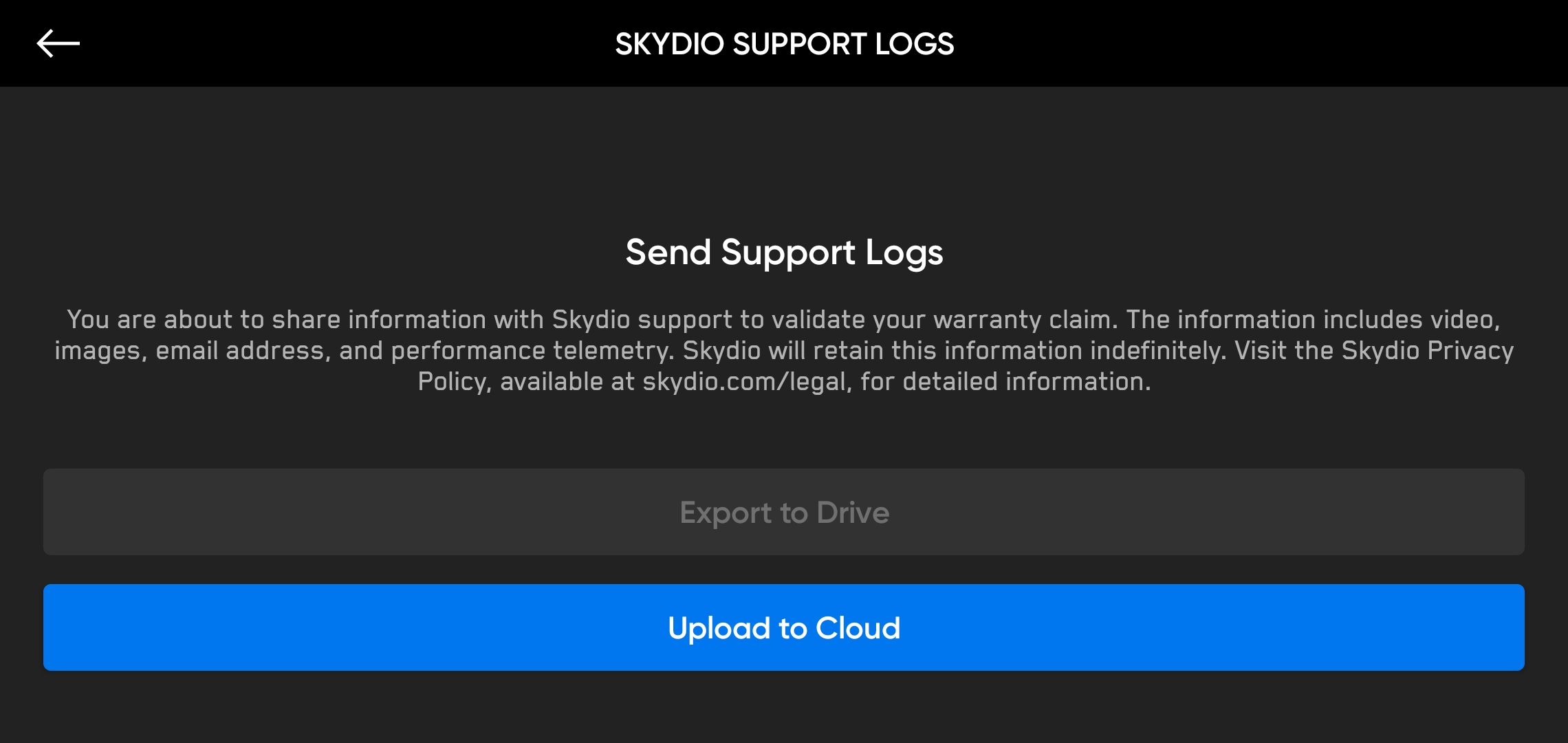

Step 6 - Select Export to drive

             OR Upload to cloud

Step 7 - If you selected Export to Drive - navigate to the USB drive folder you want to export your flight logs to


Step 8 - Select Allow

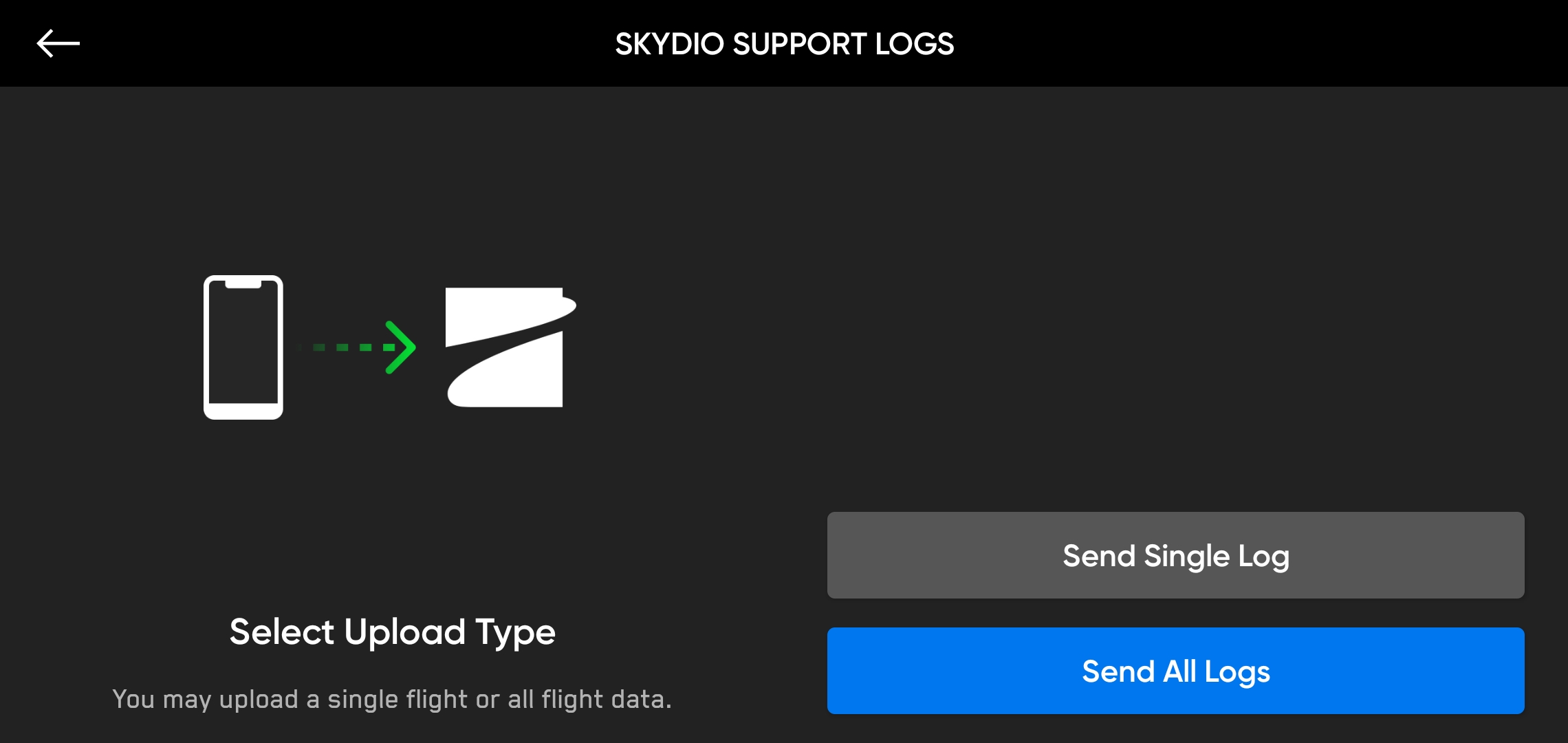

You will be prompted to select between exporting a Single Flight or All Controller Logs:

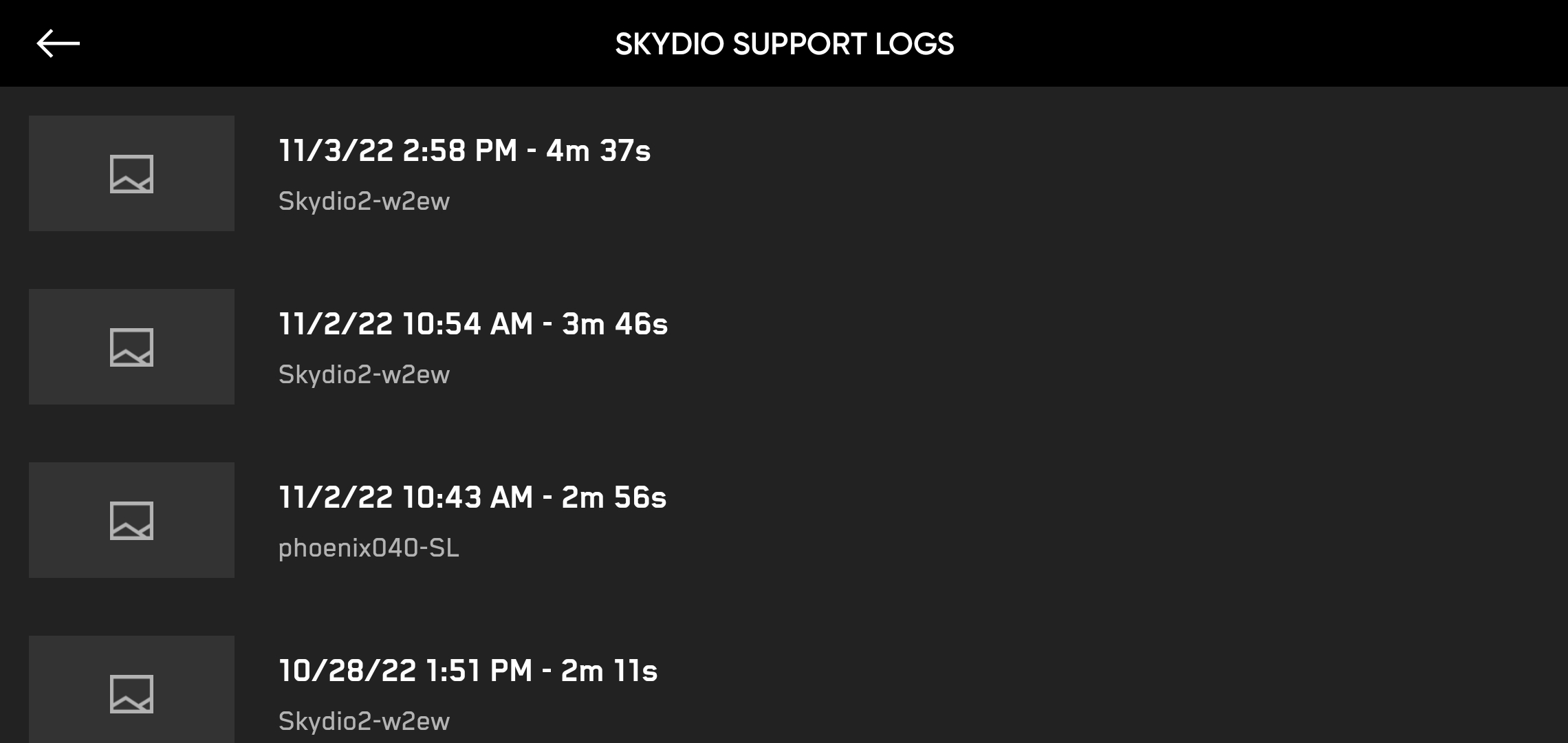

Single Flight - Includes all logs from a specified flight. This option will show you the history of all flights, organized by date and time. Select which individual flight you wish to upload.

    • If you are exporting a Single Flight, the system will first download the flight data directly from X2 to the Controller. This step may take a few minutes. You will be alerted if the logs fail to load. When completed, the logs will automatically begin exporting to the inserted USB flash drive or to Skydio Cloud.
All Controller Logs - Export all of the flight logs saved on the controller from all flight history. This option allows you to sync logs whether you are connected to the vehicle or not.
After selecting the type of flight logs you wish to export, a loading screen will display the export status. Once complete, your logs will be listed on the flash drive and organized in folders that match the flight IDs.

[note text="The Skydio Support Team will provide you with directions on which logs to upload."]

You may also save your flight history  as a CSV file:

Save flight information to a flight_log.csv file in the root folder of the media SD card containing the following flight data:

    • Vehicle name
    • Flight ID
    • Launch latitude/longitude and time
    • Land latitude/longitude and time

Step 1 - Select the INFO menu

Step 2 - Select your device


Step 3 - Select Flight History File

Step 4 - Select Store Flight History

    • the flight history log will be stored on the SD logs memory card and available for download as a CSV file.

Explore More

Explore related articles for additional information

Access Skydio X2E Manuals, Checklists, and Guides



Skydio, Inc. A0009
