Environmental conditions, cellular network availability, and direct connection range can all affect the quality of your live stream. In order to get the best quality from your live stream, configure your Skydio X10 system according to these conditions.

Skydio X10 flies over Fusion by default, which automatically uses the stronger of Connect SL and Connect 5G. To choose a connection yourself, select the Signal Strength indicator and select Fusion, SL, or 5G. When Drone 5G Radio is on and the drone flies over Connect 5G or Fusion, the drone live streams automatically (requires the Skydio Live Streaming add-on).

You Have Good Cellular Coverage Everywhere (Both on the Ground and in the Air)

Step 1 - Enable cellular connectivity on your drone

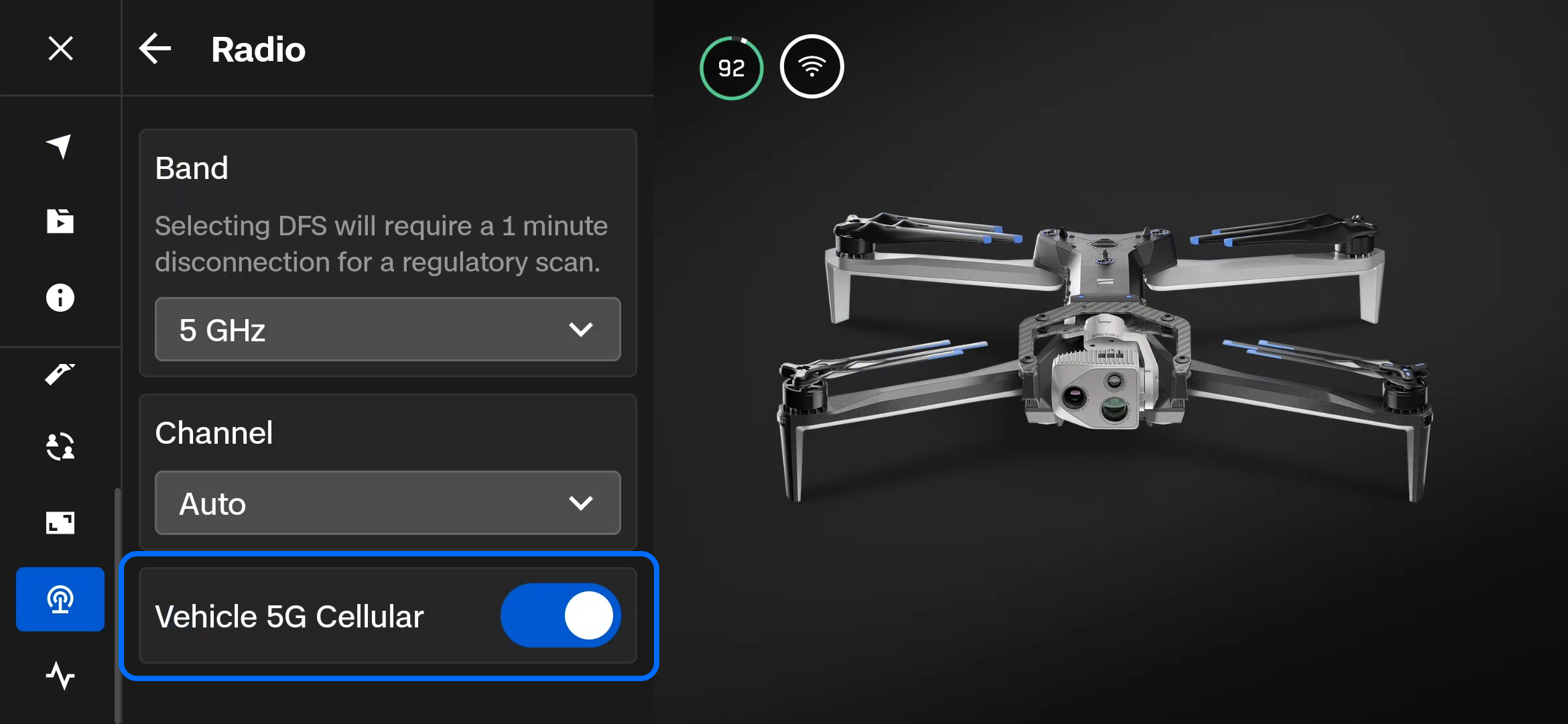

  • Global Settings > Radio > turn on Drone 5G Radio

Step 2 - Enable cellular connectivity on your controller

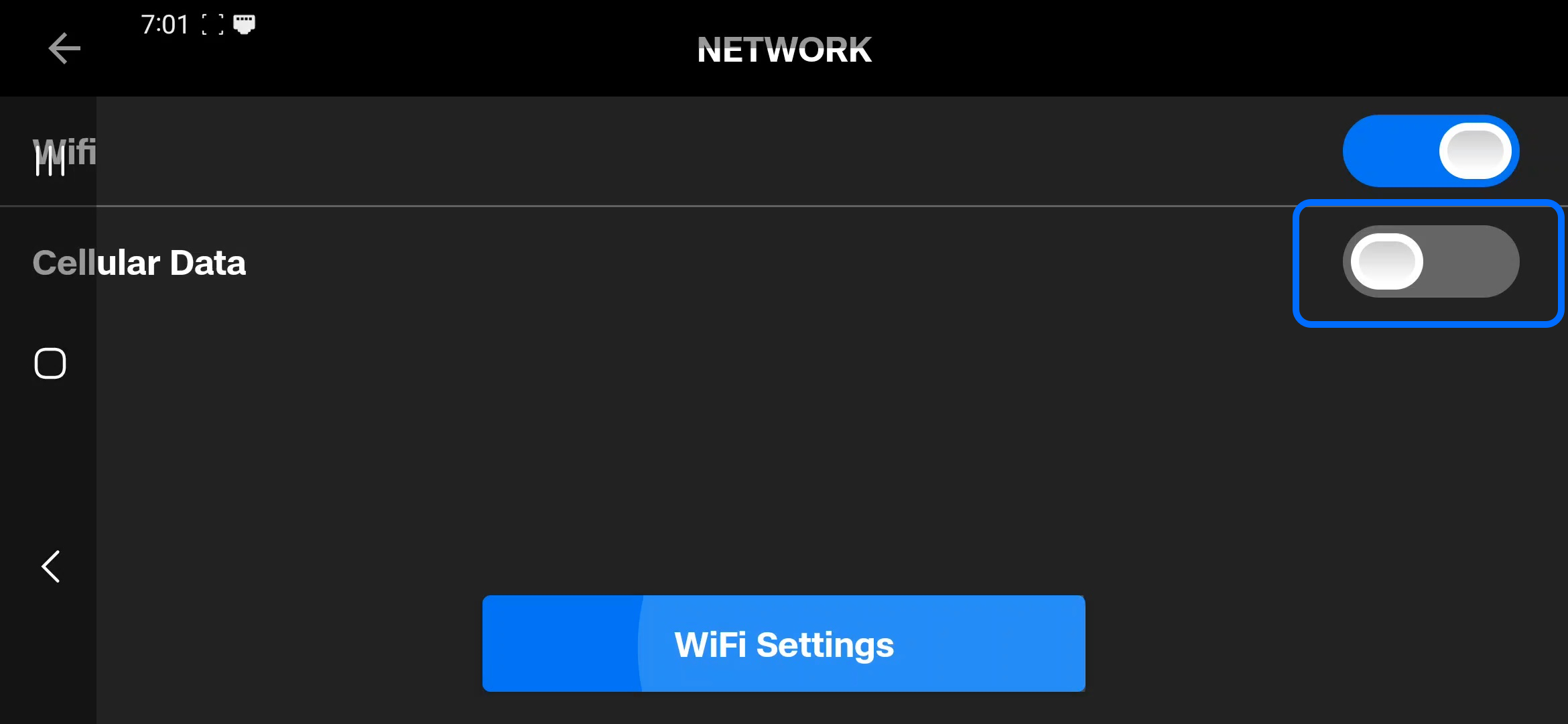

  • Global Settings > Information > Device Settings > Network > toggle ON Cellular Data



Step 3 - Fly over 5G Cellular

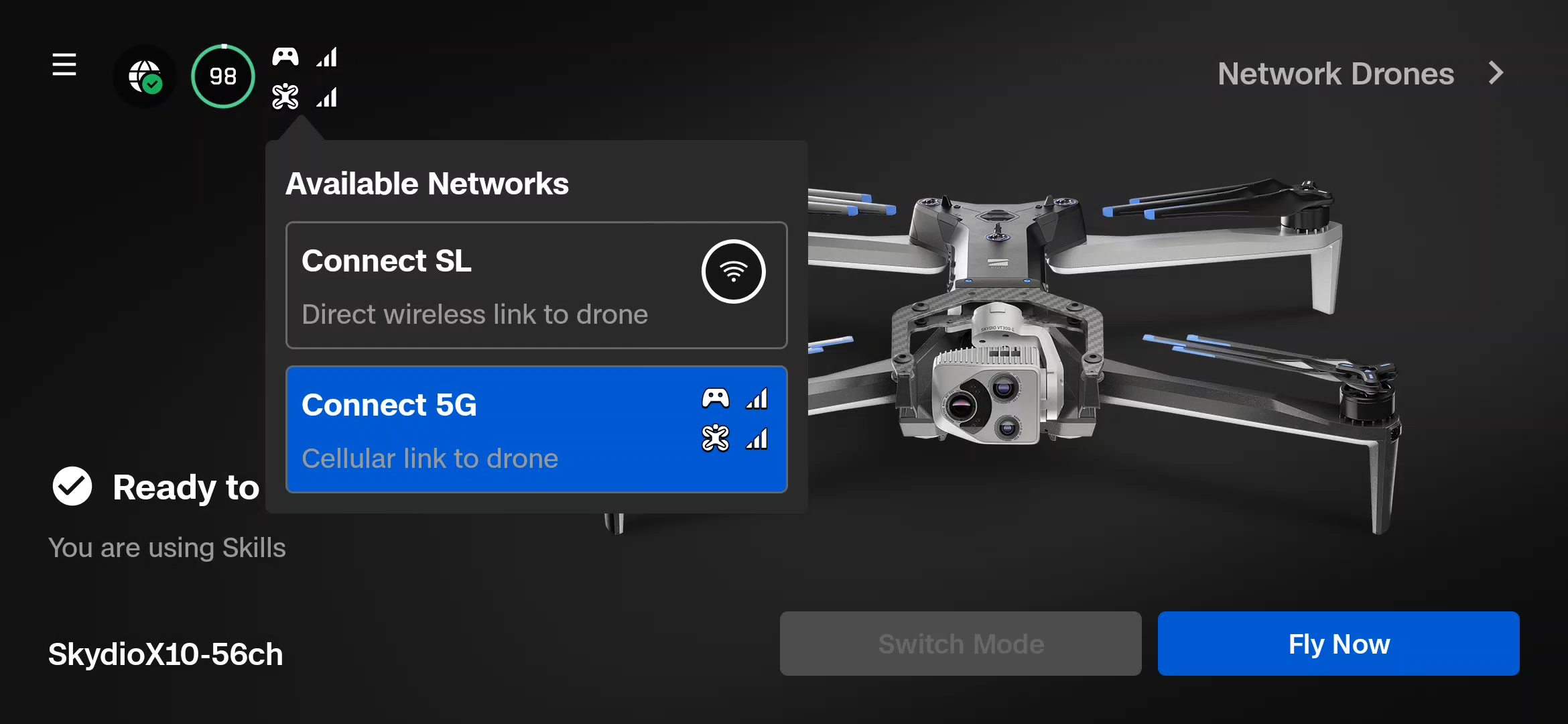

  • Select the Signal Strength indicator and then select Connect 5G as your connection type



Note: When Drone 5G Radio is on and the drone flies over Connect 5G or Fusion, the drone automatically live streams its flights. There is no need to manually start a live stream.

You Have Good Cellular Coverage in the Air, but Poor Coverage on the Ground

Step 1 - Enable cellular connectivity on your drone

  • Global Settings > Radio > turn on Drone 5G Radio

Step 2 - Fly over Skydio Connect SL

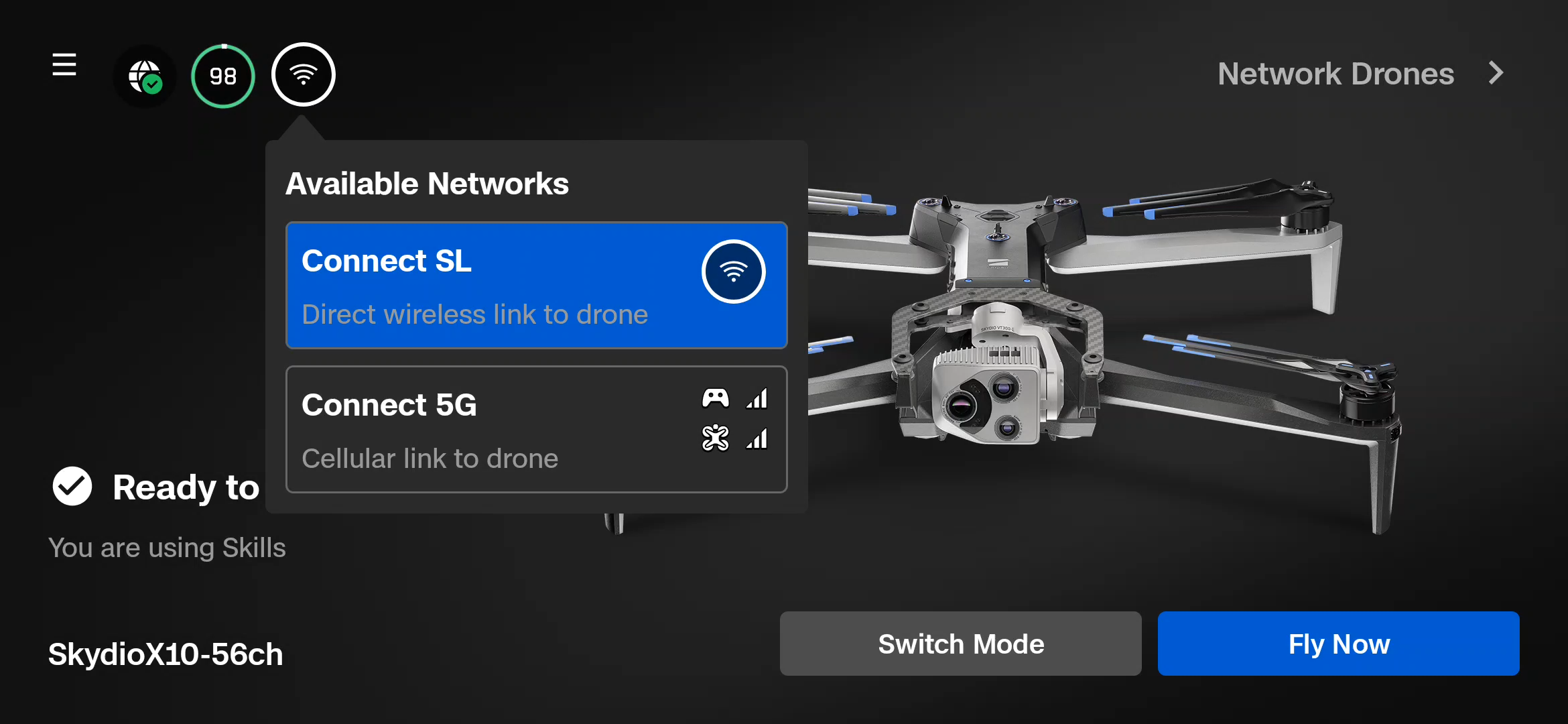

  • Select the Signal Strength indicator and then select Connect SL as your connection type



Note: When Drone 5G Radio is on and the drone flies over Connect 5G or Fusion, the drone automatically live streams its flights. There is no need to manually start a live stream.

You Have Good Cellular Coverage on the Ground, but Poor Coverage in the Air

Step 1 - Enable cellular connectivity on your controller

  • Global Settings > Information > Device Settings > Network > toggle ON Cellular Data



Step 2 - Disable cellular connectivity on your drone

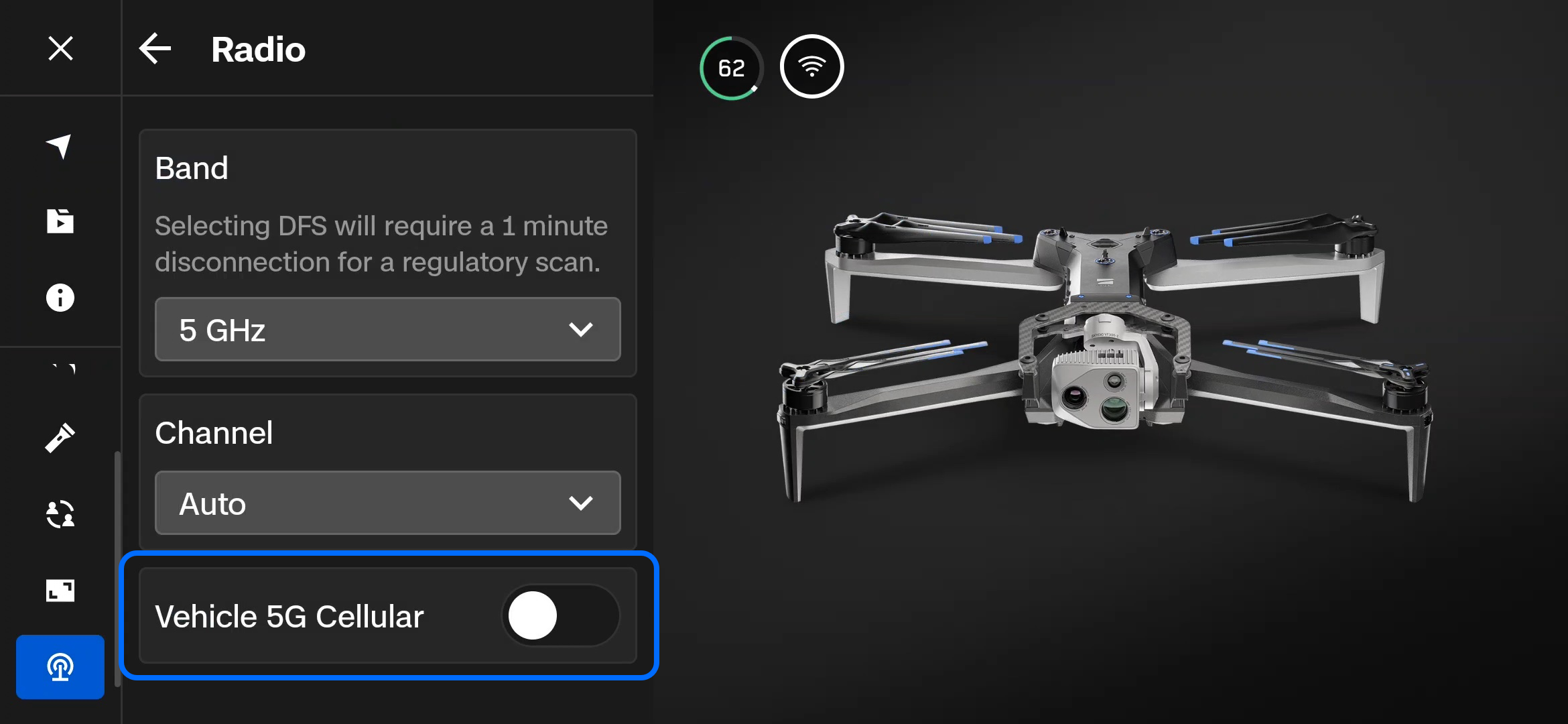

  • Global Settings > Radio > turn off Drone 5G Radio

Note: When Drone 5G Radio is off, your drone flies over Skydio Connect SL.

Step 3 - Initiate a live stream from the controller

  • Global Settings > Sharing > Live Stream, then select Start Stream



You Do Not Have 5G Cellular, or You Have Poor Coverage on the Ground and Poor Coverage in the Air

Step 1 - Disable cellular connectivity on your drone

  • Global Settings > Radio > turn off Drone 5G Radio

Note: When Drone 5G Radio is off, your drone flies over Skydio Connect SL.

Step 2 - Disable cellular connectivity on your controller

  • Global Settings > Information > Device Settings > Network > toggle OFF Cellular Data



Step 3 - Enable controller Wi-Fi and connect to a Wi-Fi network or hotspot

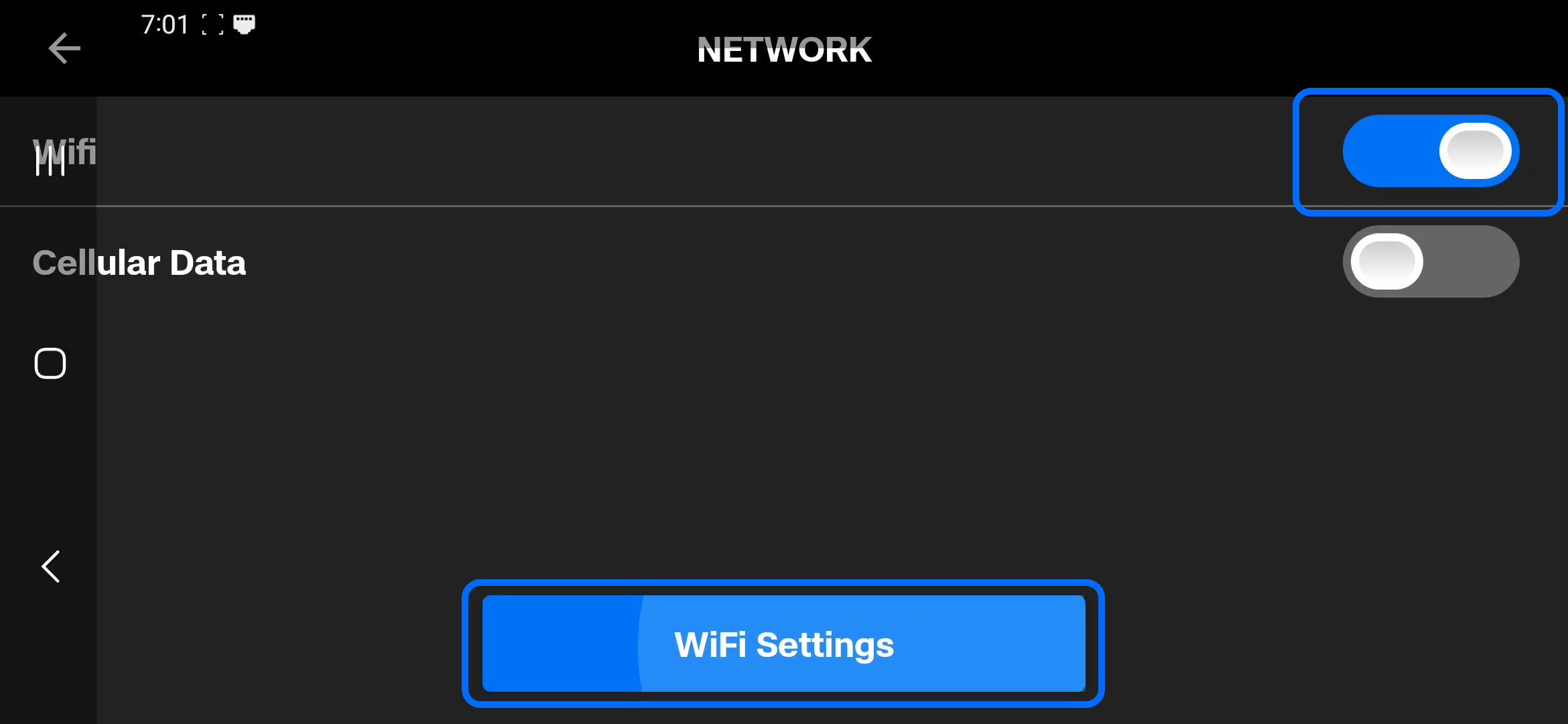

  • Global Settings > Information > Device Settings > Network > turn on Wi-Fi

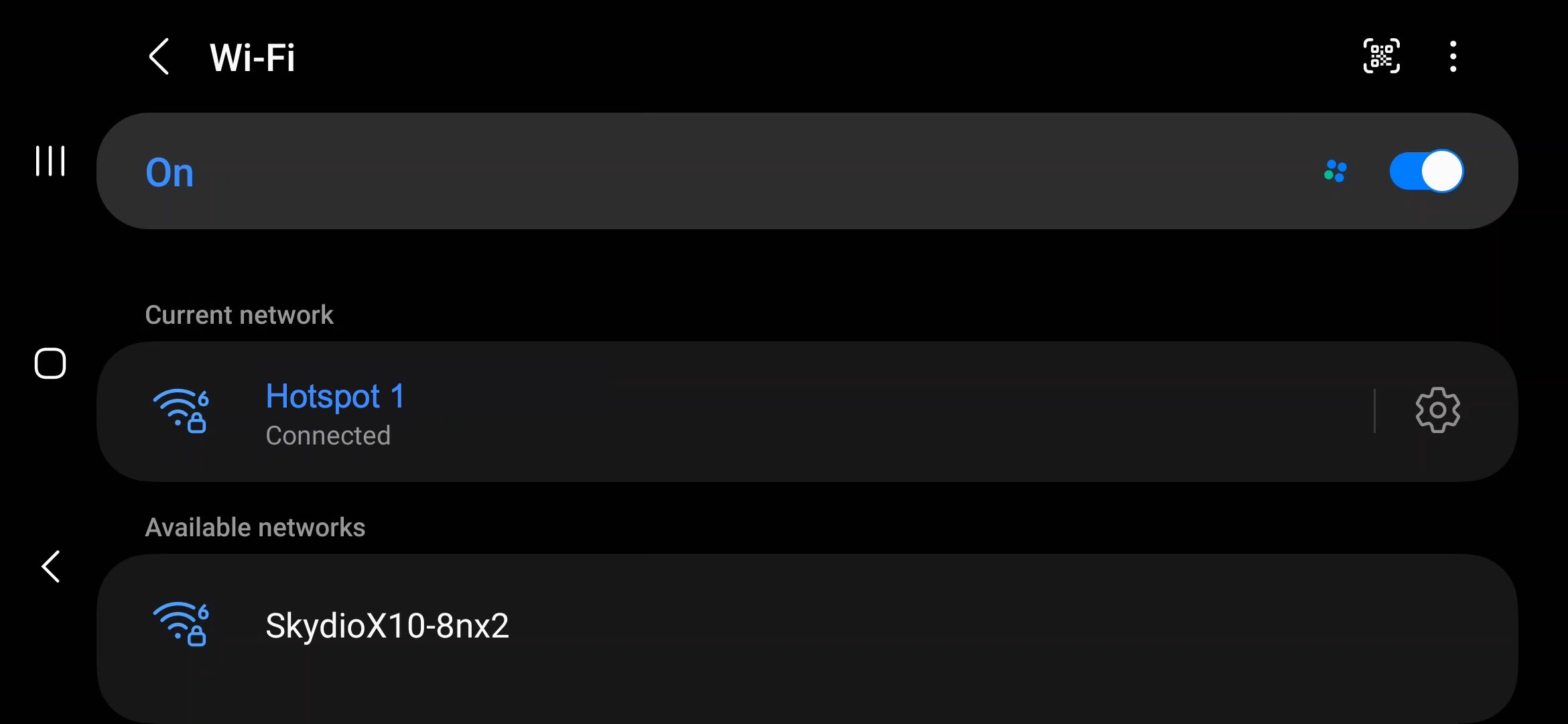

  • Select Wi-Fi settings to connect to a Wi-Fi network or hotspot

  • For live streaming, connect to a 2.4 GHz Wi-Fi network; 5 GHz networks are not recommended





Step 4 - Initiate a live stream from the controller

  • Global Settings > Sharing > Live Stream, then select Start Stream



Additional Troubleshooting and Best Practices

[accordion heading="Poor cellular coverage"]

If you have poor-to-mediocre cellular coverage, but you need to fly over cellular to extend your operating range:

  • Enable 5G Cellular on both the controller and vehicle

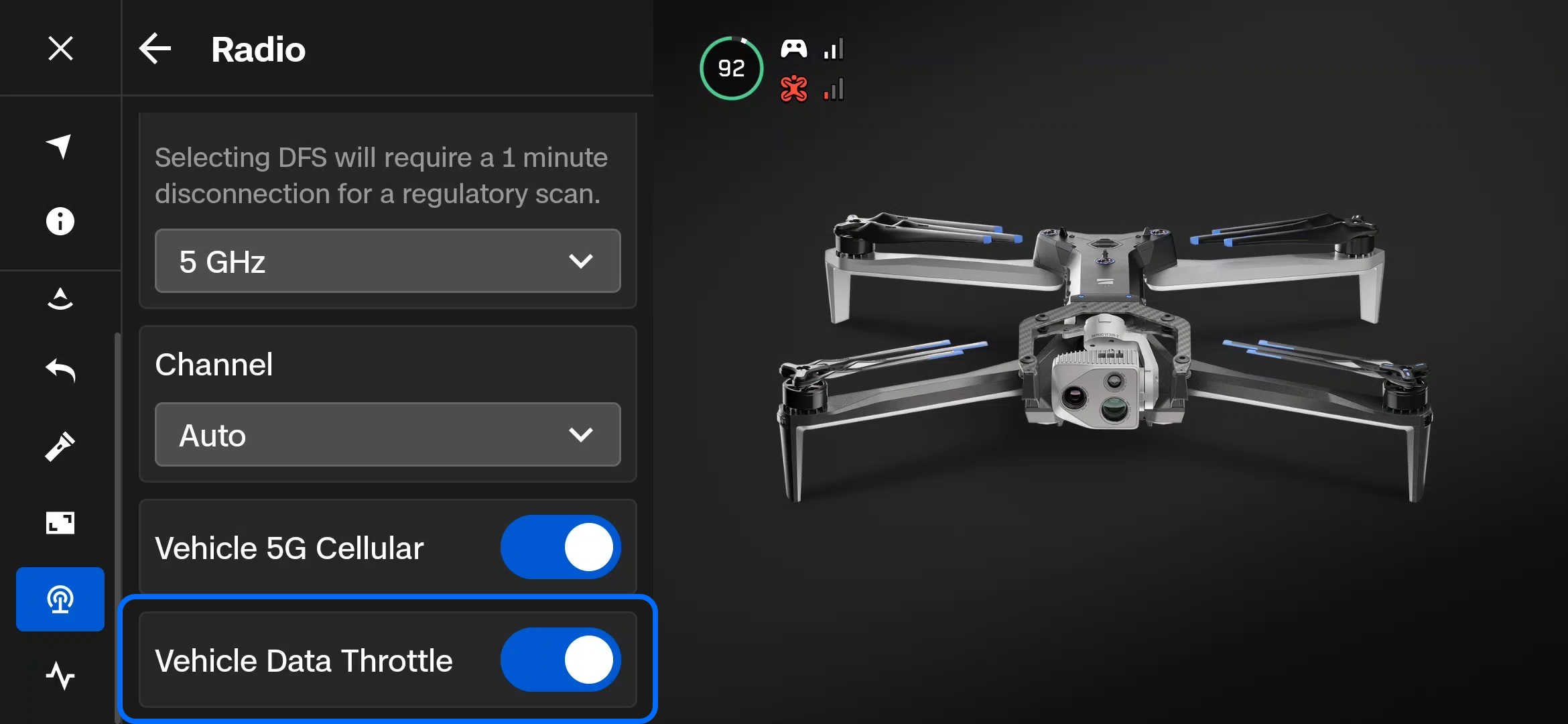

  • Turn on Low Data Mode (Global Settings > Radio)

This helps reduce instances of lost connection or high video latency when flying in locations with poor cellular coverage

[/accordion]

[accordion heading="To maximize HDMI-Out quality"]

  1. Disable Live Stream

  2. Disable controller Wi-Fi

    • Global Settings > Information > Device Settings > Network > turn off Wi-Fi

[/accordion]

[accordion heading="To maximize controller video quality"]

  1. Disable Live Stream, or

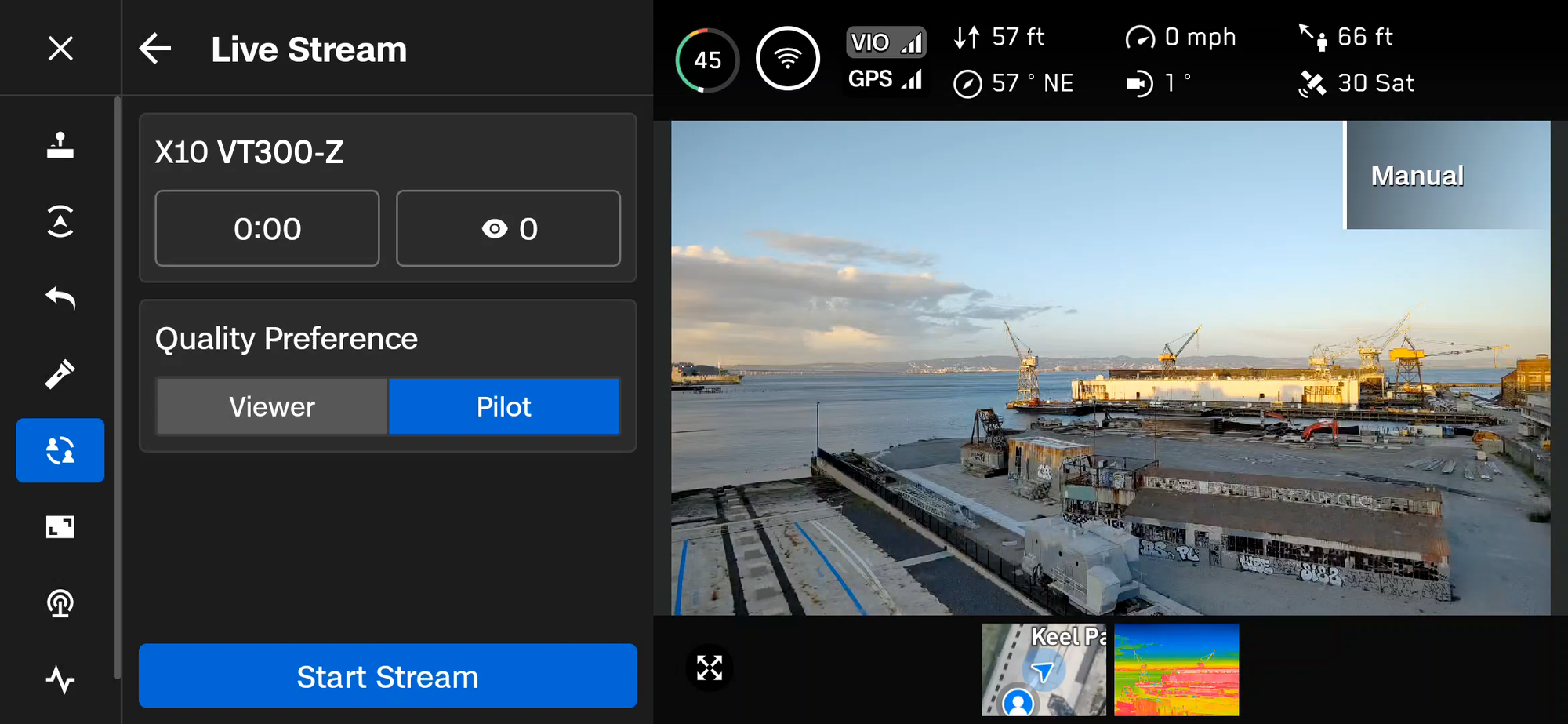

  2. Select Pilot with the Quality Preference toggle

    • Global Settings > Sharing > Live Stream



Note: “Pilot” is the preferred setting when Live Streaming via X10 Controller. “Viewer” should only be used when attempting to stream via a weak X10 Controller connection to the internet (because the X10 Controller has a weak Wi-Fi connection, the hotspot being used with the X10 Controller has a weak cellular connection, or the X10 Controller cellular connection is weak) AND the video quality for a remote viewer is more important than the pilot’s view.

[/accordion]

[accordion heading="To maximize Remote Flight Deck (browser) video feed"]

  1. Keep your drone and controller updated to the latest software release. Visit How to update Skydio X10 for more information.

  2. Turn on Low Data Mode in situations in which lost connections are frequently occurring

[/accordion]
