The lights provide information about Skydio X10 status, orientation, and heading while on the ground and in flight. The lights are intended to communicate information and are not meant for illumination.

Configuring Light Settings

Skydio X10 navigation lights (RGB) are enabled by default. To disable these lights, or enable strobe or infrared lights, navigate to the Lighting menu under Global Settings.

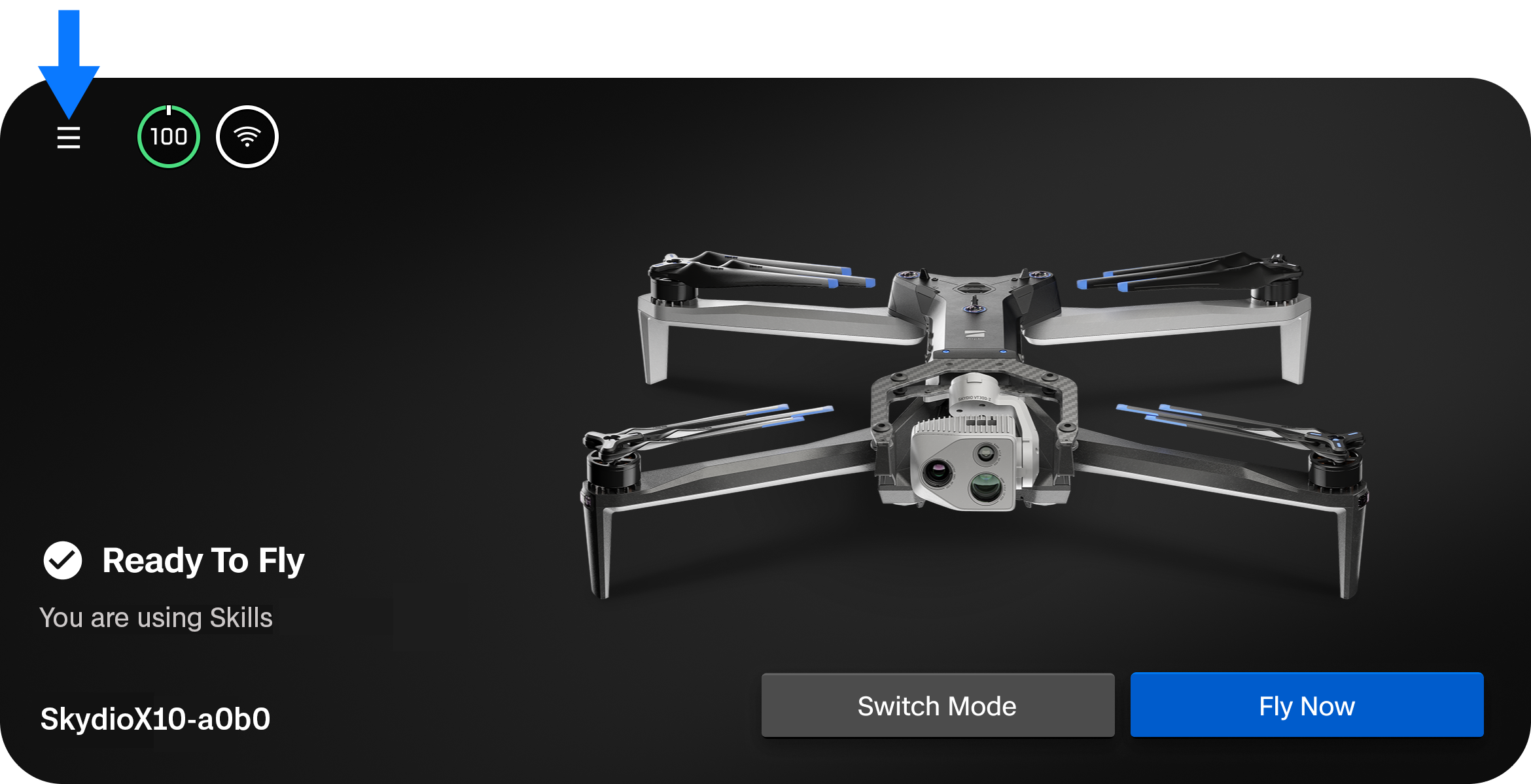

Step 1 - Select the Global Settings menu CS_App3_media_UI_gate_screen_anno.png

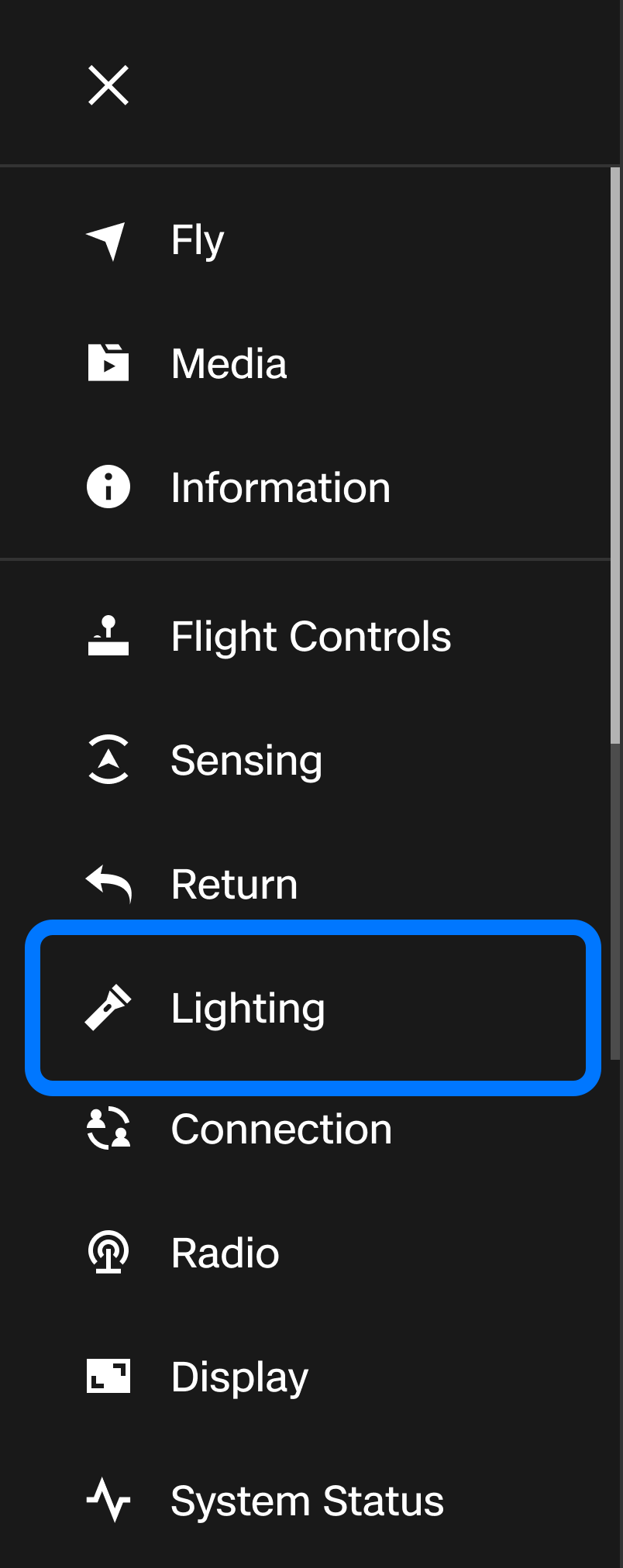

Step 2 - Select Lighting CS_X10_media_UI_global_settings_lighting.png

Step 3 - Toggle RGB

RGB lights are enabled by default.

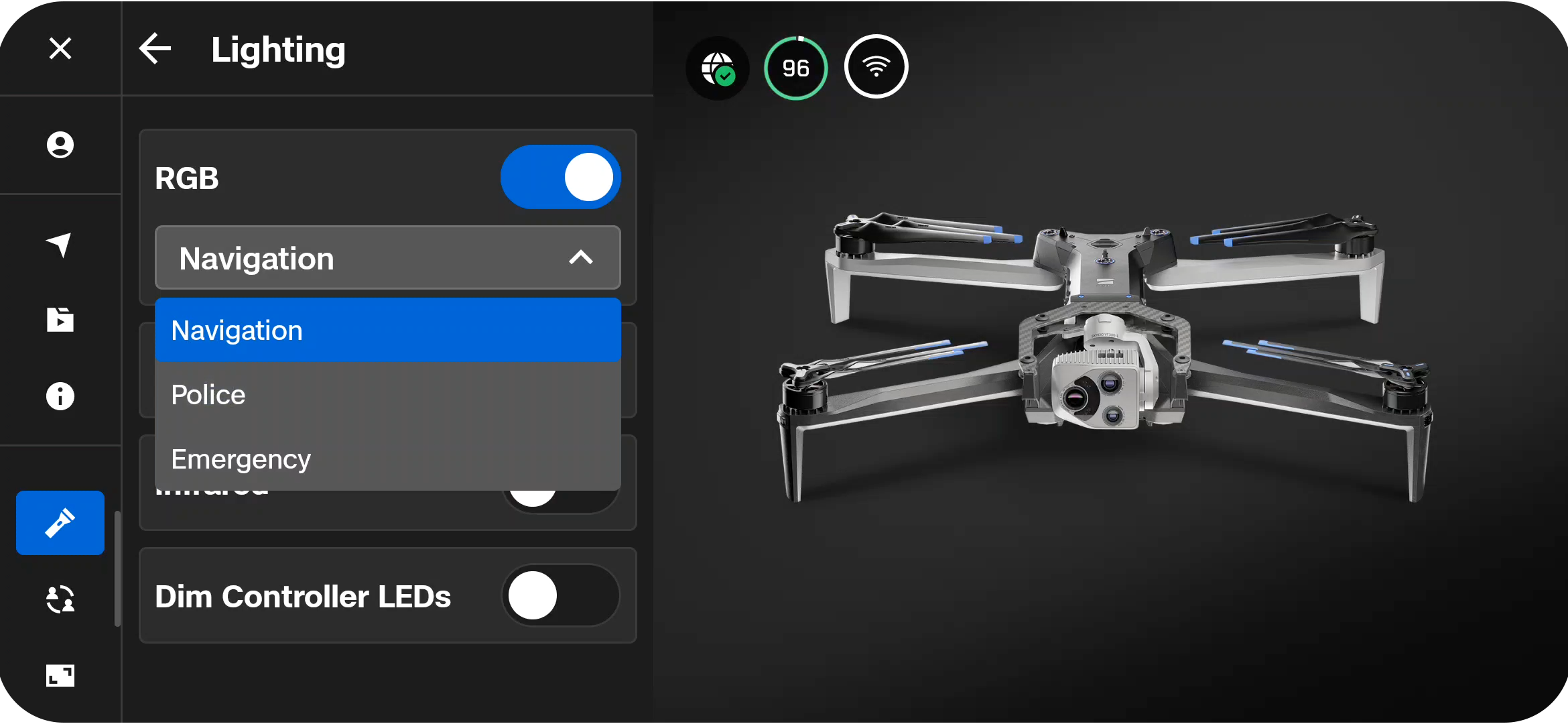

Three options will appear in the drop-down menu:

    • Navigation (default)
    • Police
    • Emergency

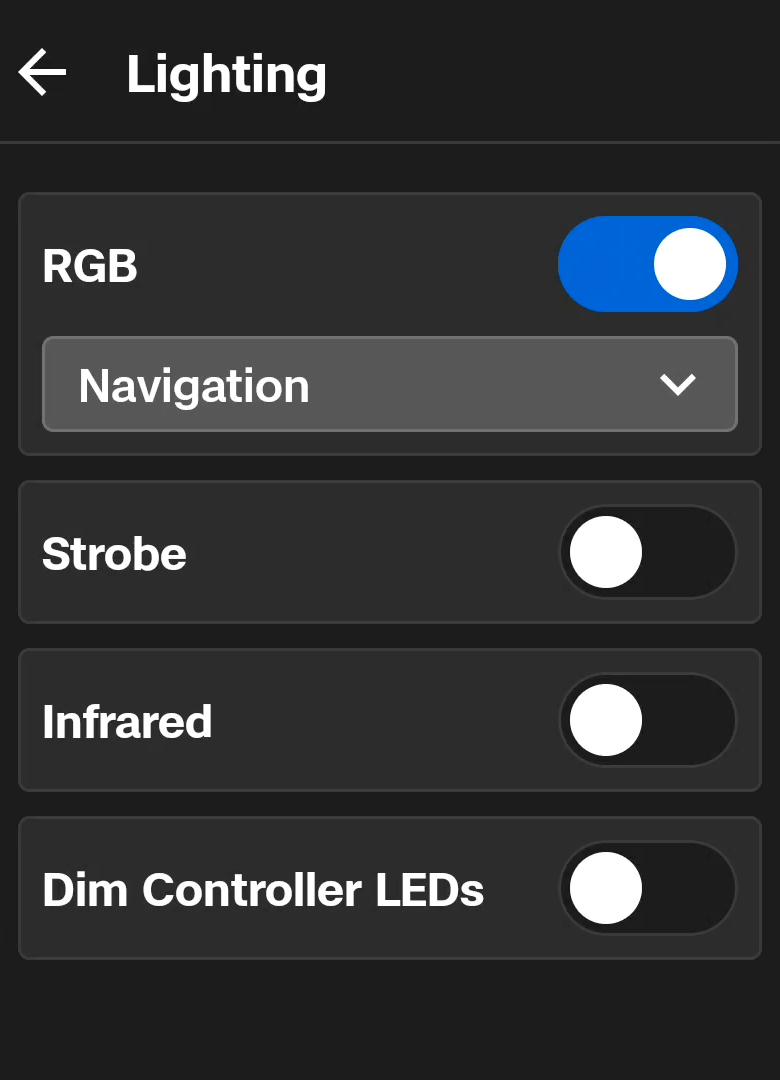

Navigation (default)

    • Red - two in front (framing camera)
    • Green - two in the rear
    • Blue - all lights during initialization

Disabled

    • Lights will be blue during the initial boot sequence and will turn off when the drone is ready to fly



Public Safety Lights

[caution] This Public Safety Lights option is only for strict use by authorized users comprising public safety first responders and emergency personnel performing a public safety mission. When operating in airspace viewable to the public, unauthorized users must refrain from using these police or emergency lights. Failure to comply may result in violations of local laws, regulations and ordinations and could subject the non-compliant user to civil or criminal penalties, fines, or other legal consequences. [/caution]

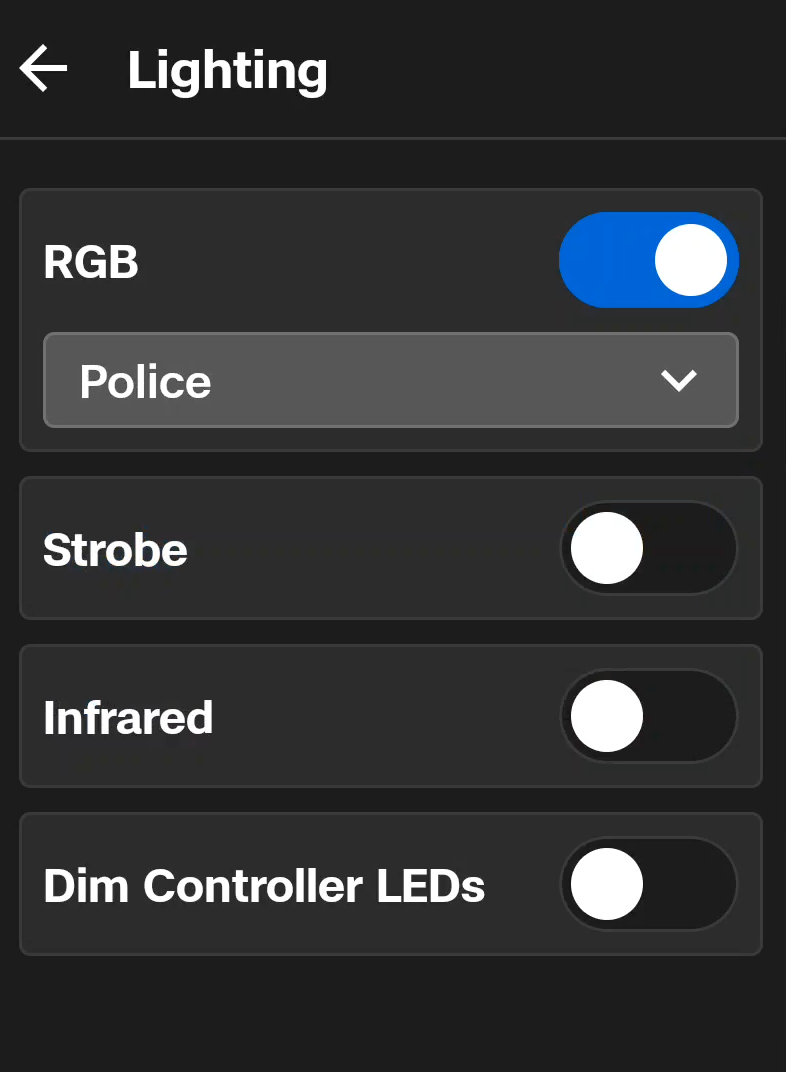

Police

When enabled, the front and back RGB lights on the drone will flash red and blue and alternate colors between the right and left arms.

    • Red: Front left, back right
    • Blue: Front right, back left

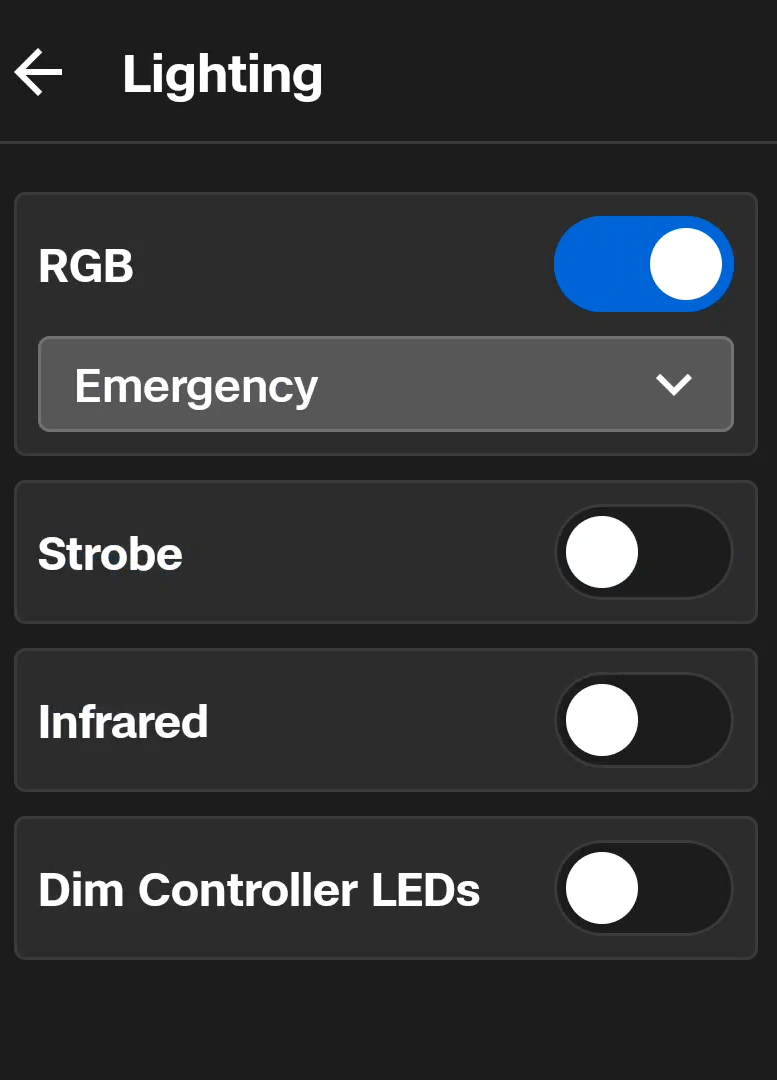

Emergency

When enabled, the front and back RGB lights on the drone will flash red and white and alternate colors between the right and left arms.

  • Red: Front left, back right
  • White: Front right, back left




Police


Emergency

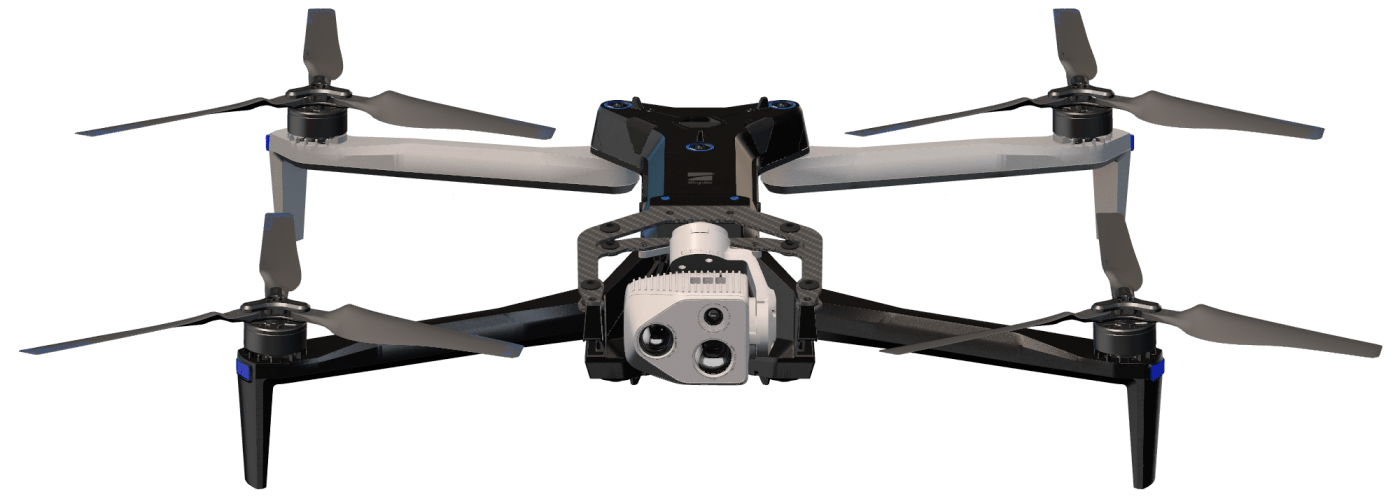

Skydio X10 Light Behavior

[info] Click on the image of the drone to expand the image/gif. [/info]

Function

Color and Pattern

Initial boot sequence

Blue radial blinking




Grounded not connected to a controller

Blue breathing




Grounded connected to a controller

Blue solid




Launching

Blue blinking




Inflight front orientation

Red solid




Inflight rear orientation

Green solid




Inflight obstacle avoidance reduced or off

Yellow solid




Returning not connected to a controller

Yellow blinking




Landing obstacle avoidance on

Blue blinking




Landing obstacle avoidance off



Obstacle Avoidance is enabled until X10 is ~10 ft (3 m) above the ground. At the 10 ft (3 m) threshold X10 will:

    • briefly pause
    • turn off obstacle avoidance
    • continue to land (lights will flash yellow)

Yellow blinking




Emergency landing obstacle avoidance disabled

Red blinking




Error occurred during the software update

    • wait 10-20 minutes, and then restart the drone if the error state persists.

Blue blinking on opposing arms




Software Updates

Update Status

Color and Pattern
Initializing X10_GREEN_SOLID.gif

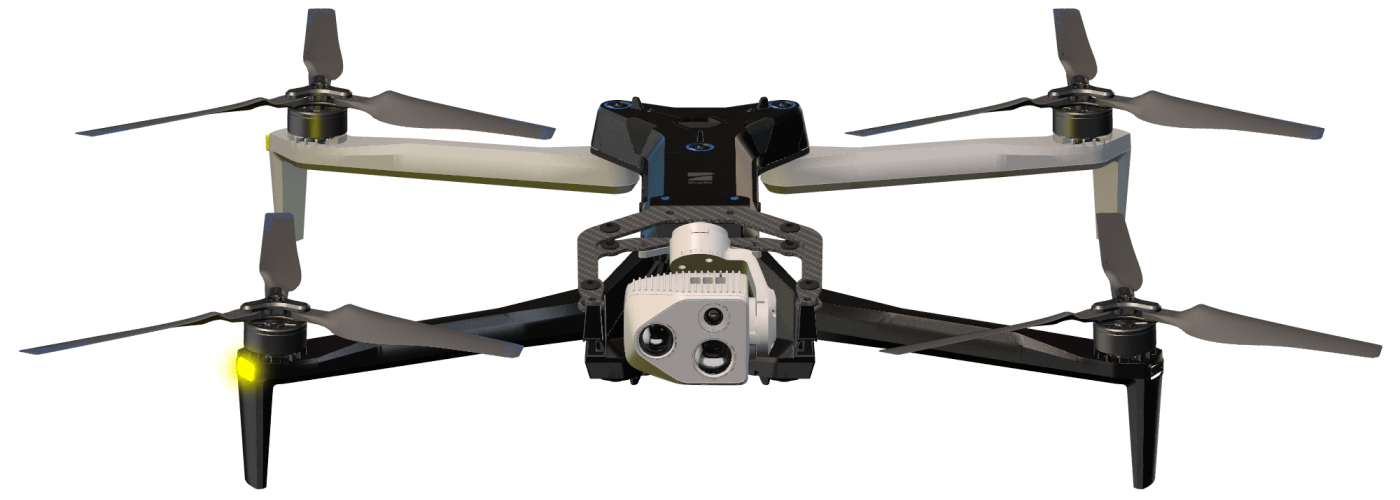

0-25% X10_YELLOW_BLINKING_0_TO_25_PERCENT_FFFFFF.gif
25% - 50% X10_YELLOW_BLINKING_25_TO_50_PERCENT_FFFFFF.gif
50% - 75% X10_YELLOW_BLINKING_50_TO_75_PERCENT_FFFFFF.gif
75% - 100% X10_YELLOW_BLINKING_75_TO_100_PERCENT_FFFFFF.gif
Complete X10_YELLOW_SOLID_FFFFFF.gif
Error X10_RED_BLINKING_F8F8F8.gif
  •

Media Sync

If you purchased and set up Media Sync (additional license required), your Skydio X10 will begin syncing media when connected to power.

Function

Color and Pattern

Media Sync triggered

Blue changes to green
(this will happen once, then the lights will stay green)


Searching for a wireless network and connecting to Skydio Cloud (this should take 2-30 seconds)

Green breathing pattern




Connected to a wireless network

Green solid




Media is uploading



[note] If the drone is connected to an Ethernet cable instead of a power cable, the drone will upload media to the cloud but the lights will not change to green. Visit the Fleet page in Skydio cloud to confirm that media is uploading. [/note]

Green chasing pattern




Media sync complete

Green solid
