Getting started with the X10 spotlight attachment

Published: Updated:

  1. Skydio
  2. Skydio X10
  3. Skydio X10 Attachments

The Skydio X10 spotlight attachment is a powerful tool designed to shine light over a targeted area to focus on specific points of interest when flying at night or in low-light conditions.

You can manually pivot your Spotlight to a wide range of angles to accommodate various use cases.

Safety

[warning]

  • After prolonged use of the spotlight attachment, it may be hot to the touch and could burn your hand. After landing, wait for your attachment to cool down before handling.
  • Do not stare directly into the spotlight at any distance range for any period of time as it may cause serious eye injuries.
  • When in flight, the spotlight can create a fire hazard by burning objects that are closer than a few inches away. Do not point the spotlight at any nearby objects.

[/warning]

How to install your spotlight attachment

[note] The drone may be powered on or powered off while installing the spotlight. [/note]



Step 1 - Choose the side of the drone on which you want to install the spotlight

  • The spotlight attachment can be installed on either the left or right attachment bay

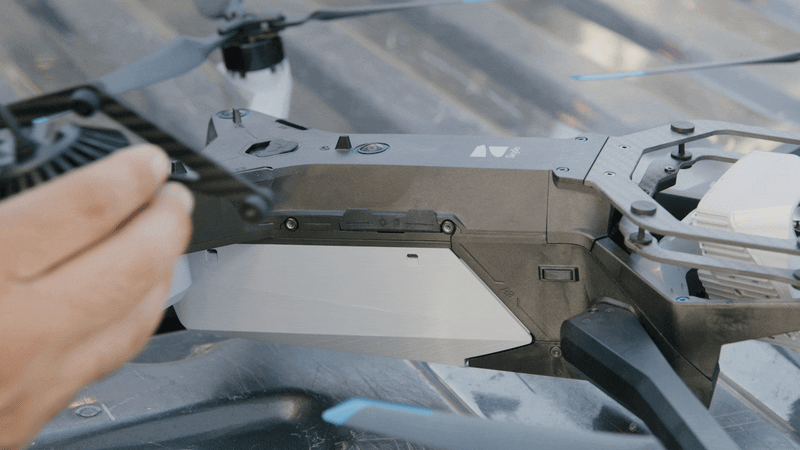

Step 2 - Align the thumb screws on the spotlight to the threads on the side of the drone

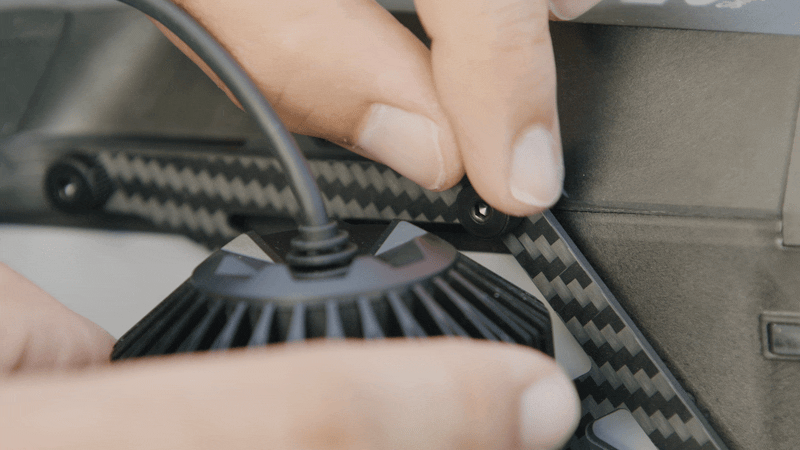

Step 3 - Twist the thumb screws clockwise to lock the attachment in place. Hand tighten until you meet resistance

[note] Attachment should be snug but not overtightened. Skydio officially recommends 28 cNm of torque. [/note]

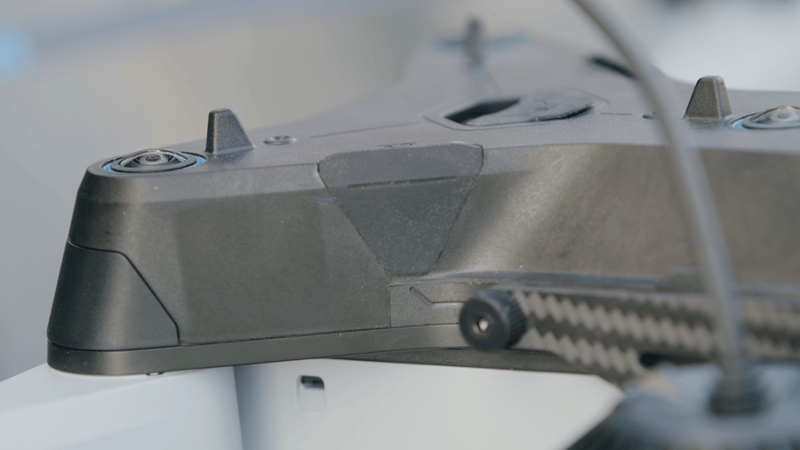

Step 4 - Open the rubber seal on the USB-C attachment port and twist it downward

  • A3 or A4, whichever is on the side of the drone that the spotlight is attached to

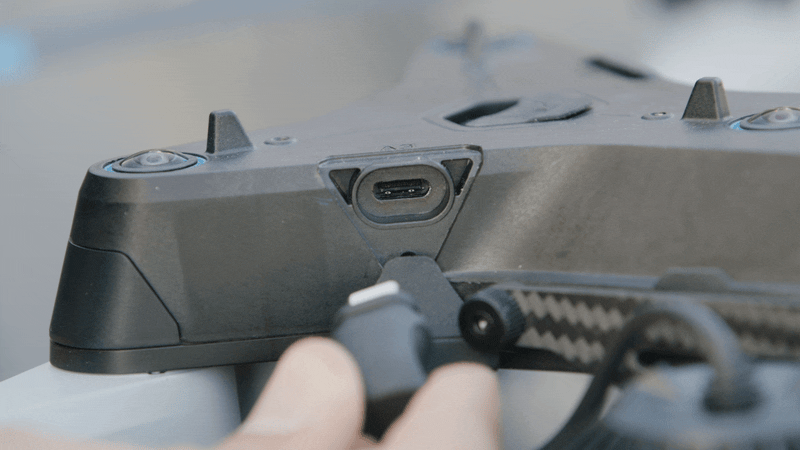

Step 5 - Plug in the spotlight cable with the cable pointing downward
[warning] Before launching, ensure the USB-C cable is fully seated in the port. A loose connection may come free during flight, potentially resulting in a crash or serious bodily injury. [/warning]

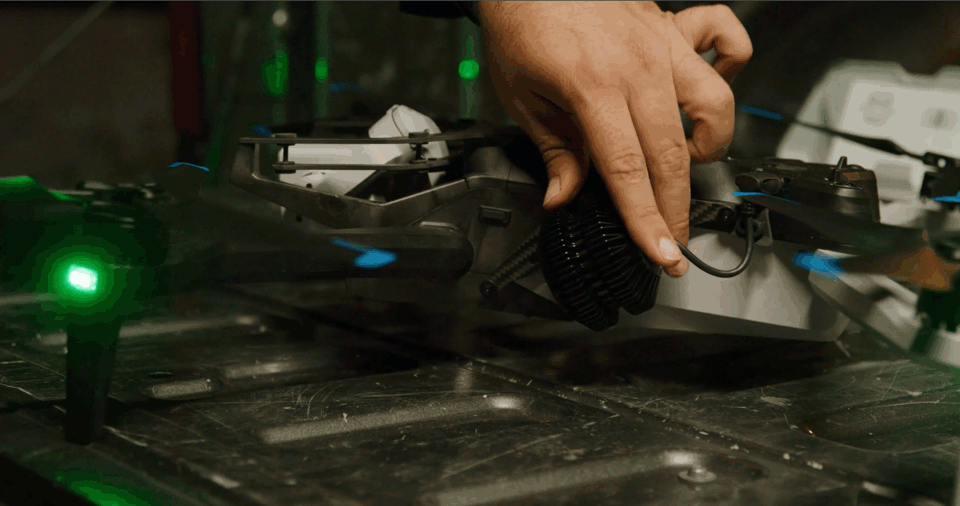

Step 6 - Set the angle of your spotlight to suit the type of mission you will be flying

  • Manually pivot the spotlight to your desired angle
  • If you’re not sure what angle is best for your mission, start with a 45-60° forward-facing angle



How to use your spotlight attachment

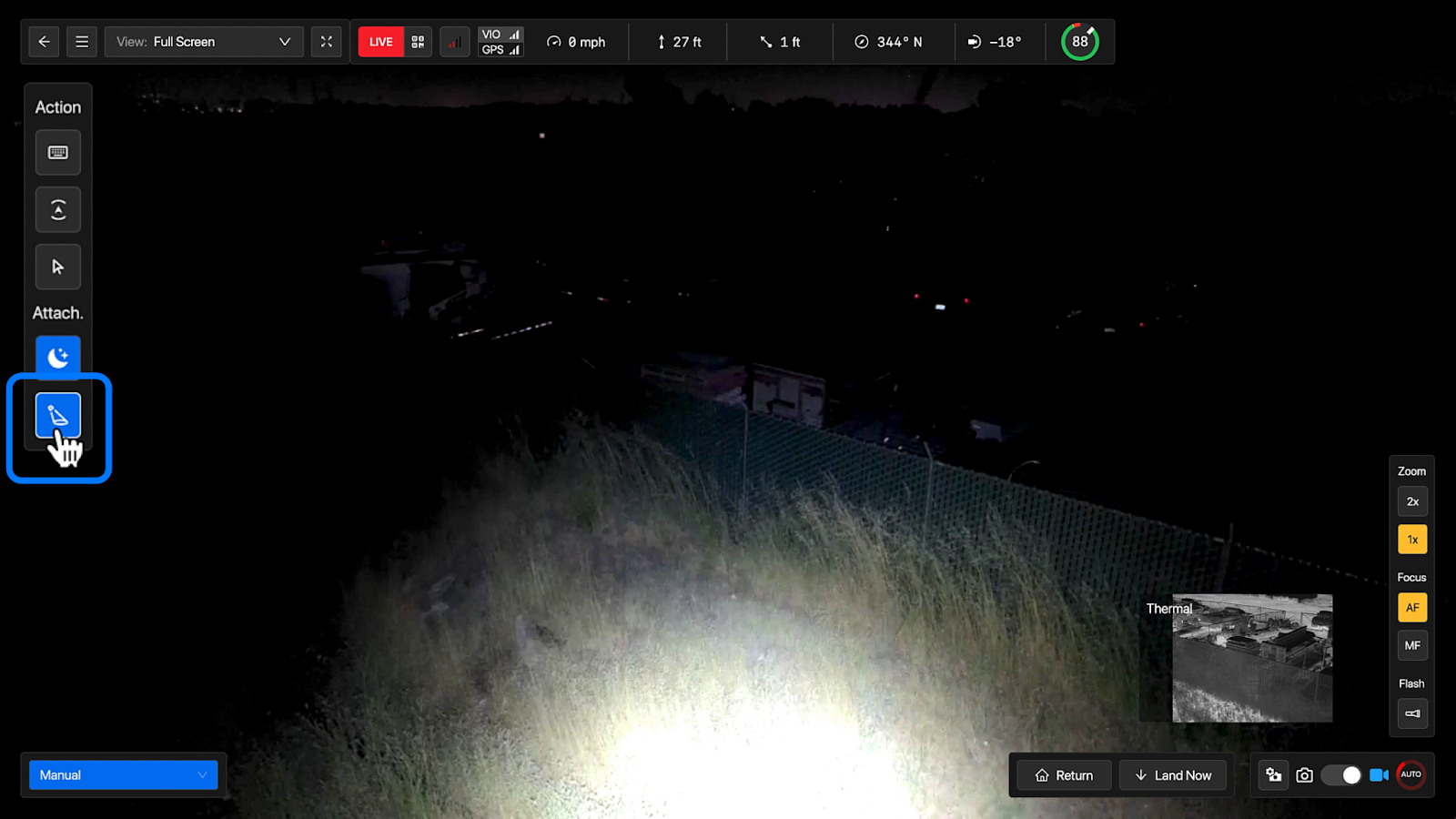

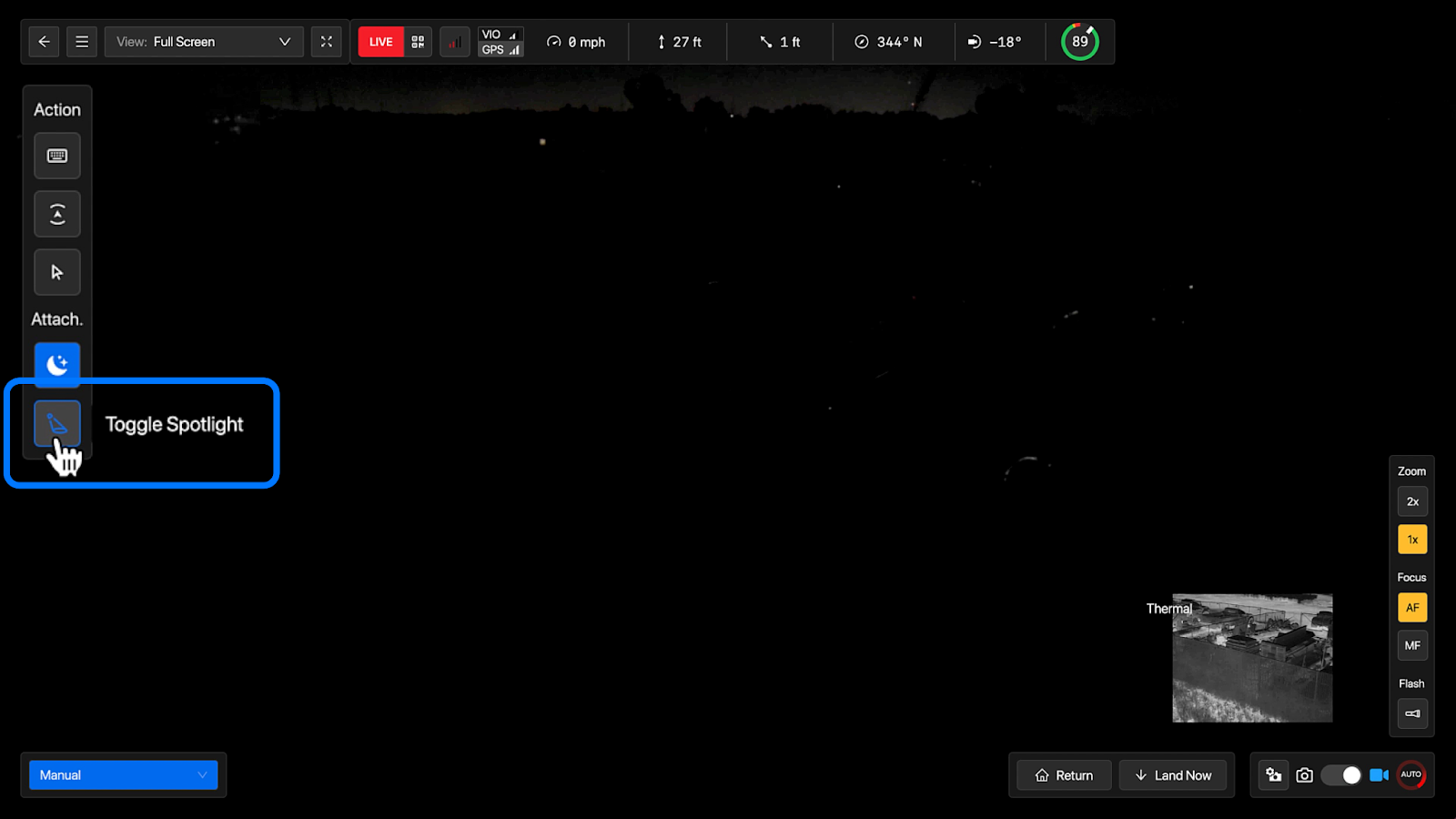

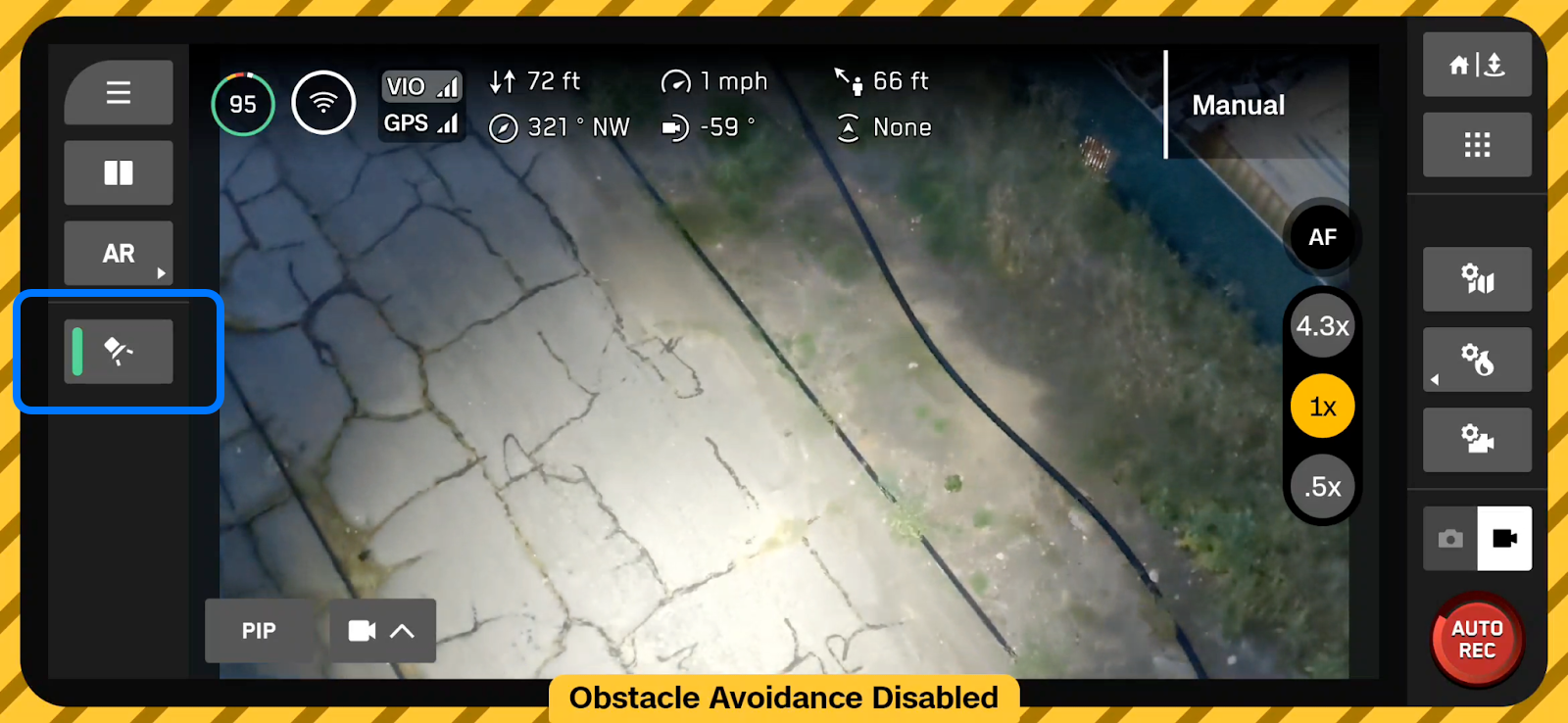

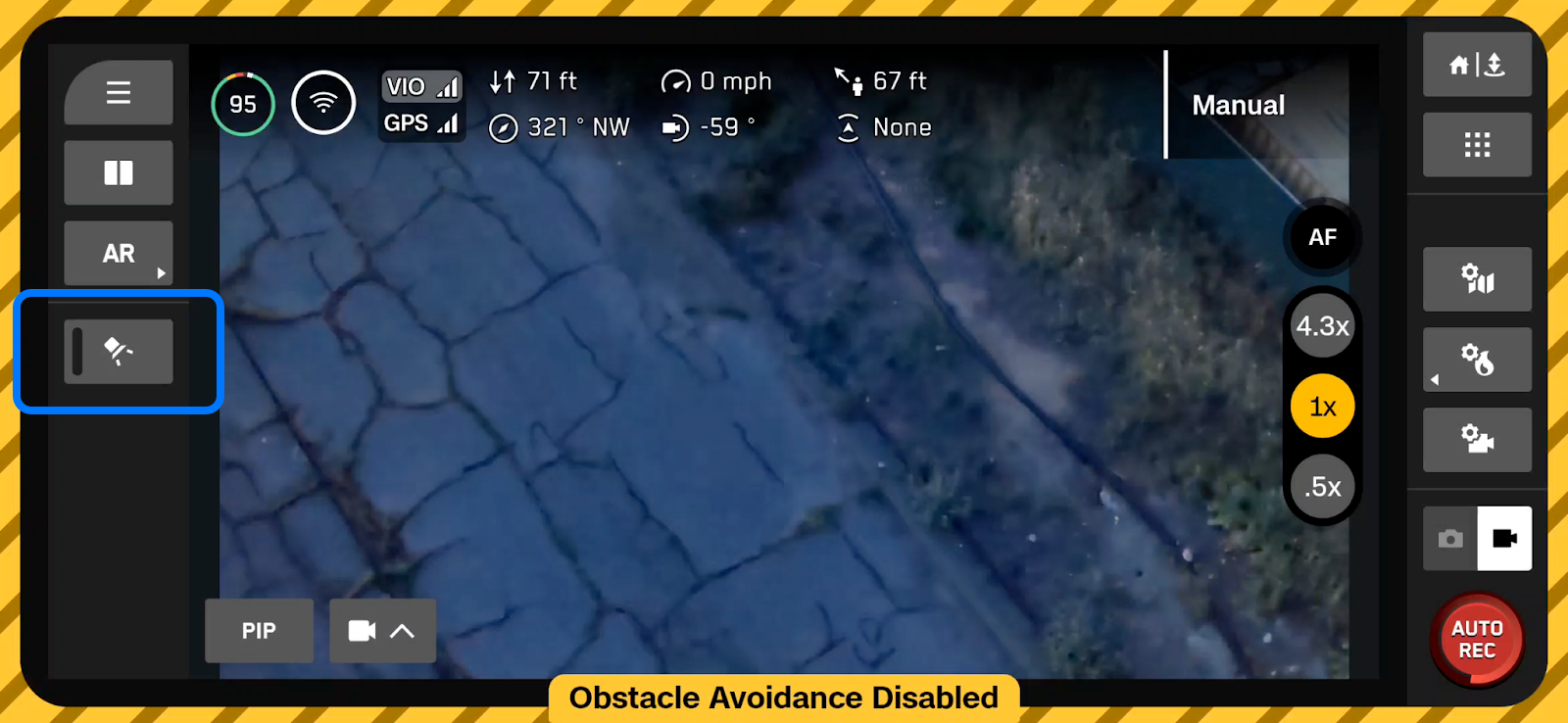

Once your spotlight attachment is installed, you will see a new spotlight Quick Action icon on the left side of your screen. Select this icon to turn the spotlight on or off in flight.

If you have Remote Flight Deck, you will also be able to control your spotlight when operating from a browser.

FAQ

[accordion heading="Can the X10 spotlight attachment operate in precipitation?"]

Yes, the X10 spotlight attachment is IP55 rated, along with Skydio X10.

[/accordion]

[accordion heading="Can I mount two spotlights to my drone?"]

No, dual spotlight use is not supported at this time.

[/accordion]

[accordion heading="Can I use NightSense with Spotlight?"]

Yes! Skydio X10 can support the spotlight attachment on one side along with either version of the NightSense attachment pair on the top and bottom installed at the same time.

[/accordion]

[accordion heading="Is the spotlight attachment covered under Skydio Care?"]

No. The X10 spotlight attachment is covered under the Skydio One (1) Year Limited Warranty which is separate from Skydio Care.

[/accordion]

[accordion heading="Does the X10 spotlight attachment impact overall battery life?"]

Yes, you will see a moderate reduction in battery life when using the spotlight attachment.

[/accordion]

[accordion heading="How far away can you recognize a person using the X10 spotlight attachment?"]

You can recognize a person at up to 500 feet (152 meters).

[/accordion]

[accordion heading="How bright is the spotlight?"]

The spotlight casts a broad light with 5500 lumens.

[/accordion]

[accordion heading="Are there any usage constraints?"]

Yes. Use caution and care when touching and/or handling the spotlight after prolonged usage to avoid serious burn risks and do not directly look at the light or engage in direct eye exposure with the light at any brightness level to avoid serious eye injury risks.

[/accordion]

Specifications

Dimensions 1.9" x 2.2" x 2.2"

Weight

 115.21 g / 0.25 lbs
Attachment location Left or right (not both)
Illumination 5500 lumens
Max distance to recognize a person 500 ft (152 m)
Lighting angle 13° FWHM / 30° FWTM
Max input power 50 W
Ingress protection rating IP55
Operating temperature -4°F to 113°F (-20°C to 45°C)
Storage temperature -22°F to 176°F (-30°C to 80°C)
