Skydio Connect Fusion+ Attachment

The Skydio Connect Fusion+ Attachment accompanies the Fusion+ service subscription. The Fusion+ hardware consists of a side-mounted cellular attachment for X10 and X10 Gen 2 that adds an additional active cellular signal. It is required to enable Fusion+ multi-radio connectivity.

[note] The Connect Fusion+ Attachment is supported on Skydio X10 Gen 1 and Gen 2 Flight Systems with or without Skydio Connect 5G. Skydio X10D Flight Systems are not supported [/note]

For detailed installation steps and technical specifications, read the Skydio Connect Fusion+ Attachment Manual.

Quick Start

How to install the Fusion+ Attachment

Skydio Connect Fusion

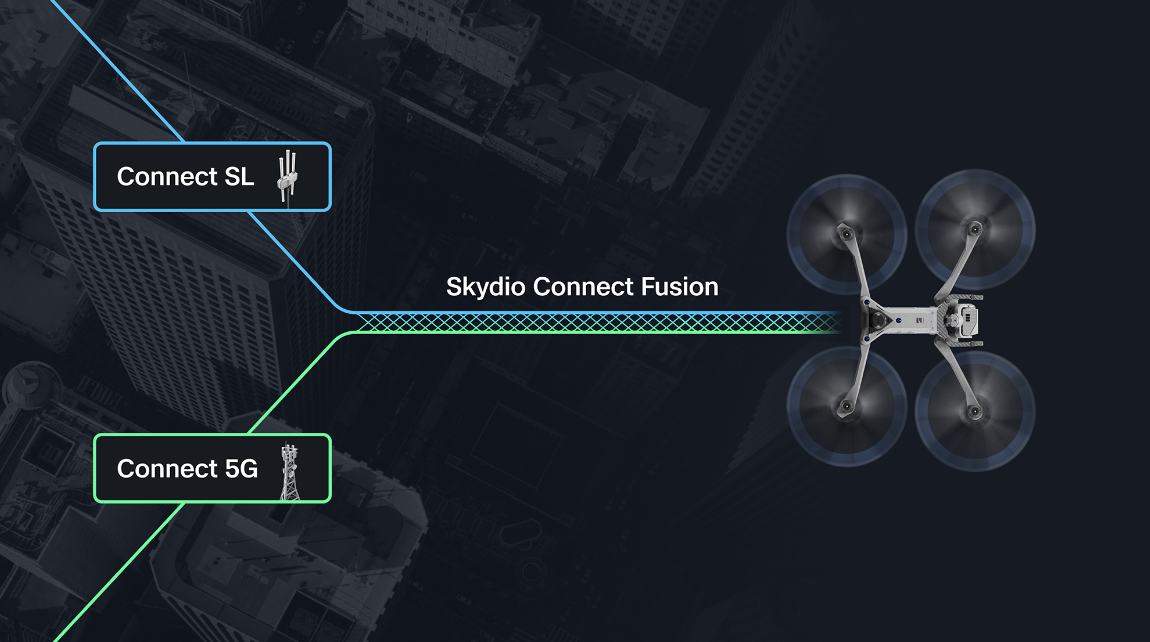

Skydio Connect Fusion is a feature that manages Connect SL and Connect 5G to maintain a reliable video and control link. When both SL and 5G are available, the system monitors link quality and uses a bonded connection to maintain stable connectivity.

Fusion is built into the flight system and does not require manual configuration. It ensures continuity of remote operations even in environments with fluctuating signal strength.

Skydio Connect Fusion+ Attachment

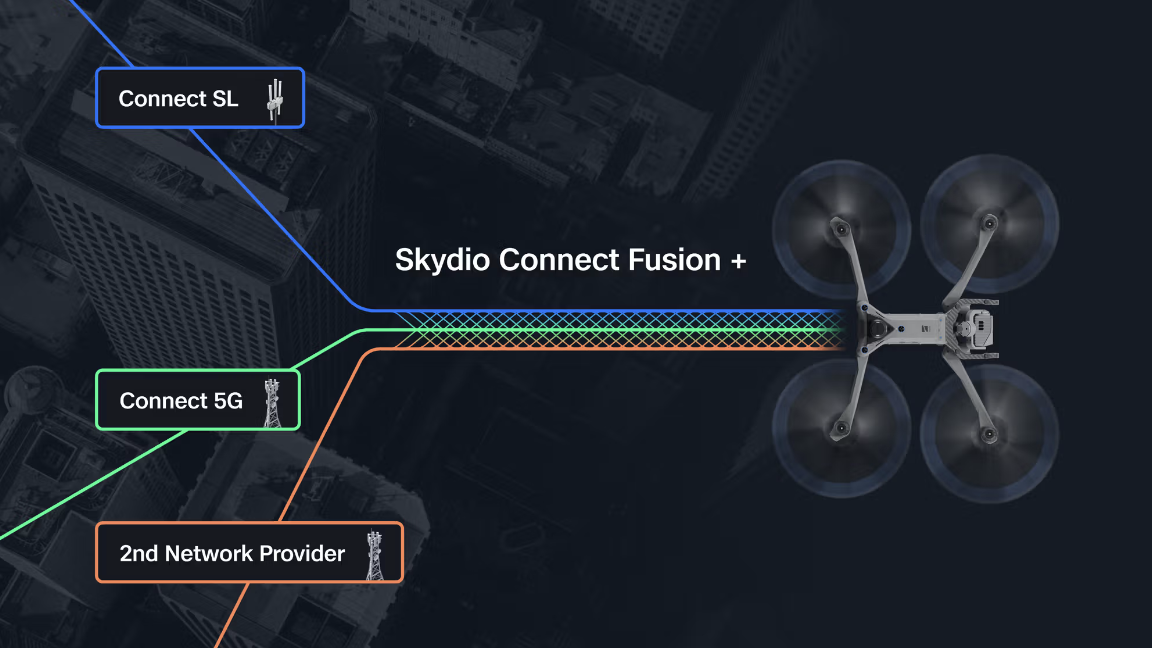

The Skydio Connect Fusion+ attachment is an active cellular radio that is designed for the X10 drone (both Gen 1 or Gen 2) to add a second cellular connection. This is useful for adding throughput for higher video quality and navigating through cellular “dead zones.” The attachment enables Skydio Fusion to use up to 3 radios: Connect SL, internal 5G, and the Fusion+ cellular link.

The Connect Fusion+ Attachment is IP55 rated and connects by default to the A3 Attachment Bay (right side of the drone). The attachment may also be configured to attach to the A4 Attachment Bay (left side of the drone).

Skydio Inc., A0633
