How to Use NightSense with Map Capture
Published: Updated:
The set of two NightSense attachments cast a light above and below your drone, illuminating the area and unlocking Skydio visual navigation and obstacle avoidance when flying at night and in low-light conditions.
For detailed getting started steps, such as how to install the attachment and available settings, read Getting Started with NightSense for Skydio X10.
Recommended Settings
For optimal image and photogrammetry reconstructions for nighttime mapping, we recommend the following settings:
|
NightSense attachment |
Visible Light, with the NightSense mode set to Auto (default) or On from the NightSense quick action |
|
Sensor |
Wide camera on VT300-L |
|
Resolution |
ΒΌ resolution |
|
Camera Mode |
Low Light |
|
Stop for Photo |
ON |
|
Gimbal Pitch Range |
Nadir Illumination from Vis NightSense will be highest directly below the drone |
Example Maps Using Recommended Settings
Streetlights, vehicle headlights, and tower lights are all factors that can affect the lighting conditions of a scene. The Visible NightSense attachment enhances illumination for data capture in dim or dark environments.
For optimal balance between image quality and scan efficiency, we recommend flying at an altitude 40 - 60 ft (12 - 18 m).
Higher altitudes can save time onsite
Lower altitudes may result in better image quality
|
Altitude and Desired Results |
Example Image |
Orthomosaic |
|

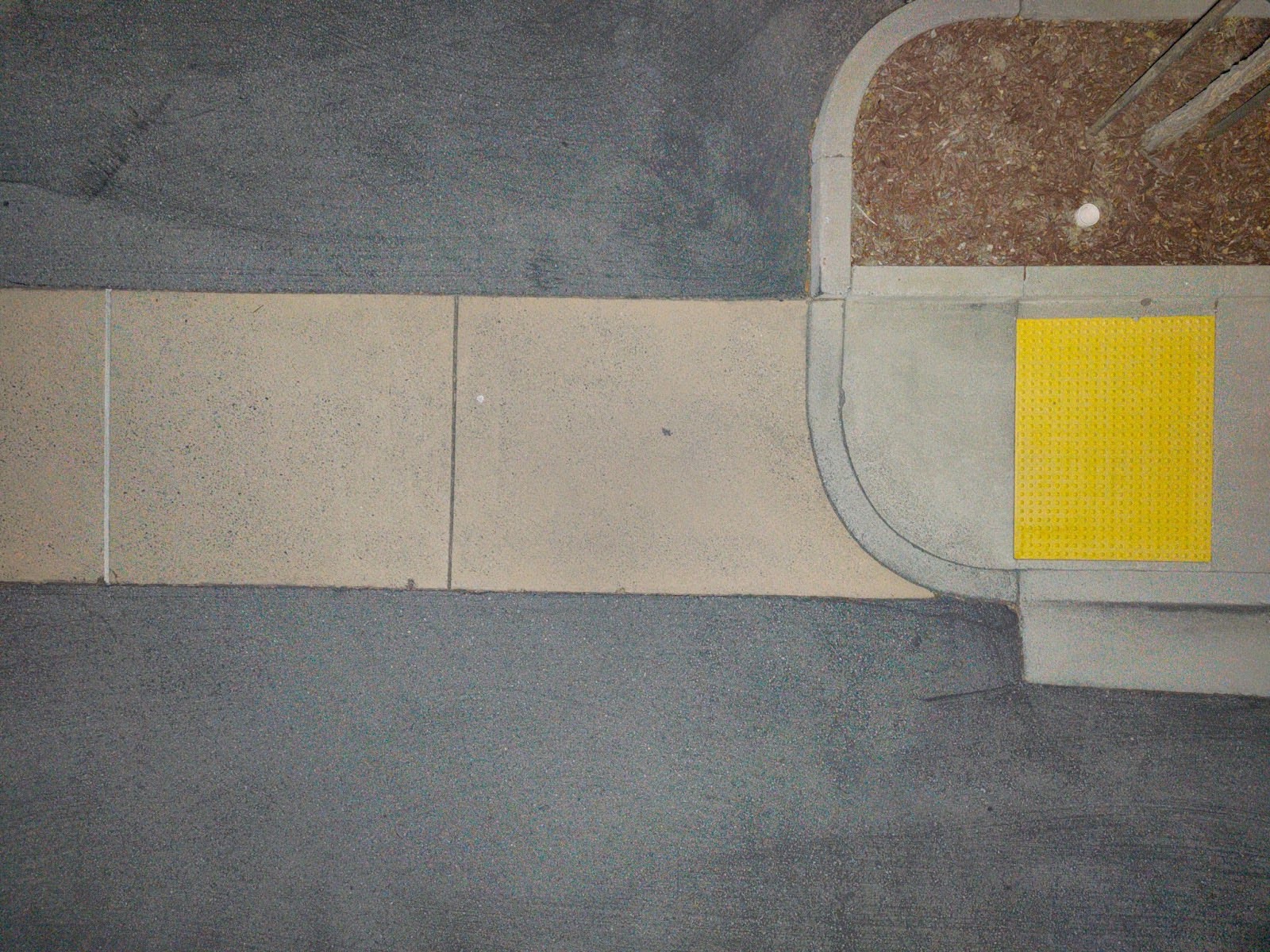

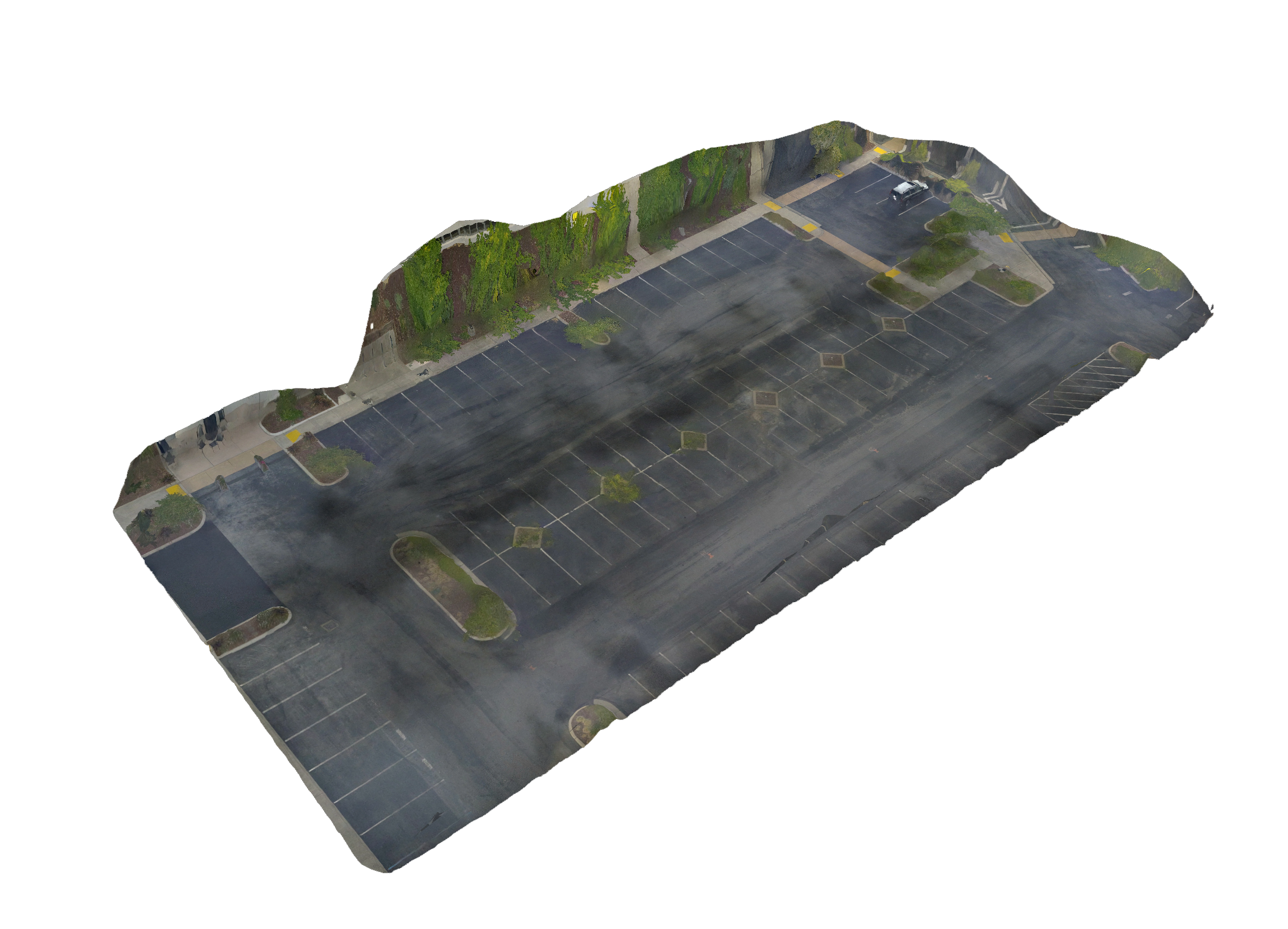

Best for image quality Altitude: 20 ft (6 m) |
|
|
|

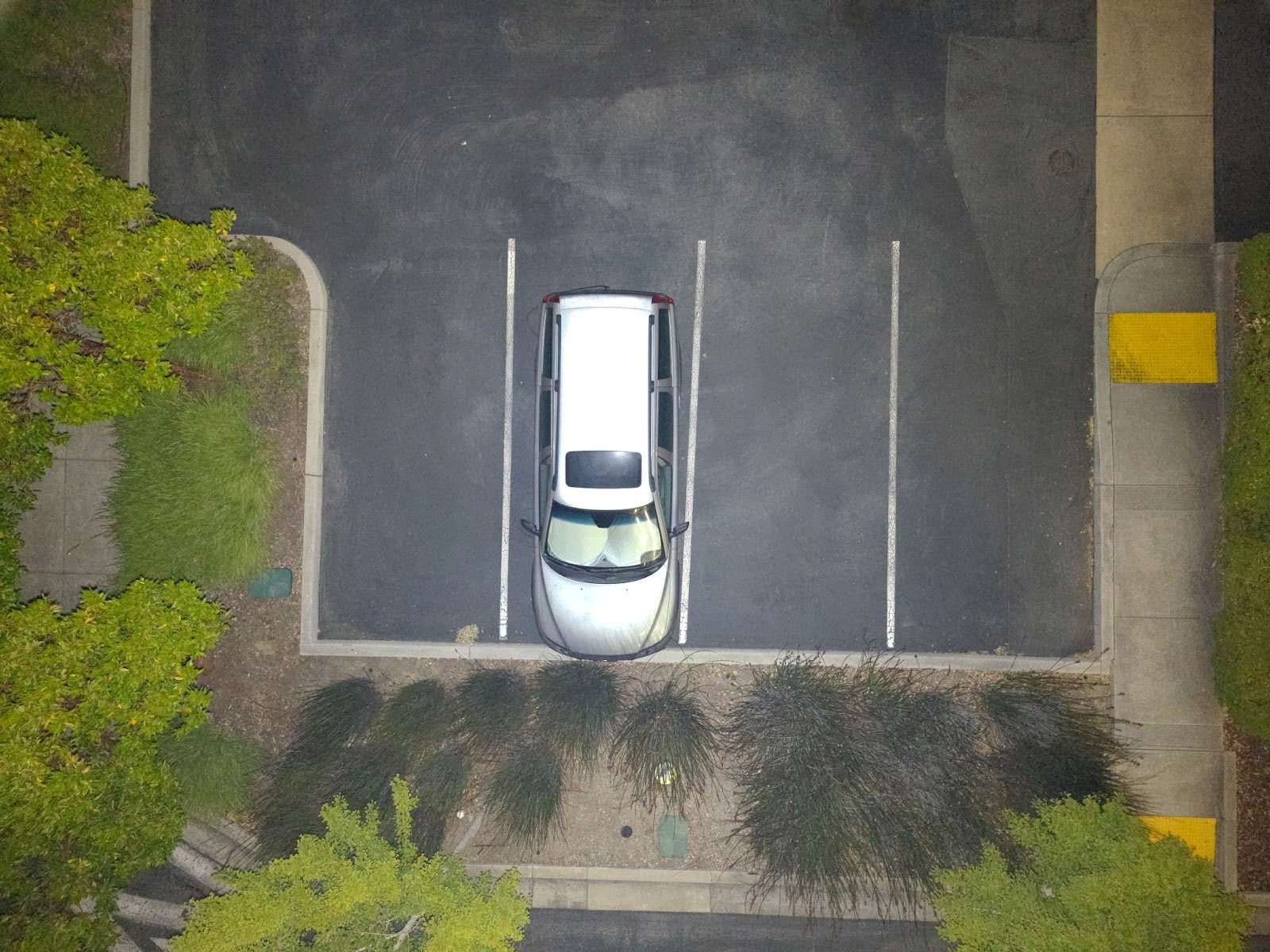

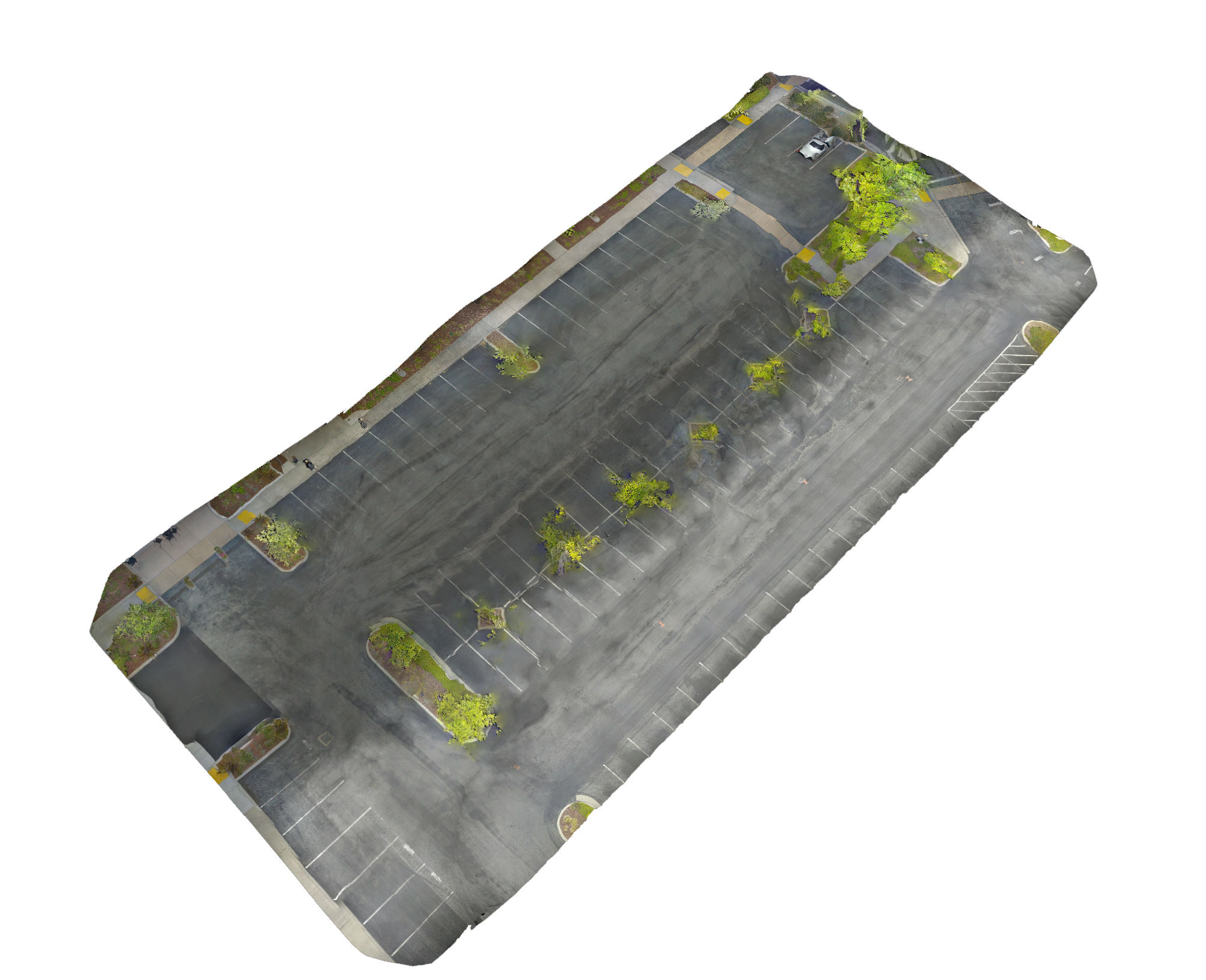

Optimal for image quality and efficiency Altitude: 40 ft (12 m) |
|
|
|

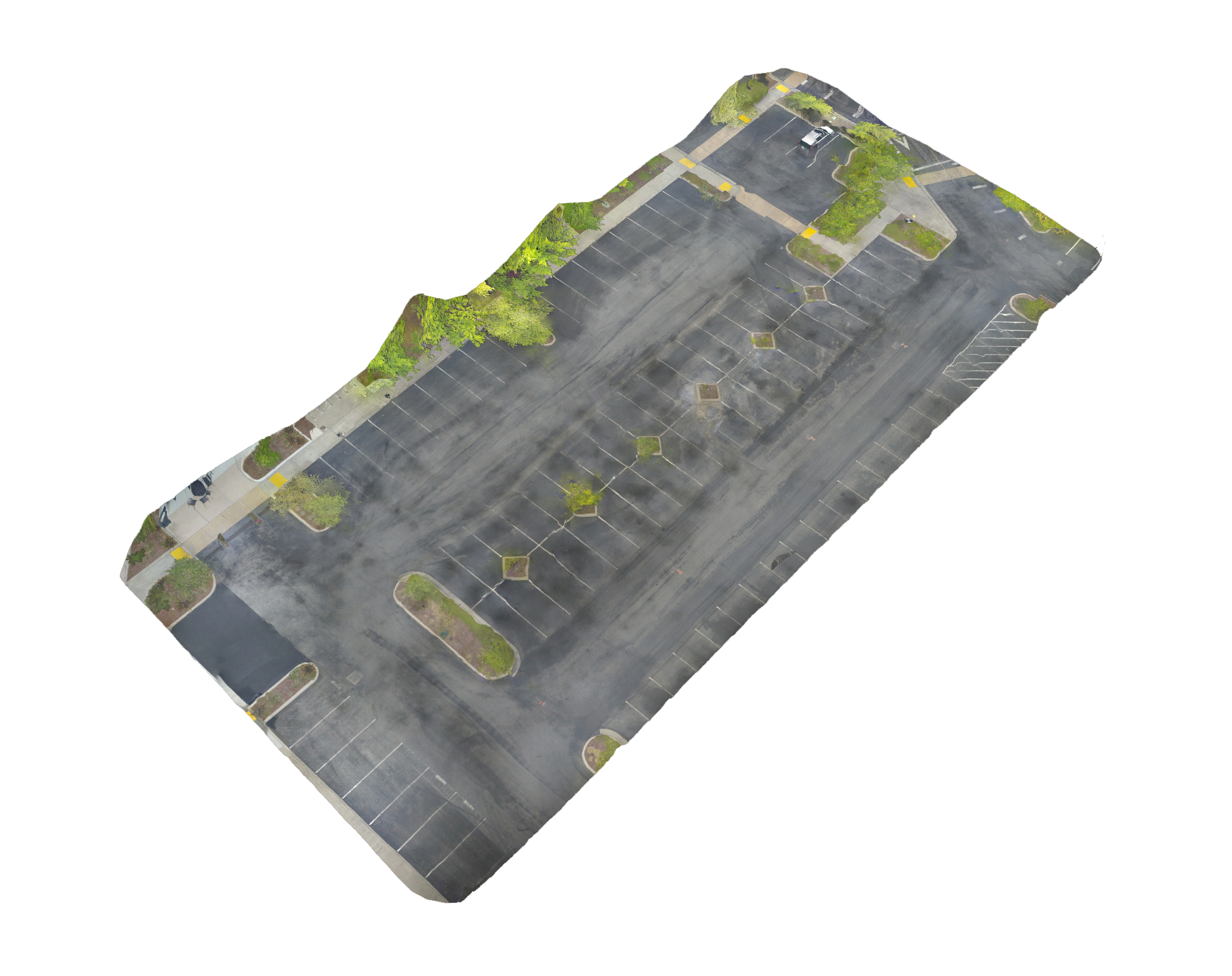

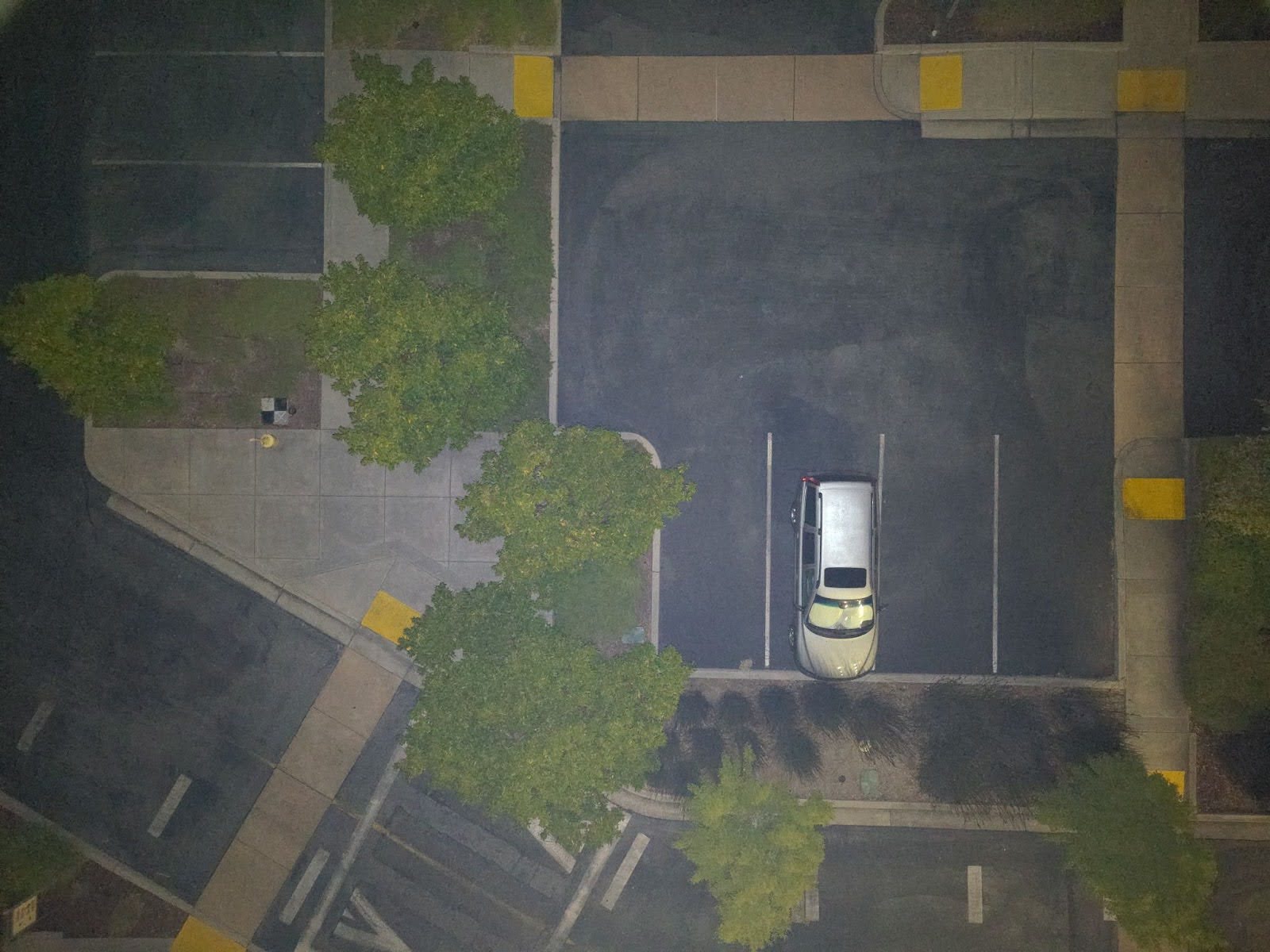

Optimal for image quality and efficiency Altitude: 60 ft (18 m) |
|
|
|

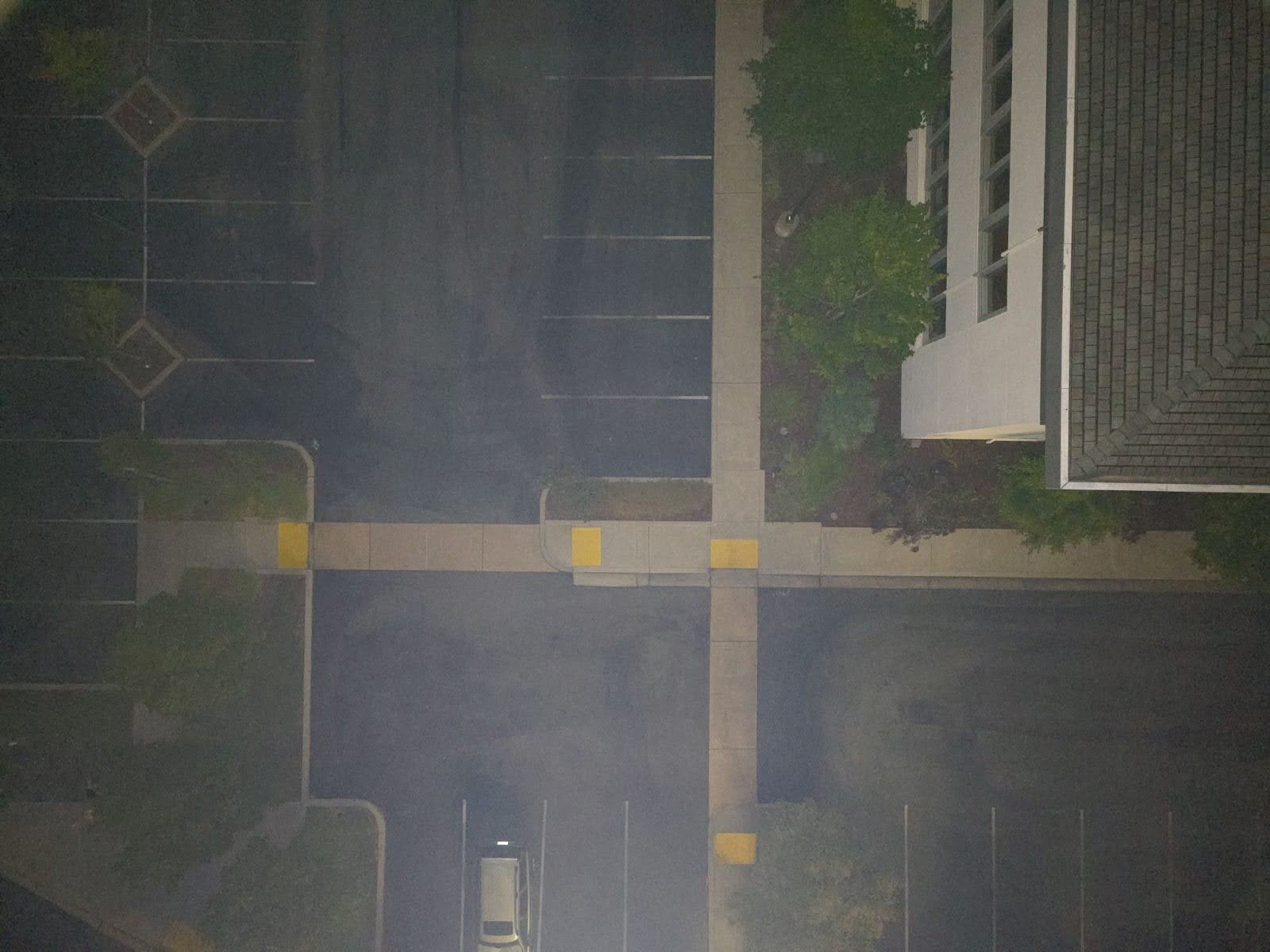

Best for efficiency Altitude: 80 ft (24 m) |
|
|
FAQ
[accordion heading="Will the flashlight on VT300-L provide sufficient illumination for nighttime mapping?"]
The flashlight of the VT300-L sensor package provides effective illumination up to 10 ft (3 m) and is not expected to be useful for most nighttime mapping operations conducted above this height.
[/accordion]
[accordion heading="Will the spotlight attachments provide sufficient illumination for nighttime mapping?"]
Spotlight is not recommended for nighttime mapping. Although the Spotlight casts light with 5500 lumens, its position on the drone and the narrow FOV may result in a bright spot on the image, compromising the image and reconstruction quality.
[/accordion]
[accordion heading="Does Onboard Modeling work with images captured at night?"]
Yes, you still have the ability to process onboard maps when scanning at night.
[/accordion]
