How to export flight logs from Skydio X10D

To export vehicle logs:

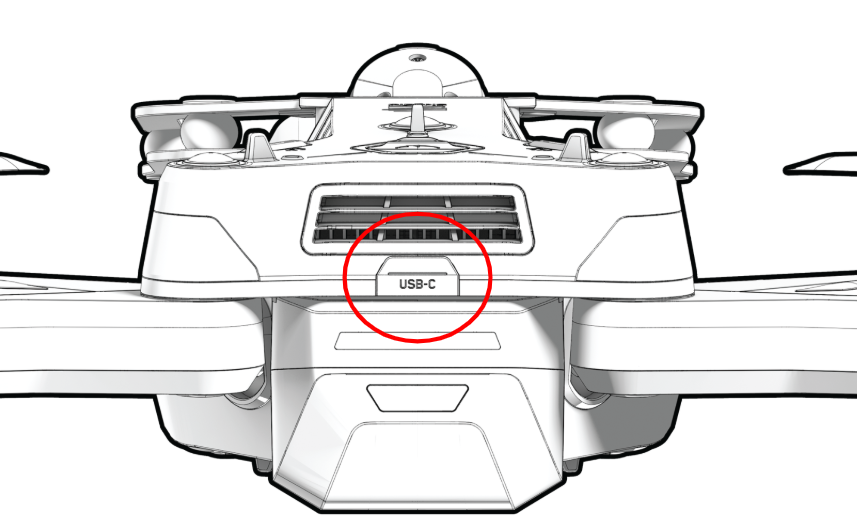

Step 2 - Insert a USB-C memory drive into the rear port on the X10D vehicle

• Ensure a USB-C memory drive is formatted to EXFAT

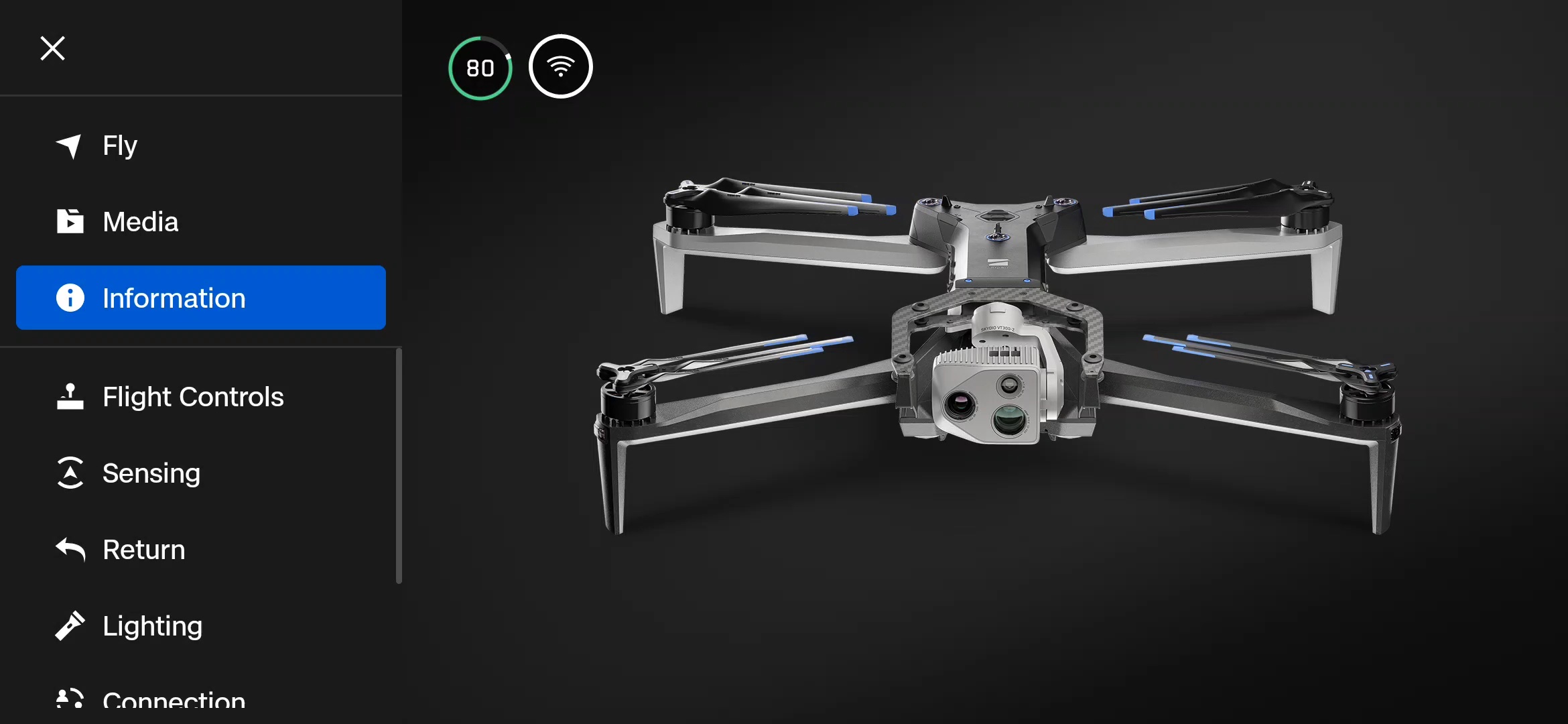

Step 2 - Navigate to Global Settings > Information menu > Vehicle > Export Vehicle Logs to USB-C

• The drone lights will breathe yellow to indicate an active log transfer
• A Log Export message will display the percentage of export

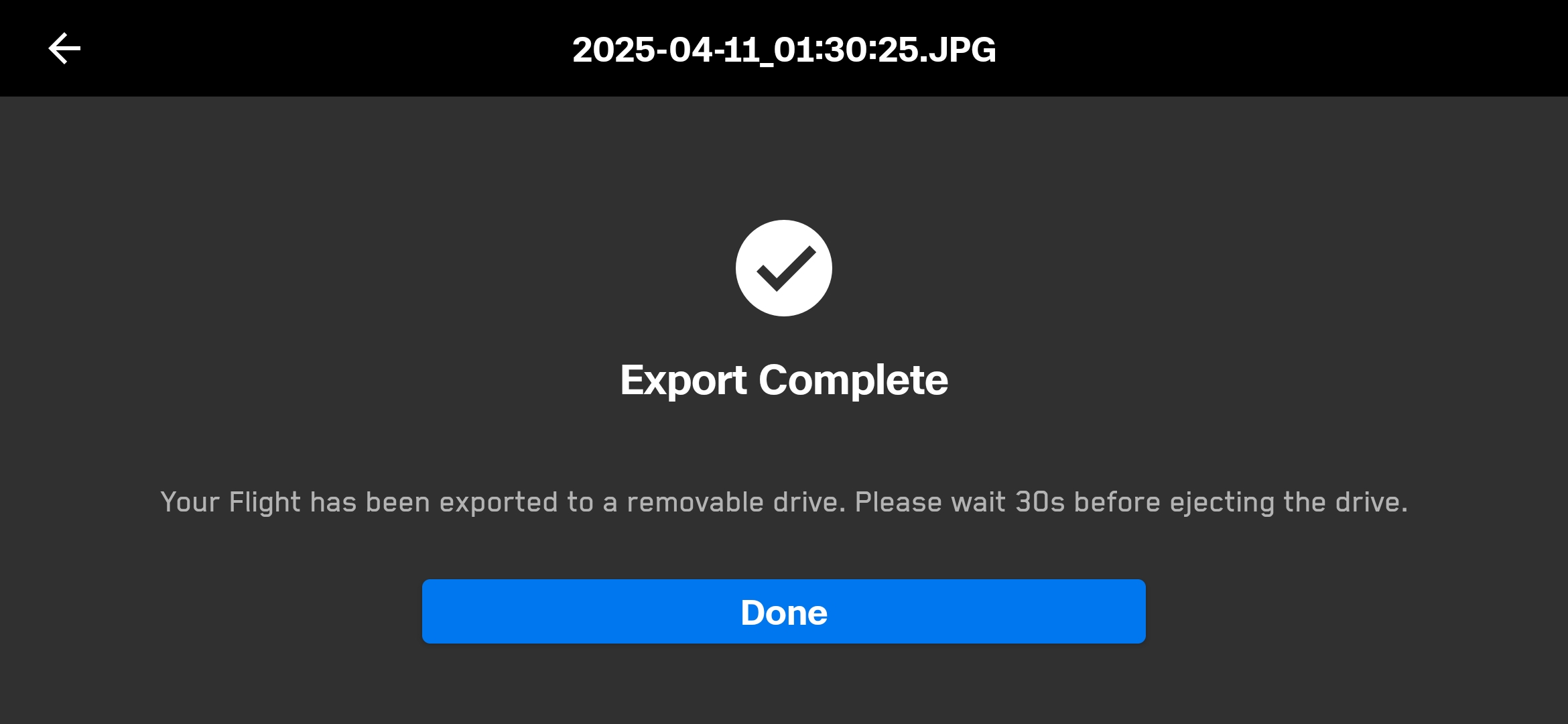

• When export is complete, the message Export Complete will display

Step 3 - Remove the drive from the drone and insert it into a device to access the log files for submission to Skydio Support.

To export the controller or single flight logs:

Step 1 - Power on and pair the drone and controller

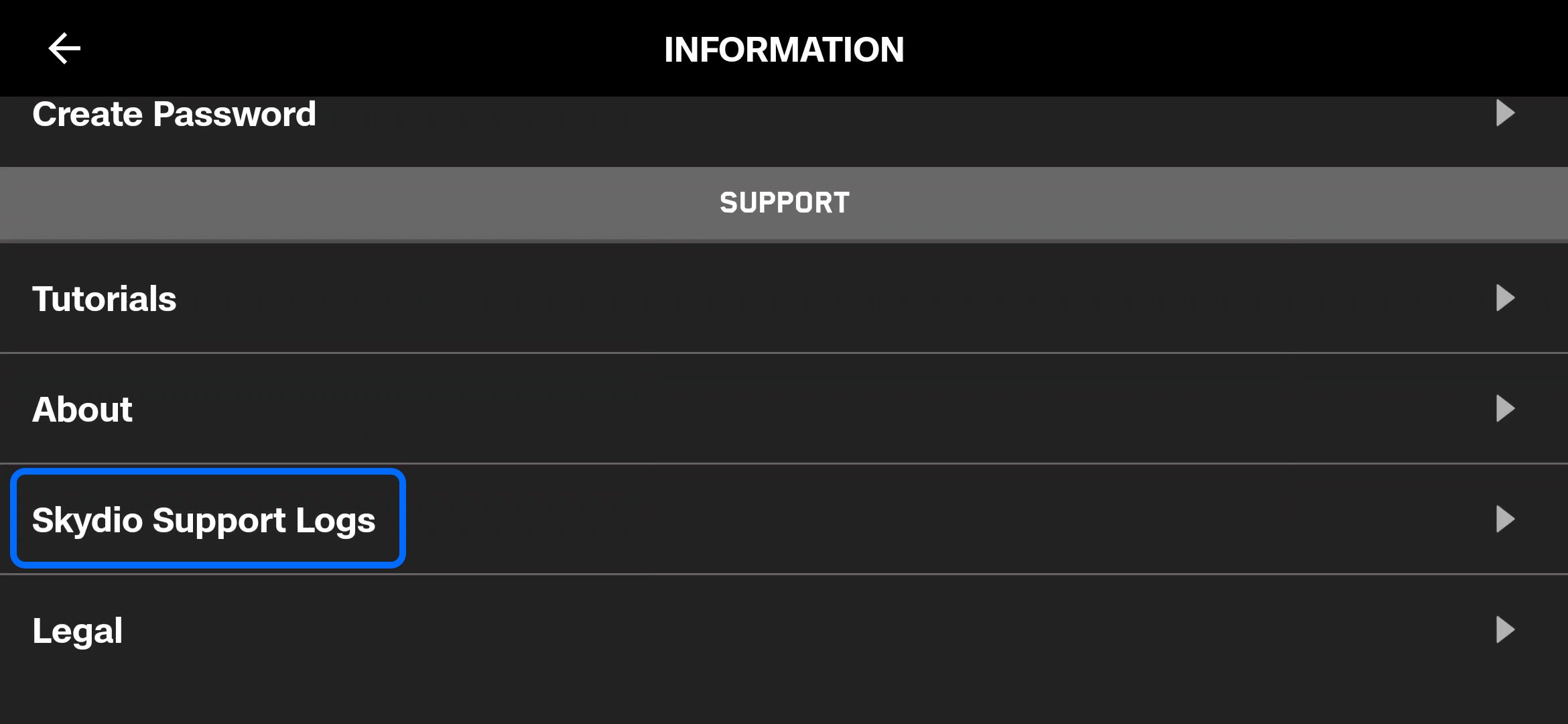

Step 2 - Select Global Settings > Information > Skydio Support Logs

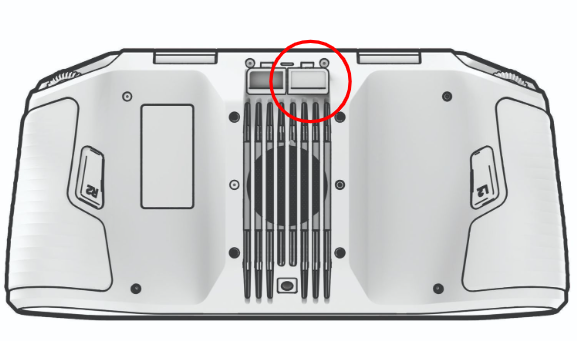

Step 3 - Insert a USB-C memory drive into the port on the X10D controller

• Ensure a USB-C memory drive is formatted to EXFAT

Step 4 - Select Export to Drive

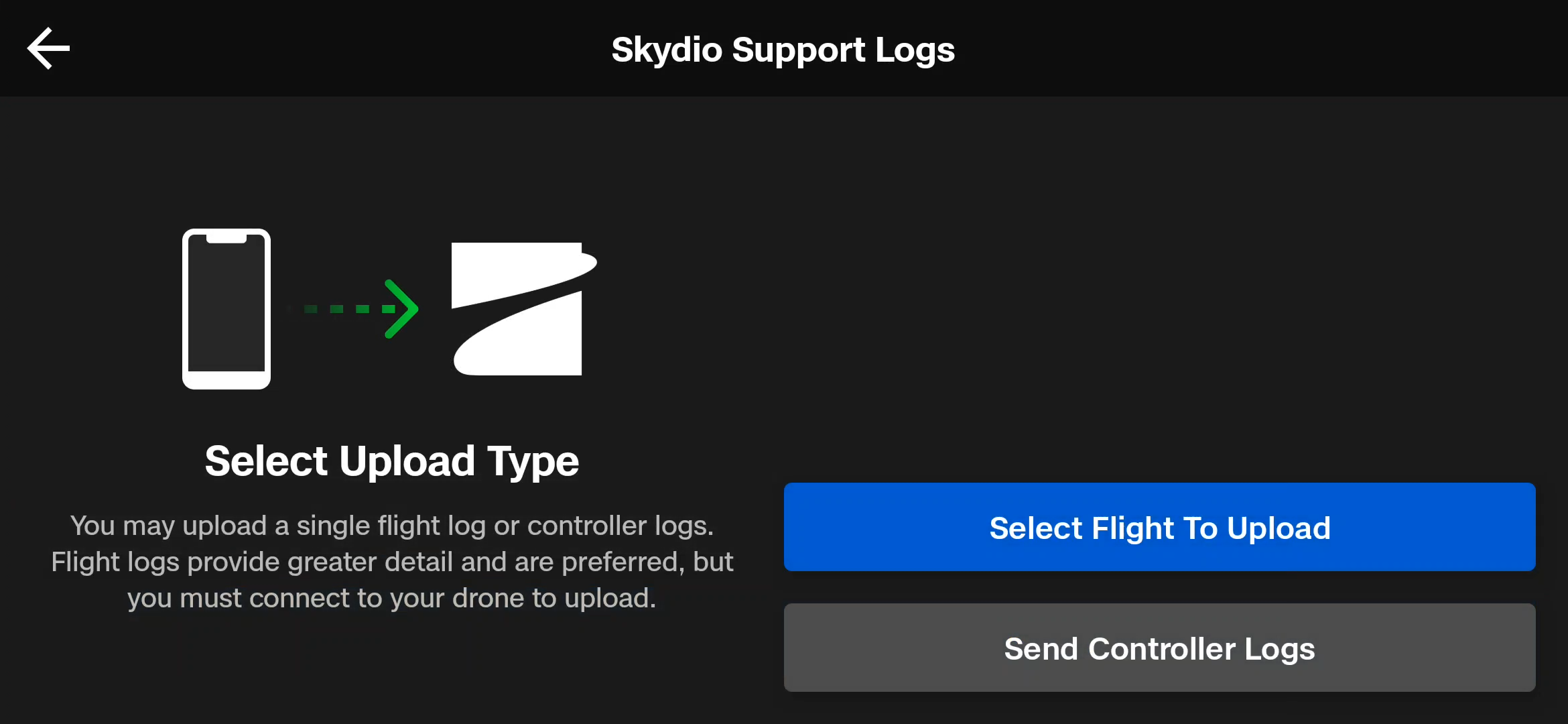

Step 5 - Select Flight to Upload or Send Controller Logs

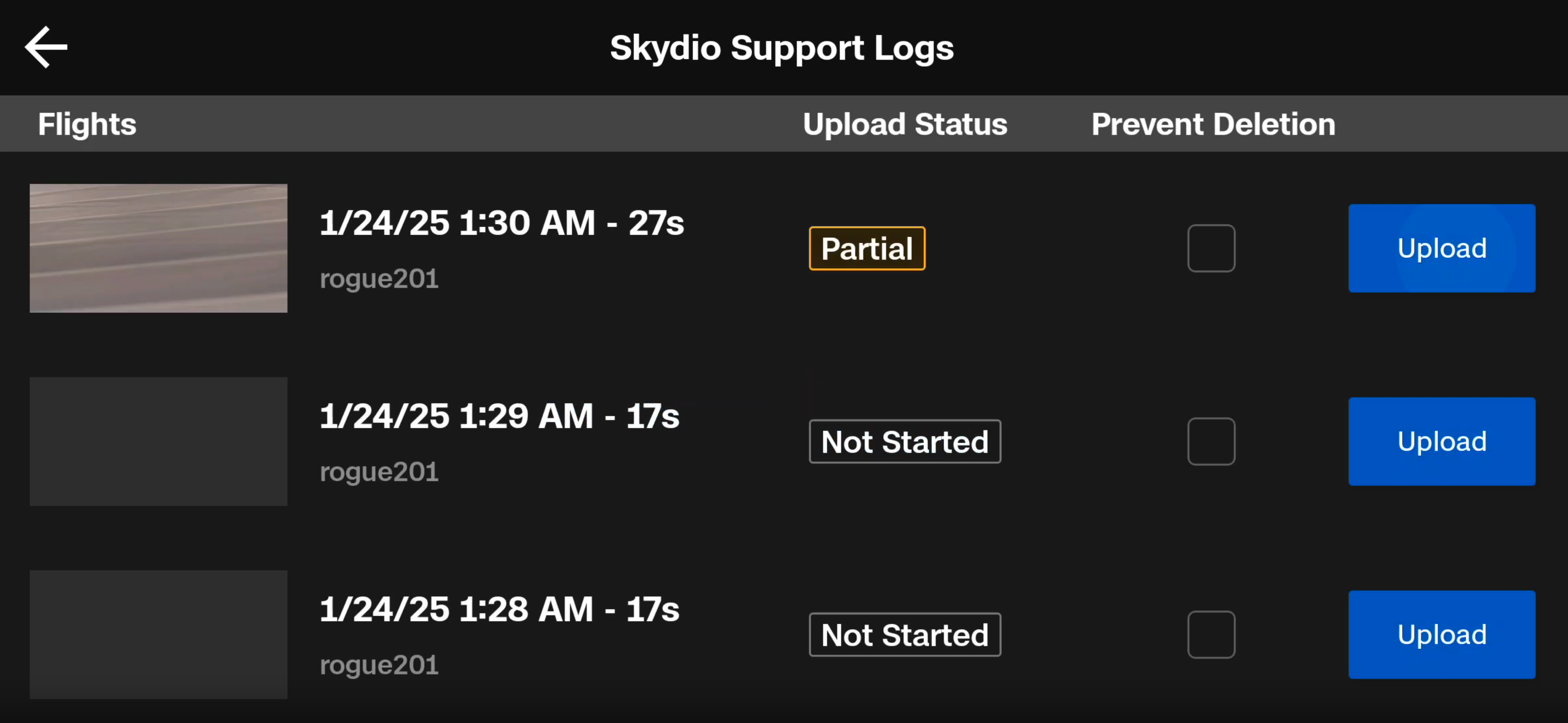

Select Flight to Upload: Select the individual flight you wish to export. Includes logs from a specified flight, organized by date and time.

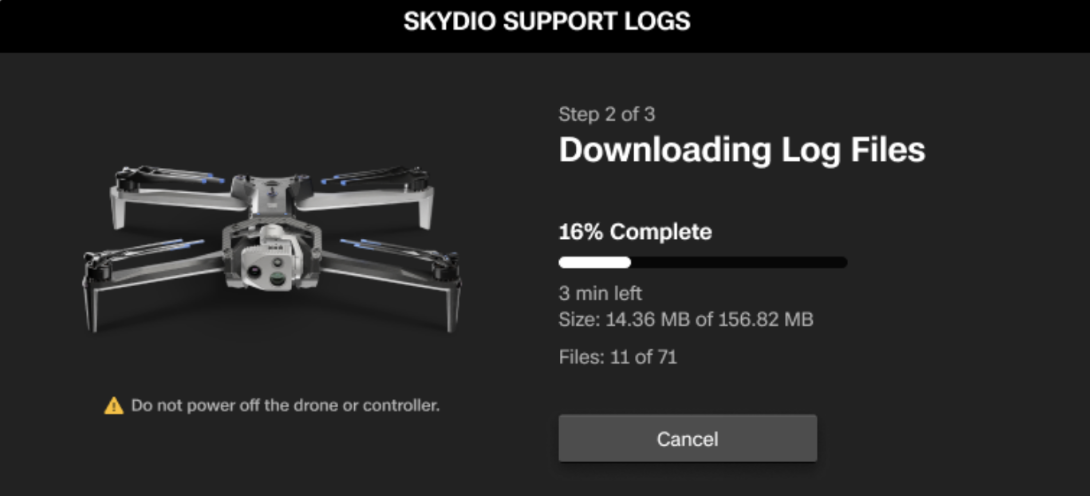

• The system will first download the flight data directly from X10D to the controller. This step may take a few minutes.
• You will be alerted if the logs fail to load.
•

Send Controller Logs: to export controller logs.

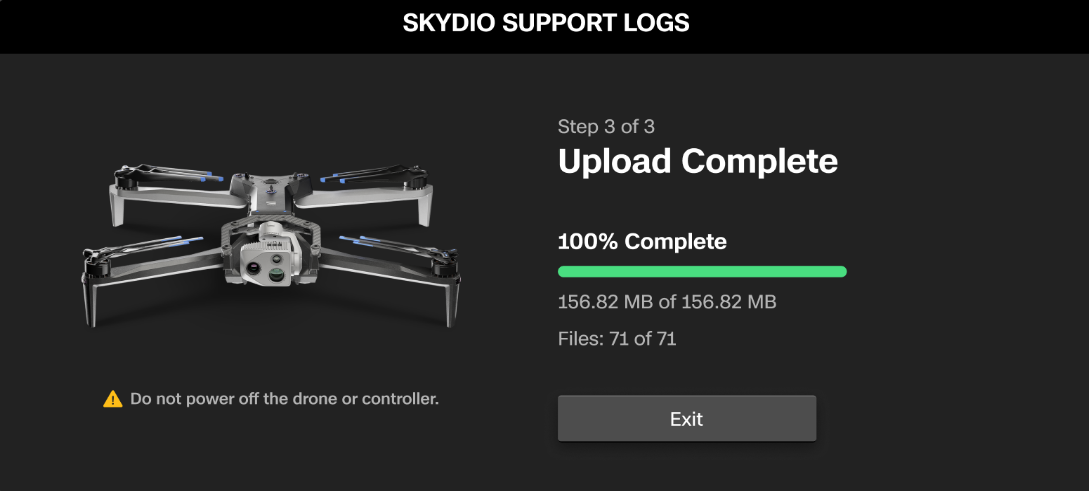

After selecting the logs, an upload status will display.
