How to use Anchor Point on Skydio X10D

Navigate without GPS by setting a reference position on a map, allowing the drone to fly, execute waypoints, and return just as it would with GPS. Set a reference point to enable full vision navigation capabilities.

[note] Anchor point is supported on the Skydio X10D Connect MH.[/note]

Set an Anchor Point

Step 1 - Ensure that you have the maps you need for your area

• Visit How to import maps to Skydio X10D for detailed instructions.

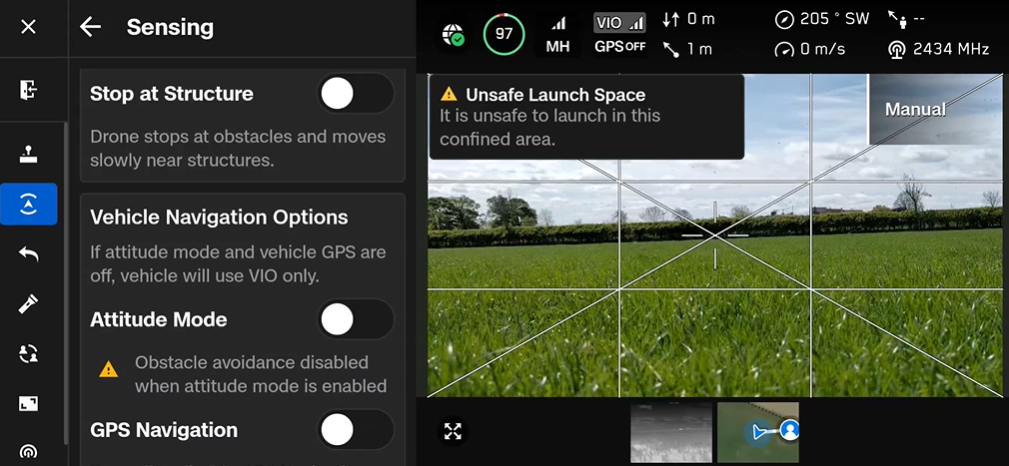

Step 2 - Select Global Settings > Sensing > Toggle Vehicle GPS off

Step 3 - Select Fly Now > the Map settings > Set Anchor Point

Step 4 - Drag the map to place the anchor point at the estimated position of the drone
Step 5 - Long-press on a visible feature on the map (ensure the feature matches in the camera view) to set a heading point

Step 6 - Rotate the drone until the heading point (physical feature) appears in the camera view

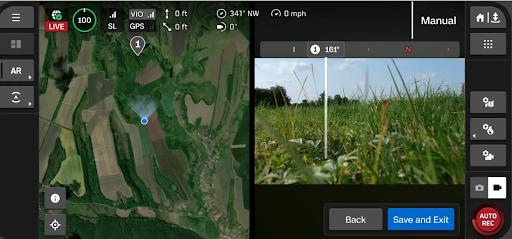

Step 7 - Drag the compass ribbon to adjust the bearing until the vertical marker is aligned with the physical feature

Step 8 (optional) - Adjust or relocalize the anchor point mid-mission in flight as needed
