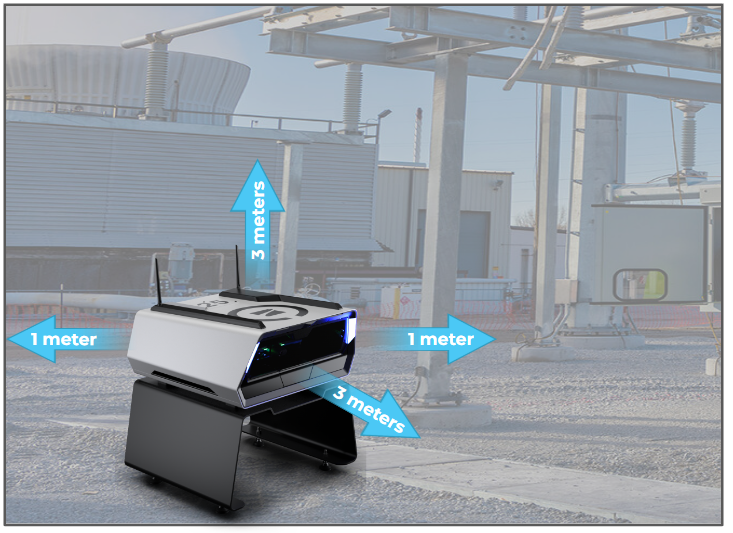

Skydio Dock for X2 Outdoor Environment & Installation

Lighting - ensure the flight environment is adequately illuminated with good visibility and no dark shadows across the landing area. Orienting the Dock so the bay door faces North may help with hard shadows.

Electromagnetic interference (EMI) - may affect the signal connection. Check the environment for:

• • cell phone towers
  • high voltage power lines
  • wireless networks
  • large metal structures
  • concrete with rebar

Reflective surfaces may confuse the visual navigation and obstacle avoidance system. Check the environment for:

• • still water
  • mirrors
  • shiny metal

Windows - that are larger than 5 ft (1.5 m) square may confuse the visual navigation and obstacle avoidance system

Thin obstacles - less than .5 in (1.27 cm) in diameter may confuse the visual navigation and obstacle avoidance system. Check the environment for:

• • guide wires
  • utility lines
  • ropes
  • chain link fencing

Wind - avoid installation in windy areas

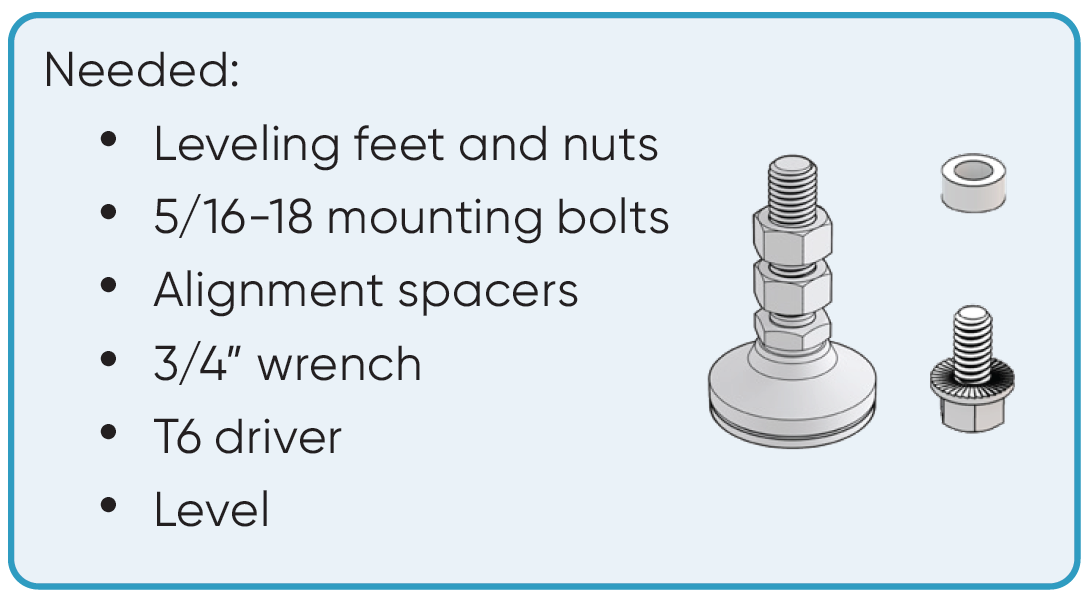

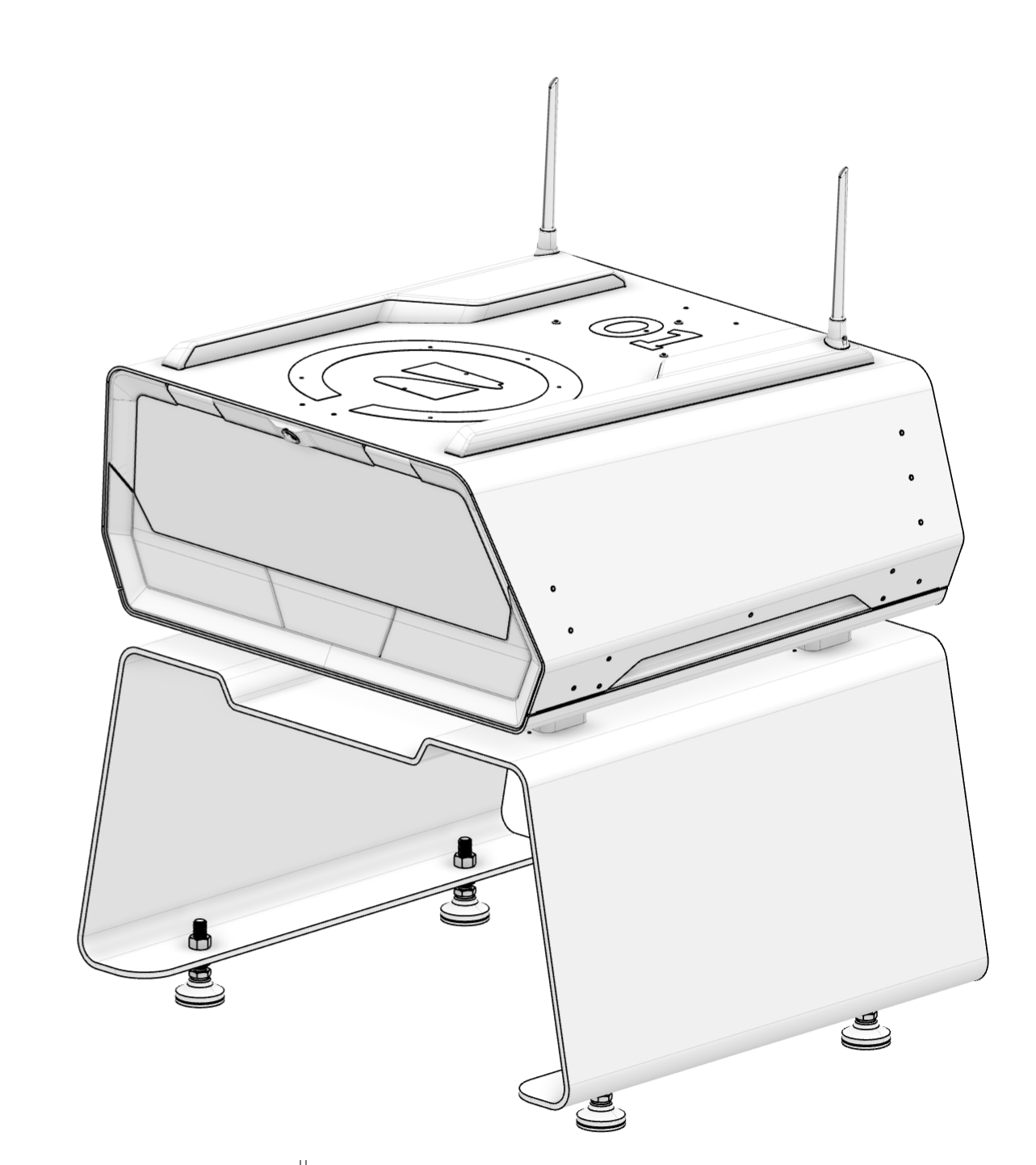

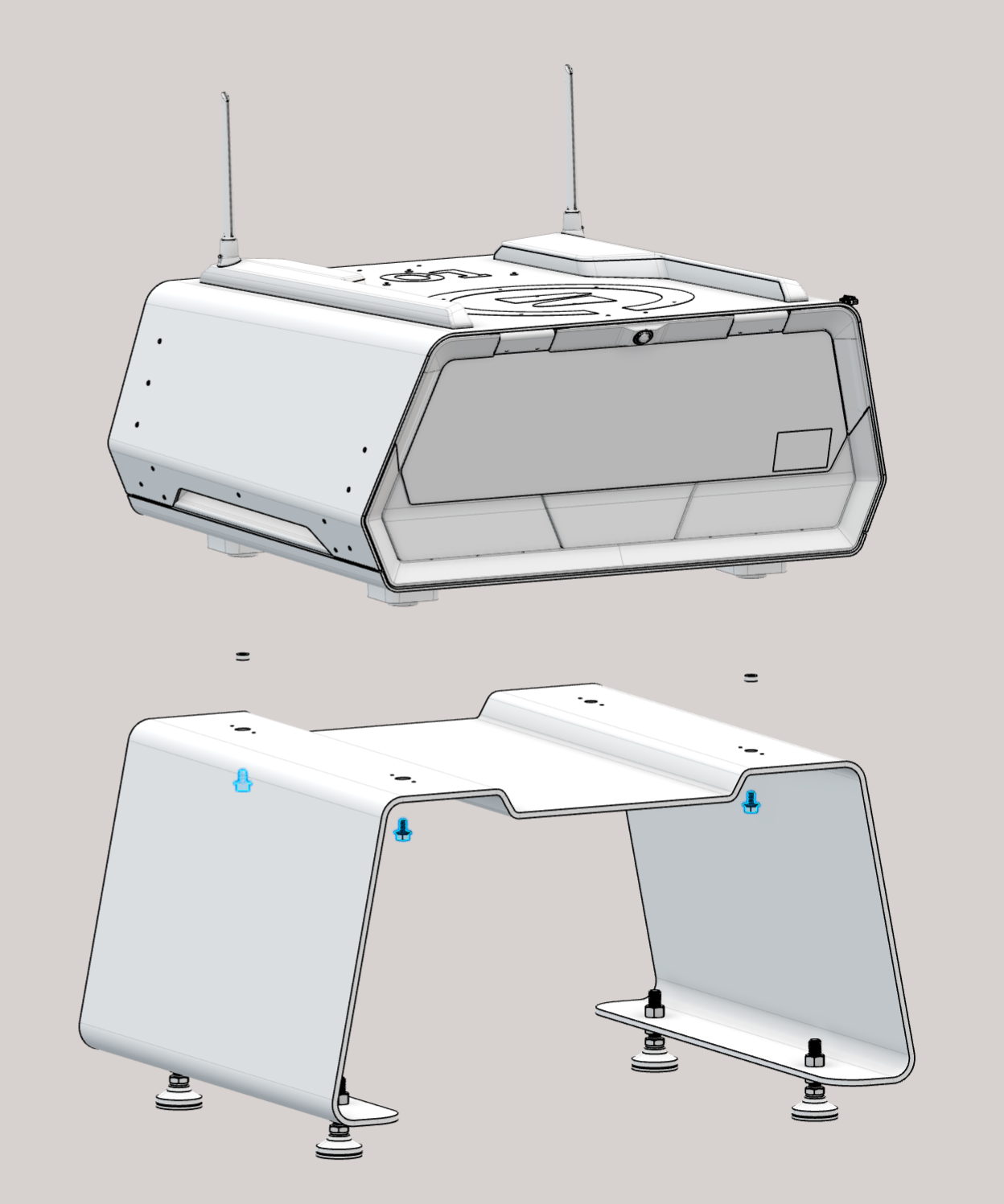

Attach the Dock to the base:

Step 1 - Remove one (1) hex nut from each of the four (4) leveling feet

Step 2 - Insert leveling foot bolts through the holes at the bottom of the base

Step 3 - Thread the hex nut onto the bolt sandwiching the bottom base plate

Step 4 - Insert the mounting bolts up from the base through the four (4) mounting point holes

Step 5 - Add alignment spacer to two cattycorner bolts

Step 6 - Set the Dock enclosure onto the base

• screw the bolts into the enclosure using the ½” wrench
• the screw end should not show above the base more than ⅜”

Step 7 - Set the Dock on a level and stable surface

• recommended two (2) person lift

Step 8 - Using the wrench, adjust the top and bottom hex nuts until the Dock is level

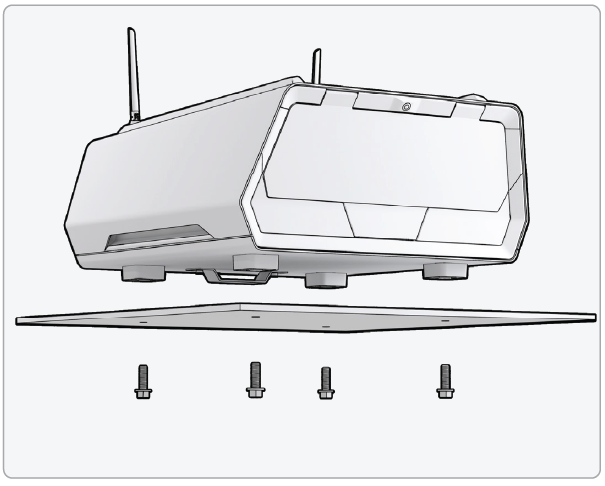

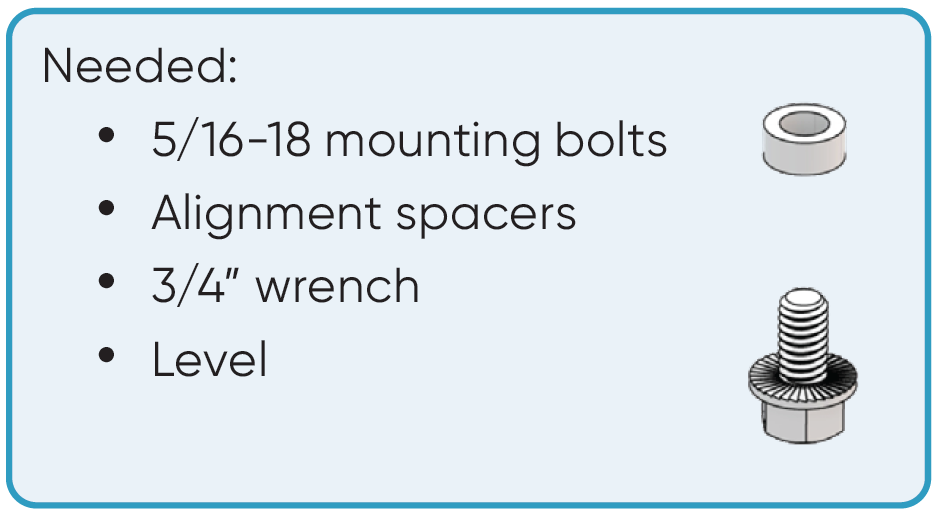

Mount the Dock enclosure to a platform:

Step 1 - Insert the mounting bolts up from the base through the four (4) mounting point holes

Step 2 - Add alignment spacer to two cattycorner bolts

Step 3 - Set the Dock enclosure onto the base

• screw the bolts into the enclosure using the ½” wrench
• the screw end should not show above the base more than ⅜”

[note]Skydio Dock should be permanently mounted to ensure repeatable missions from the same position and orientation and reduced wear and tear from vehicle transport to and from sites.[/note]

Step 1 - Open the access panel

• • unlock and open the back access panel using the key provided with your Skydio Dock
  • the key to unlock the Access Panel is included. Do not lose your key.

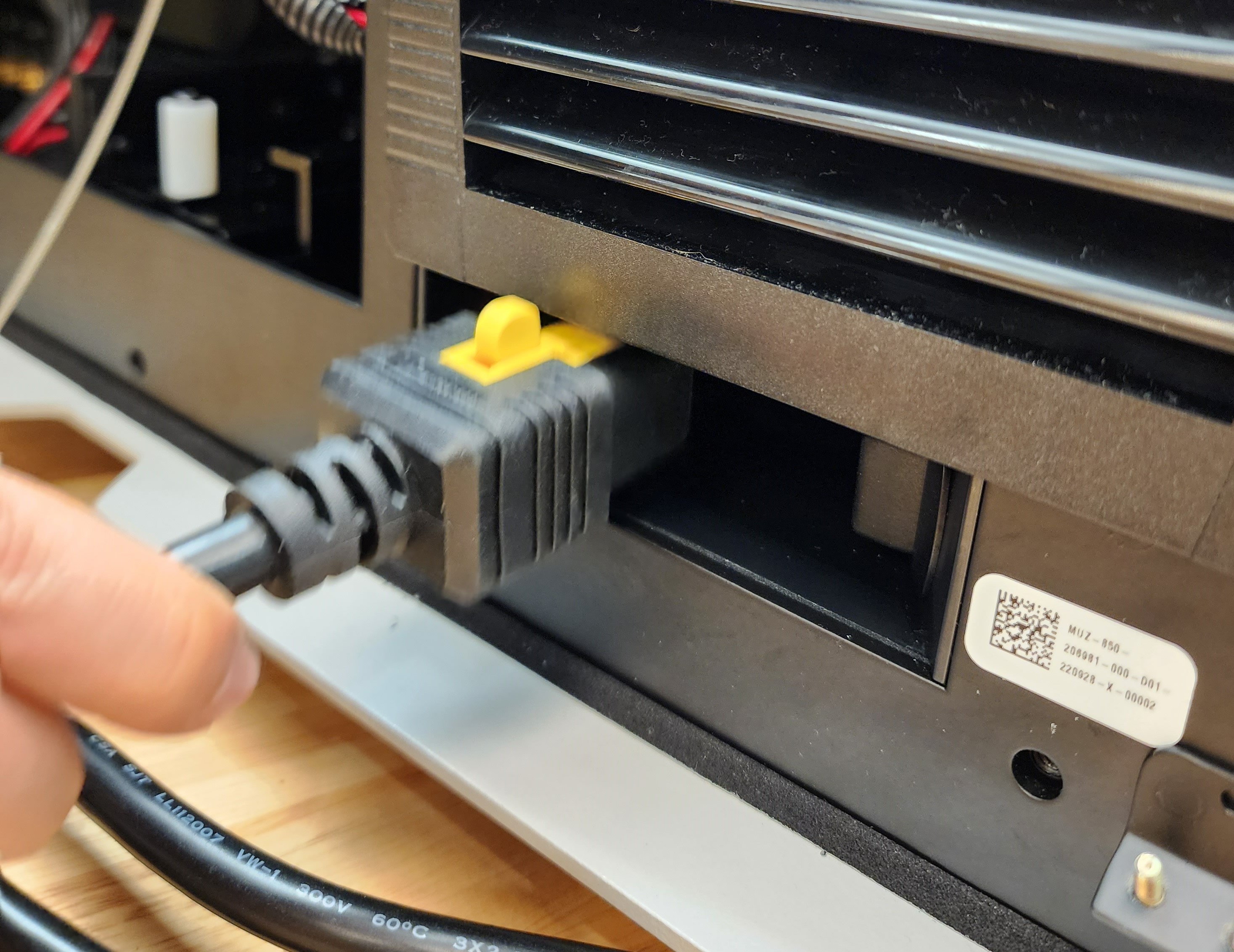

Step 2 - Connect the power cable

• • feed the power cable through the cable management slot in the access panel
  • connect the power cable to the Dock
  • plug the power adapter into a 100-240 V power source
  • toggle the power switch to ON

Power Requirements:

• • 1000 Watt peak output for DC to AC applications
  • 240 VAC, 50-60Hz universal input, 20 Amp 3-wire cord
  • Requires a 110V - 220V AC power source

Docks deployed in temperatures below 23℉ (-5℃) should be installed with a 220V power source to power the heater. Always use a grounding receptacle

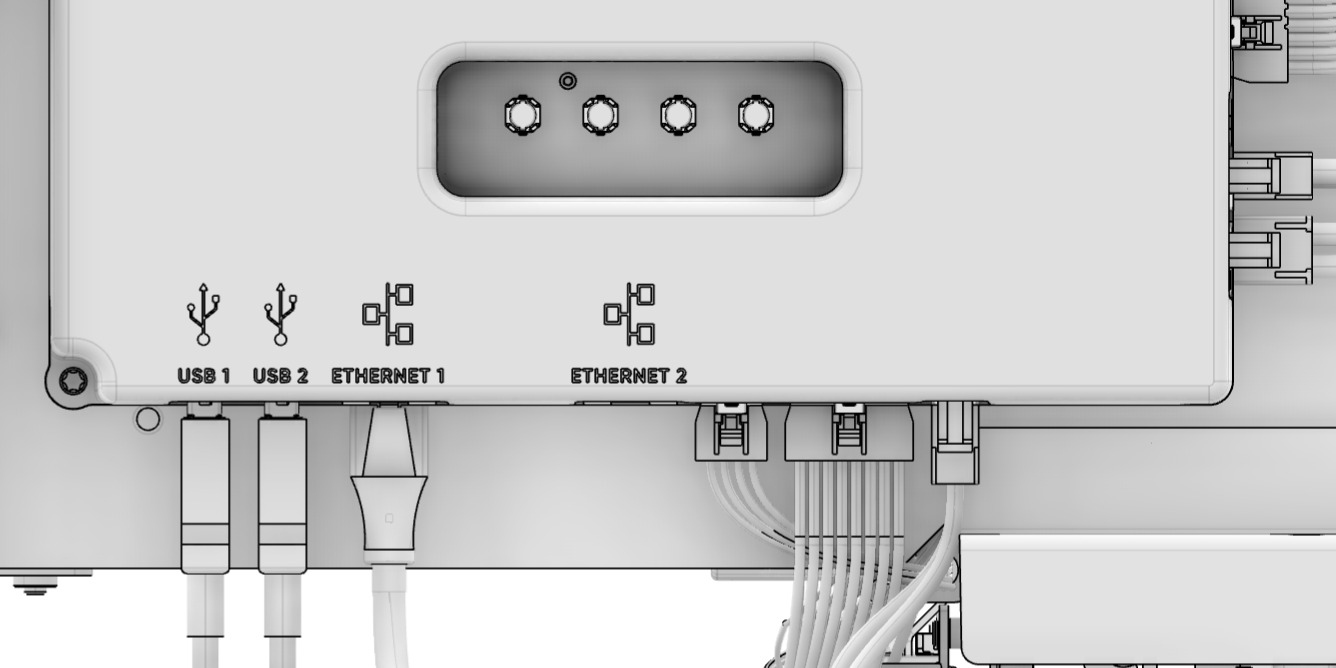

Step 3 - Connect the Ethernet cable

• • feed the Ethernet cable through the cable management slot in the access panel
  • insert the Ethernet cable into the slot labeled Ethernet 1

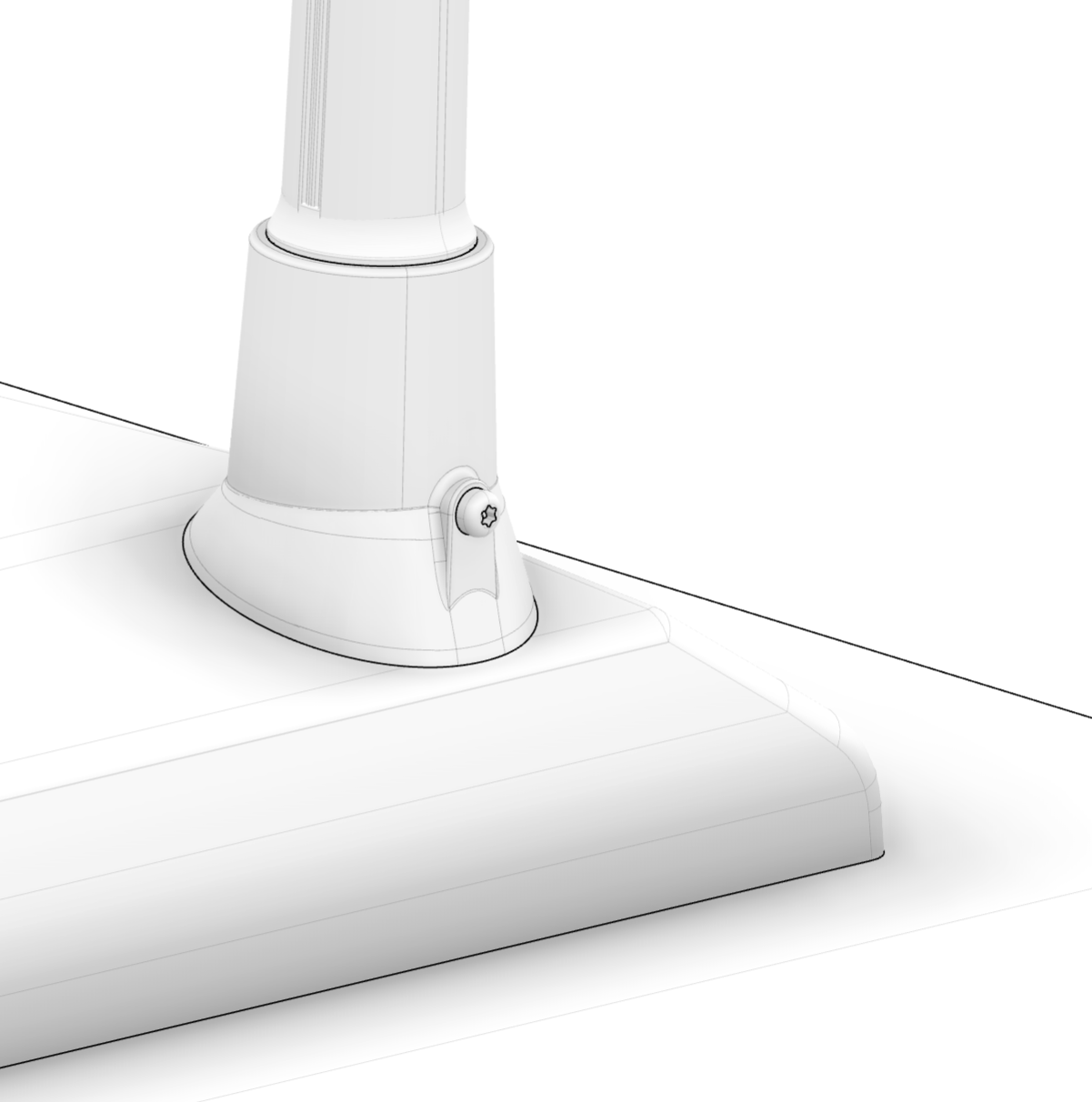

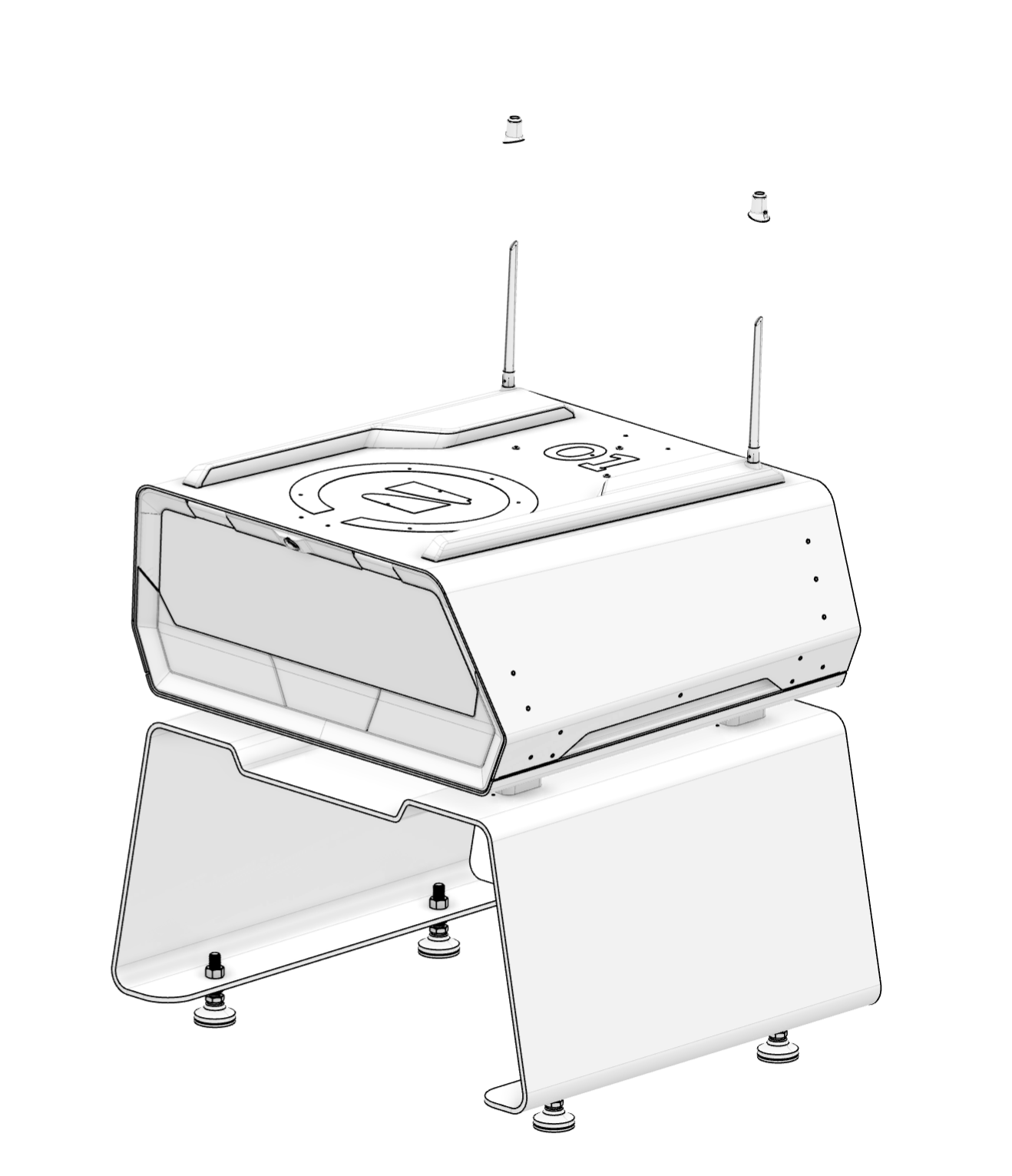

Step 4 - Deploy antennas lift the antennas so that they are perpendicular to the enclosures

Step 5 - Slide the two antenna locks onto the antennas

Step 6 - Tighten using a T6 driver

• • locks the antenna so that they stay vertical under high winds
  • prevents water ingress

Step 7 - Attach the License Plate

• • number plate 01 comes pre-installed with additional number plates available to purchase
  • the number plates can be removed and replaced
  • visit How to attach a Dock License Plate number for detailed instructions

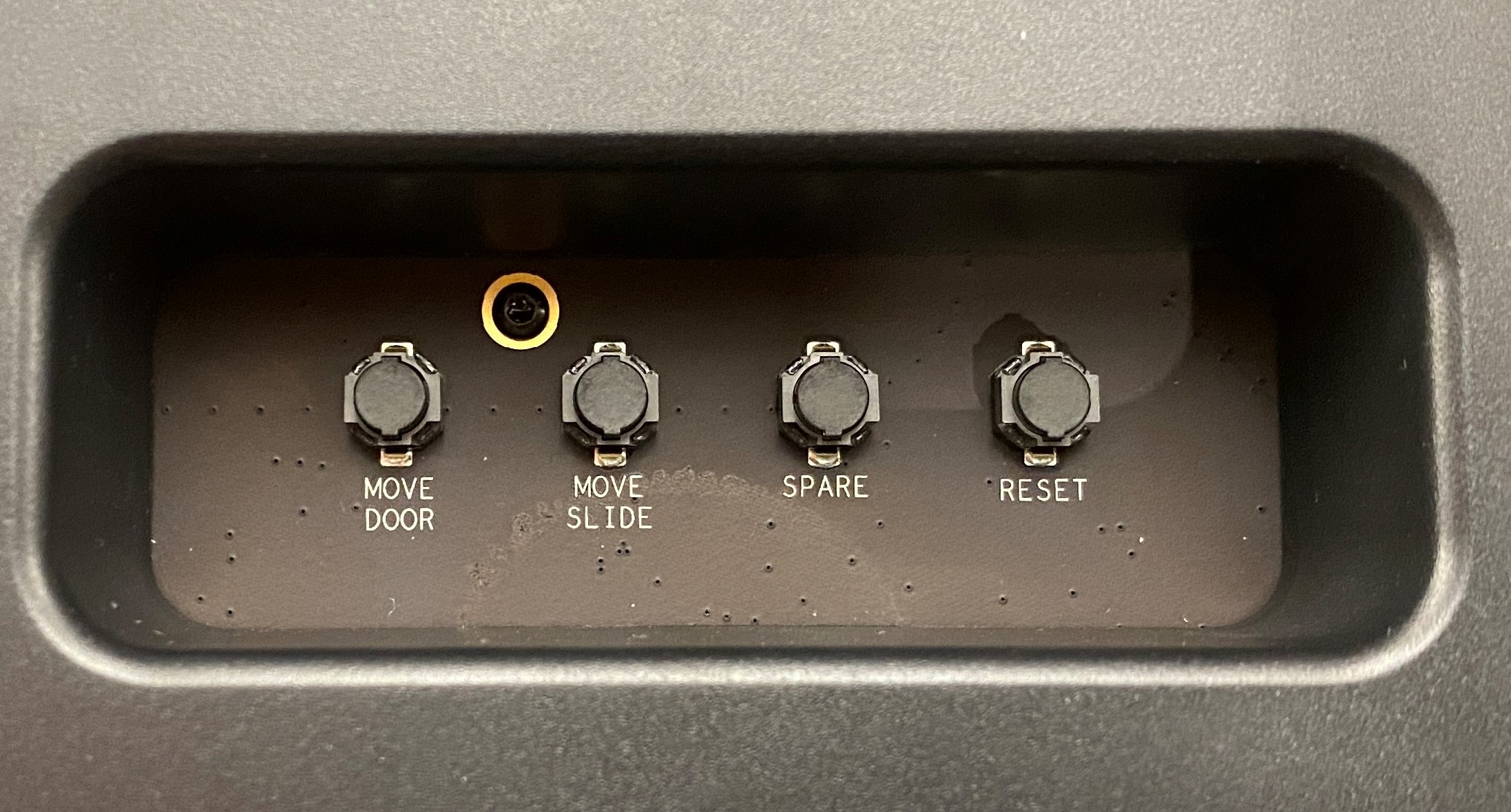

Step 8 - Press the Move Door button to open the bay door and the Move Slide button to extend the arm

• • located in the back access panel

Step 9 - Attach the Dock for X2 compatible battery and power the drone ON

Step 10 - Set the drone on the pedestal

• • drone lights will be solid green

Step 11 - Press the Move Slide button to retract the arm and the Move Door button to close the bay door

• • close and lock the access panel

[warning text="Keep your hands and fingers away from the bay door while it opens and closes. Always open the bay door prior to extending and retracting the arm."]

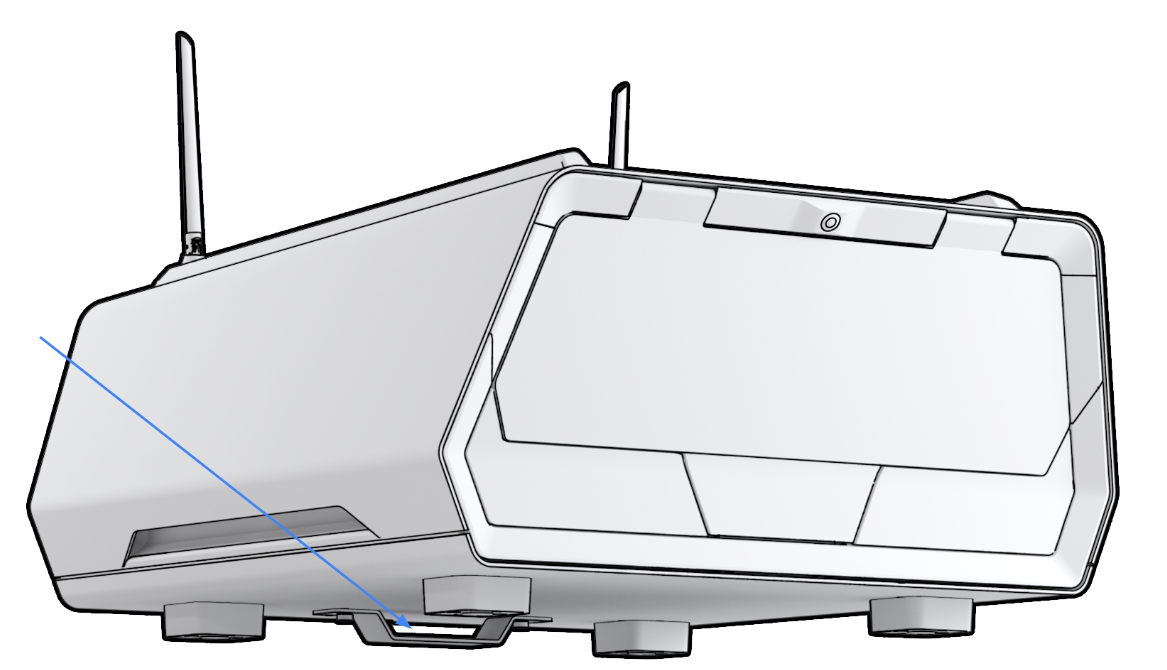

Step 12 (optional) - Secure the Dock from theft using the locking bracket located on the bottom of the Dock enclosure.

• • for use with chains up to 3/4 inch
