Skydio 3D Scan Release Notes
June 29, 2022
Skydio Enterprise Controller software version: | 20.1.30 |
Enterprise Android app version: |
20.1.30 |
Enterprise iOS app version: |
20.1.1(0) |
Skydio drone software version: | 19.4.18 |
What's in this release:
- Minor fixes and performance improvements
June 16, 2022
Skydio Enterprise Controller version: |
20.1.29 |
Enterprise Android app version: |
20.1.29 |
Enterprise iOS app version: |
20.1.0(11) |
Drone software version: | 19.4.15 |
Enhancements
Scan Data Updates

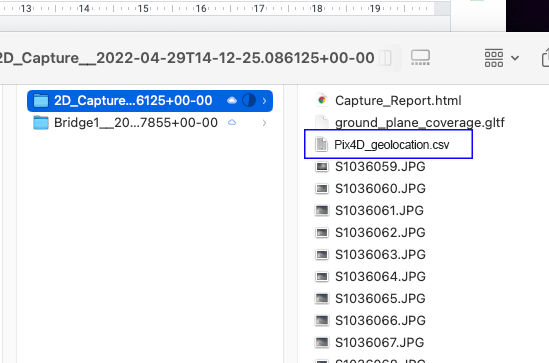

- After completing a scan, you will see a new file in your scan folder.
- Pix4D_geolocation.csv includes metadata specific to Pix4DMapper
- Upload this file directly to Pix4DMapper for an easier, more seamless reconstruction experience.
April 13, 2022
Skydio Enterprise Controller version: |
19.0.44 |
Enterprise Android app version: |
19.0.44 |
Enterprise iOS app version: |
19.0.0 (38) |
Drone software version: | 19.0.50 |
What's in this release
- Bug fixes
March 29, 2022
Skydio Enterprise Controller version: |
19.0.42 |
Enterprise Android app version: |
19.0.42 |
Enterprise iOS app version: |
19.0.0 (38) |
Drone software version: | 19.0.50 |
![]() |
For Skydio 2/2+ users, this update will be released gradually over the course of 1 week. If you do not see the update in the App Store or Google Play by January 11, 2022, please contact Skydio Support. |
For more information visit:
Access 3D Scan Software Manuals
New

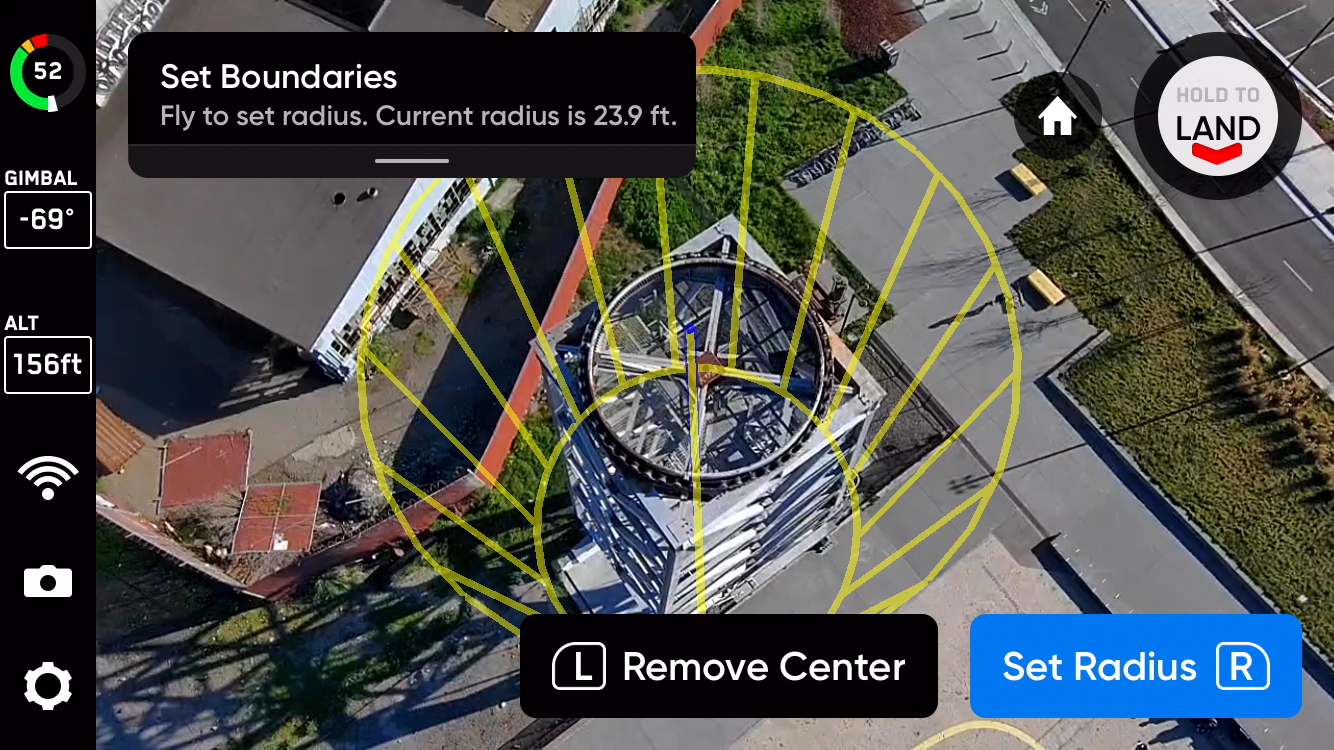

3D Tower Capture
Introducing 3D Tower Capture, a best-in-class solution for automated data capture of telecommunications towers and other vertical structures. This specialized capture mode drastically speeds up the scan setup process and results in an efficient, orbit-based capture of your tower.
Instead of setting up several pillars to create your scan boundary, simply set a center pillar and radius to create a cylindrical scan boundary. During a 3D Tower Capture, Skydio defaults its flight path to begin at the top or bottom of the tower and flies a spiral path around the Z axis.

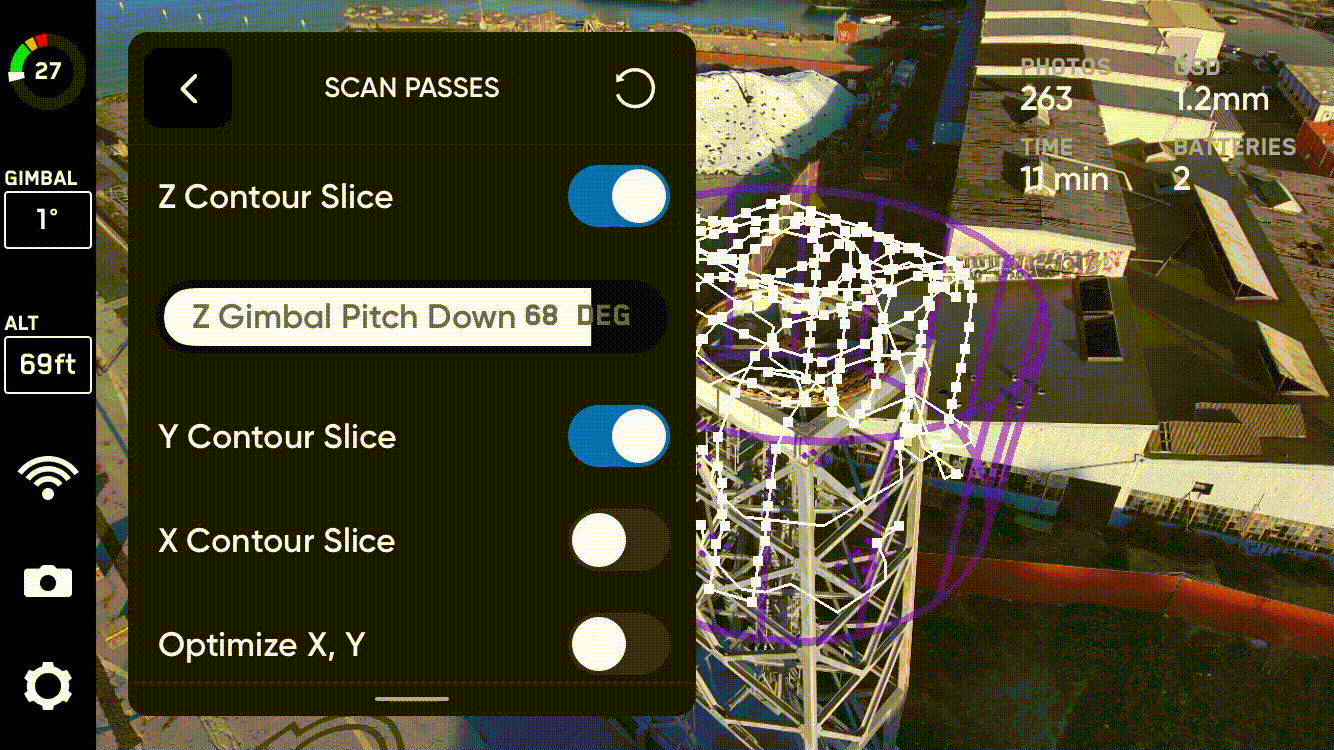

Optimize X and Y Scan Passes
In any 3D Capture mode, you now have the option to toggle on Optimize X,Y. This means that during the X and Y scan passes, redundant imagery captured in previous scan passes will be skipped. Avoiding duplicate photos decreases the total scan time and total number of photos captured while still maintaining full coverage.
Support for Thermal Images (Skydio X2 Color/Thermal only)

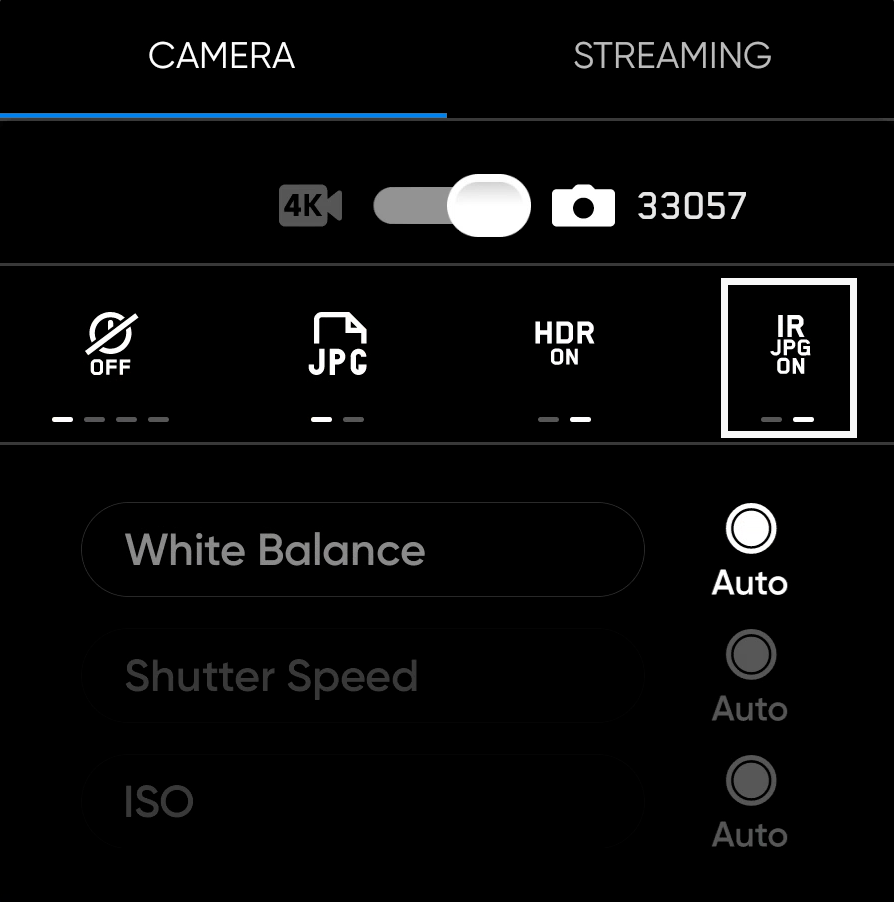

Capturing thermal images is now supported on Skydio X2 Color/Thermal. Navigate to the Camera Settings menu and tap to change the IR JPG setting from Off to On.
Safe Distance
Enable Safe Distance to set a minimum distance the drone will stay away from objects and structures during autonomous flight (3.3-9.8 ft / 1-3m). For example, setting a Safe Distance is useful when you want to avoid flying near or through obstacles, such as a lattice tower, while Skydio explores the scan area. Use in any situation where you need to avoid objects such as wiring or thin antennas. Safe Distance is not active when piloting manually.
Take Best Photo
Skydio will intuitively and automatically adjust the Distance to Surface if it runs into obstructions at any point while scanning, allowing you to capture images in tight spaces. The GSD will also automatically update as Skydio adjusts the Distance to Surface value. This setting is on by default for all scan modes.

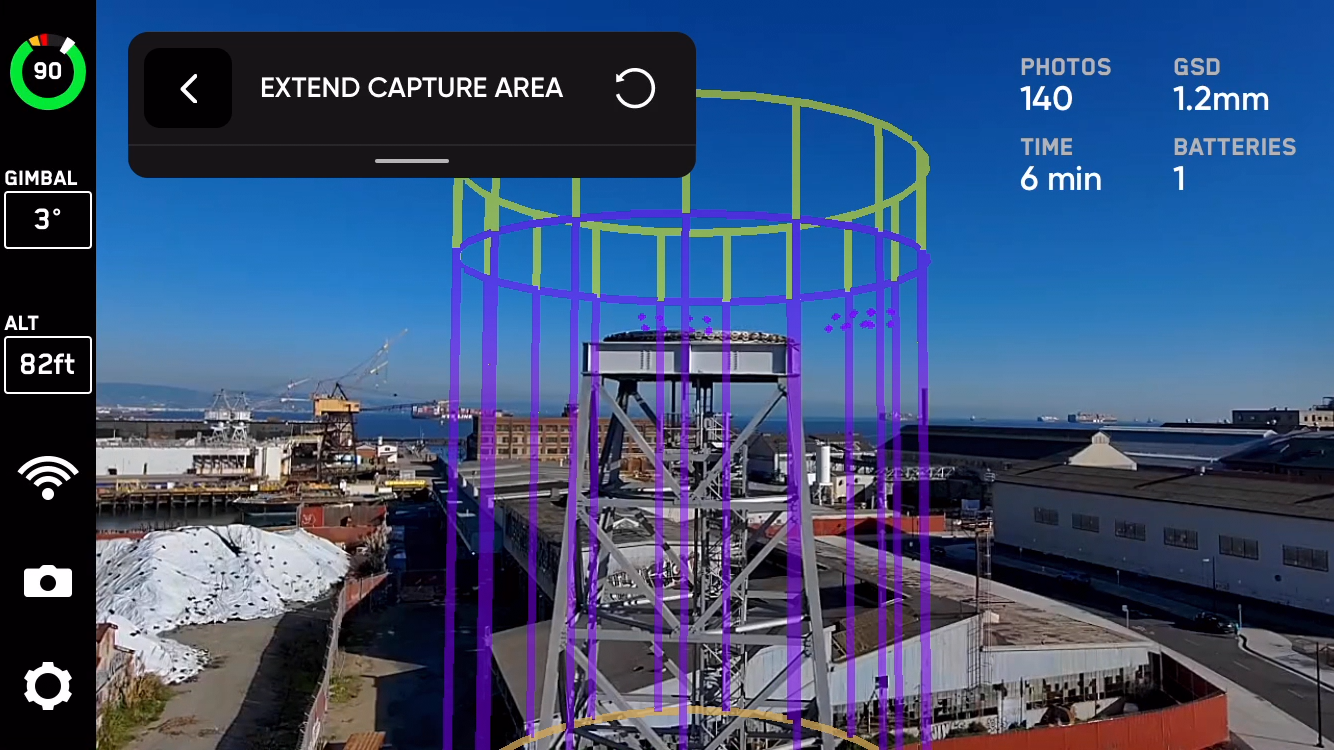

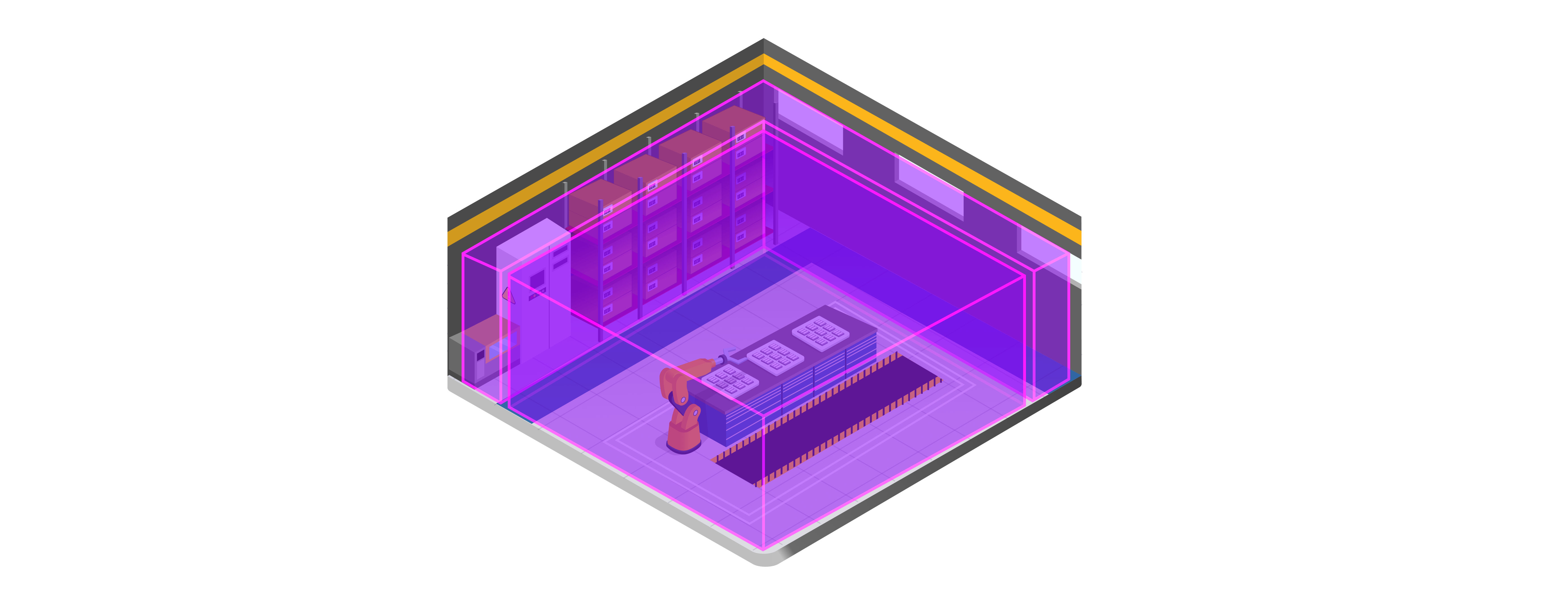

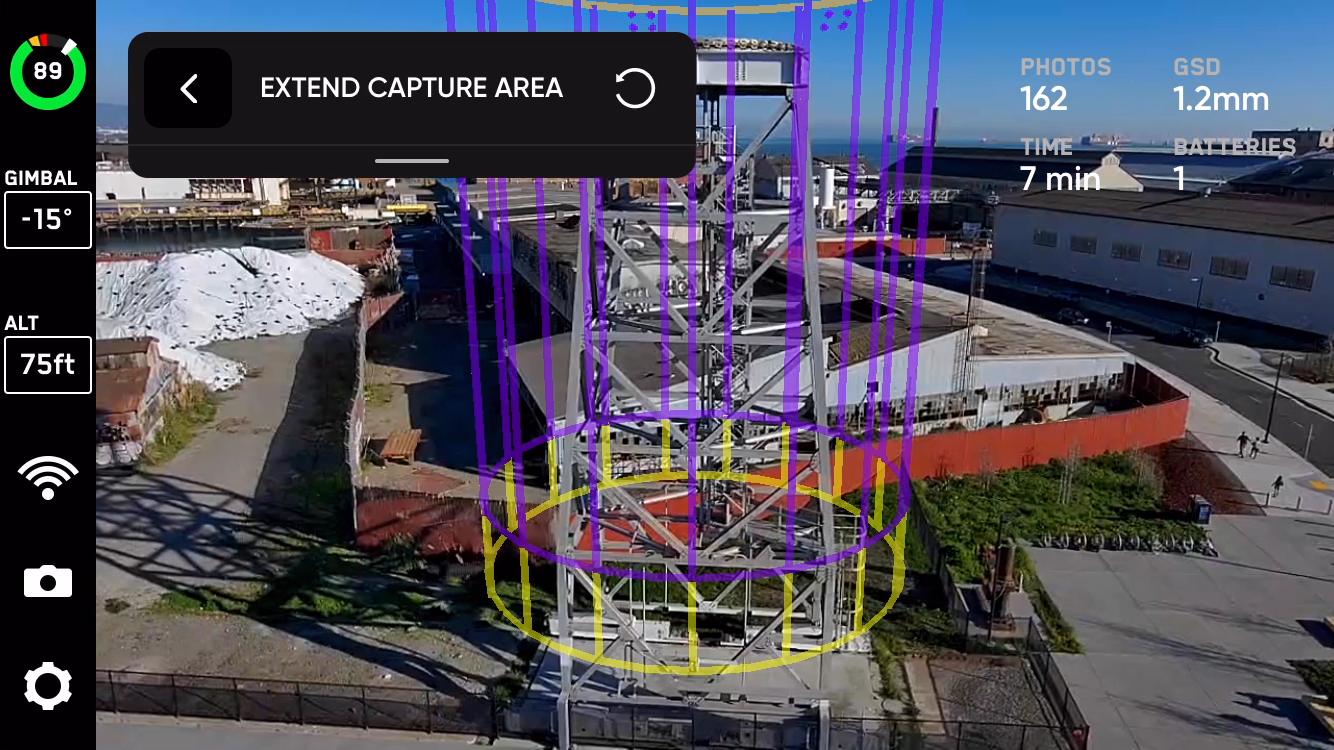

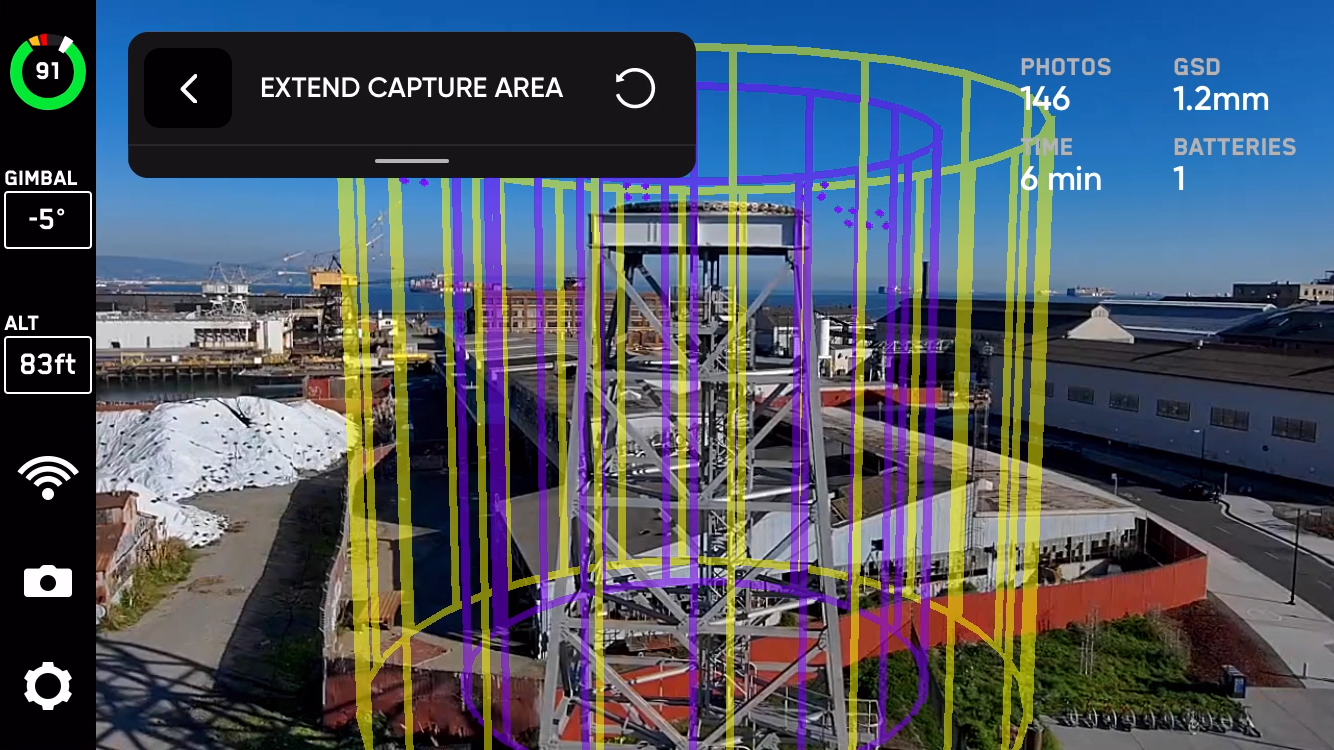

Extend Capture Area

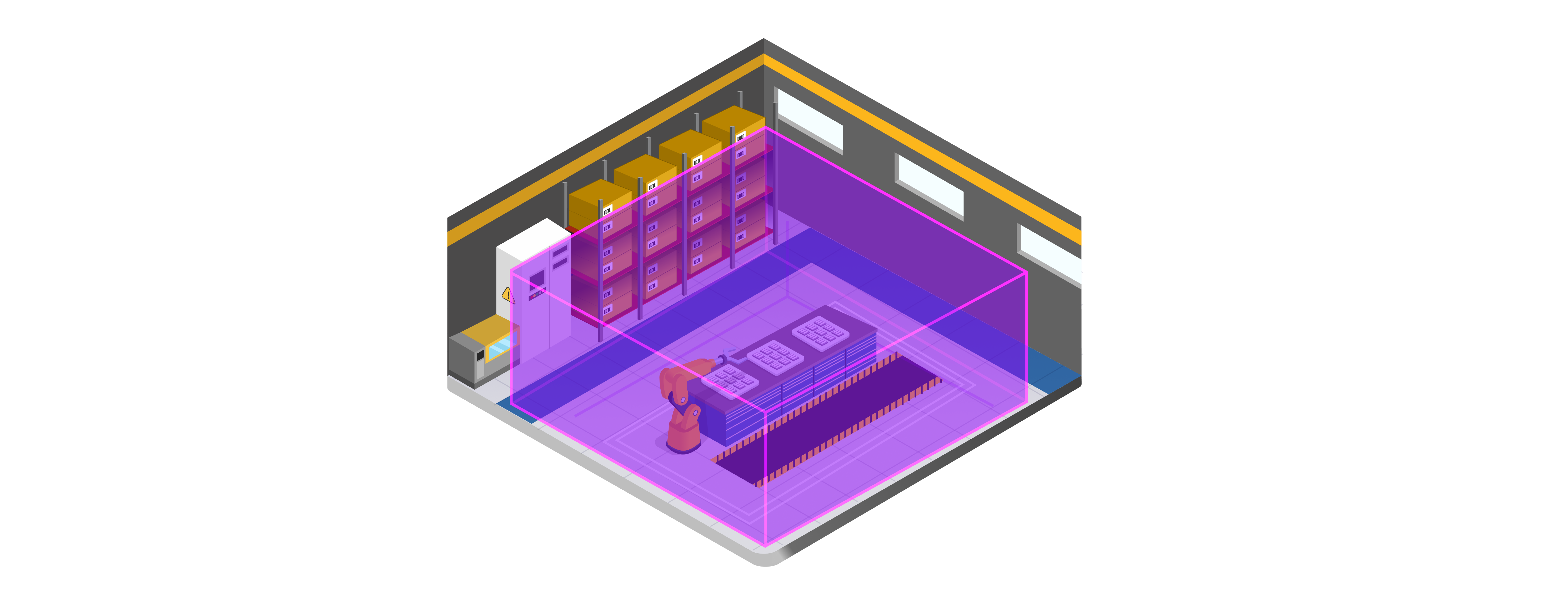

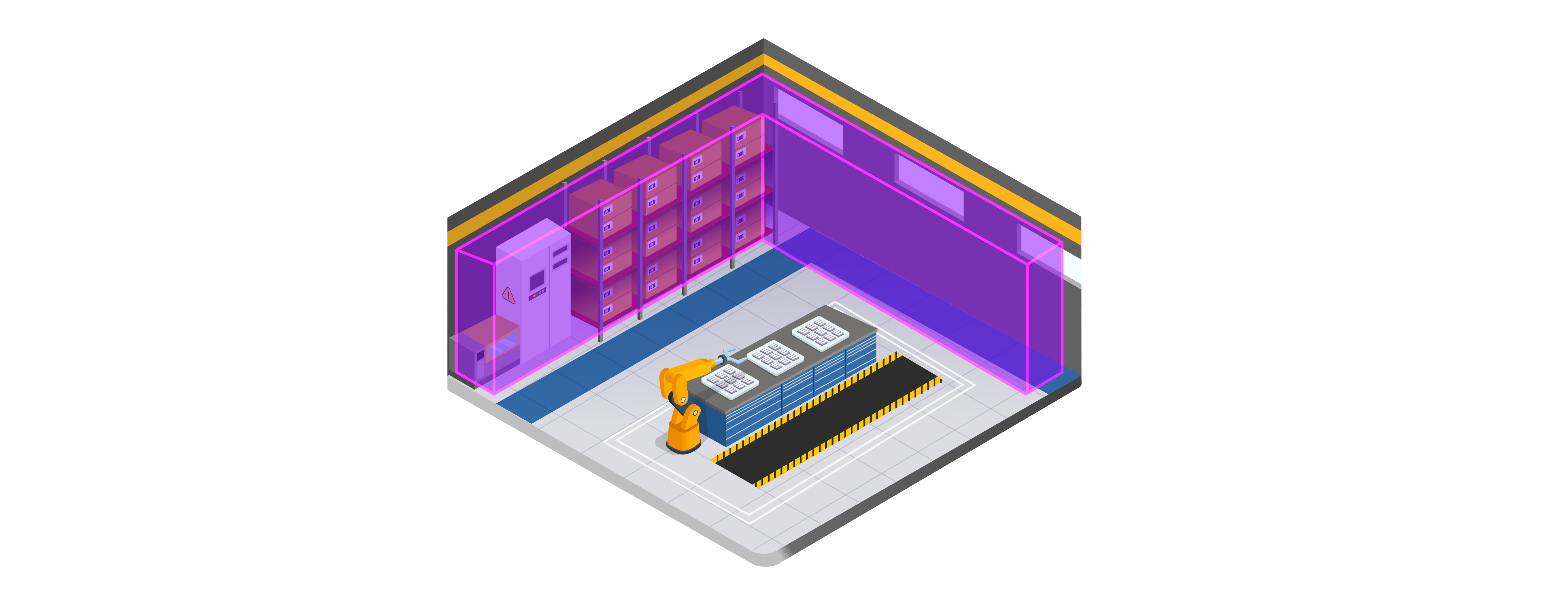

When any of the Visual Geofences are enabled, the Extend Capture Area setting allows Skydio to capture photos that are located outside of the scan volume without physically flying there. Skydio will capture photos that are one Distance to Surface value outside of the scan volume. Meaning, if your Distance to Surface is set to 30 feet, enabling this setting allows Skydio to capture photos up to 30 feet outside of the scan volume. There are three new available settings to toggle:
|
Above Ceiling Below Floor Outside Walls |
Enhancements
UI/UX Improvements

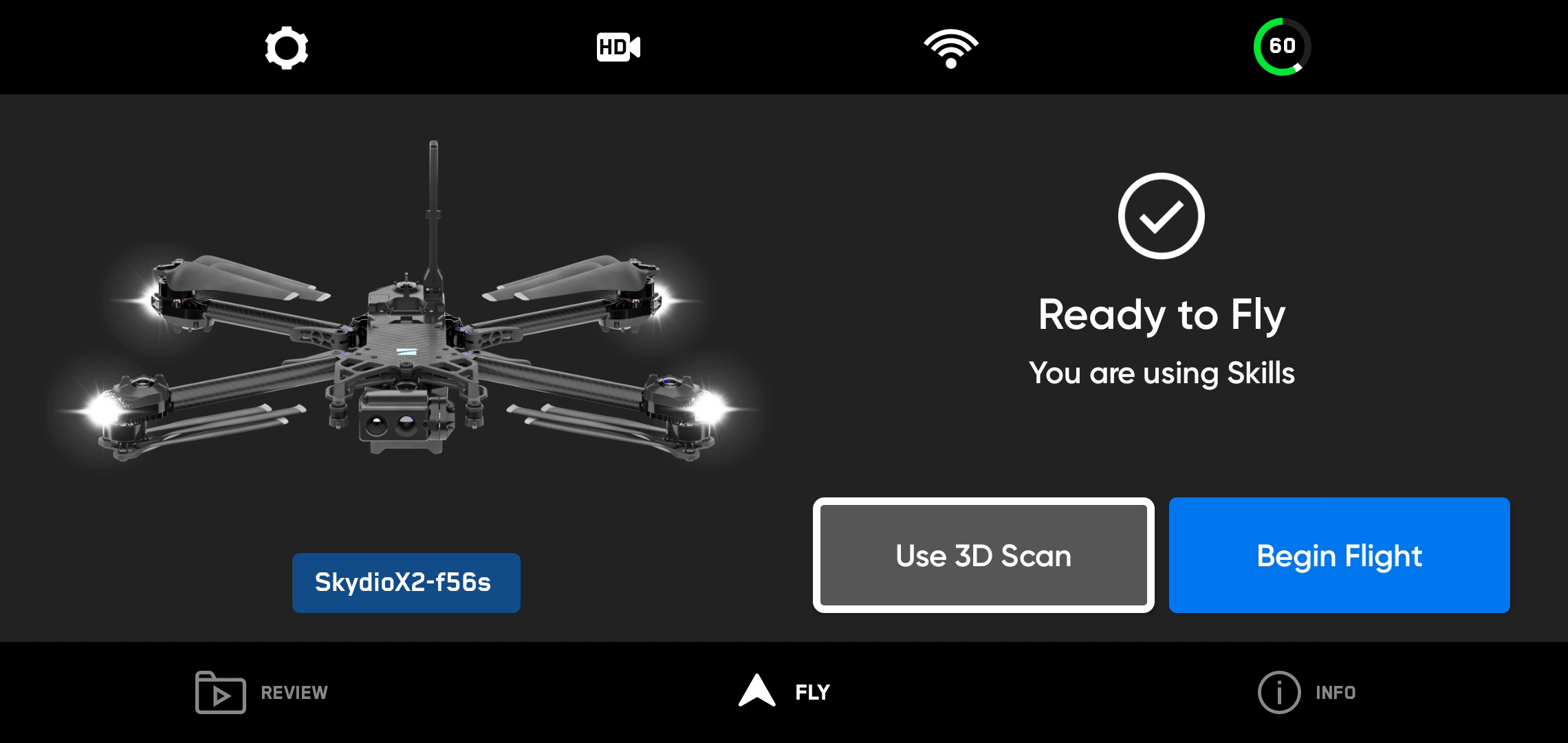

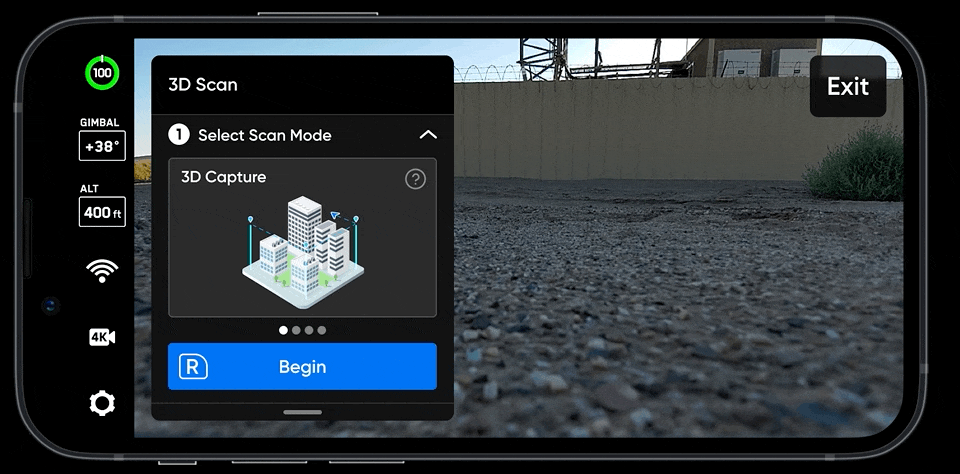

You now have the ability to enter the 3D Scan mode from the Fly Screen. After powering on your drone, simply select Use 3D Scan to begin automatically rebooting.

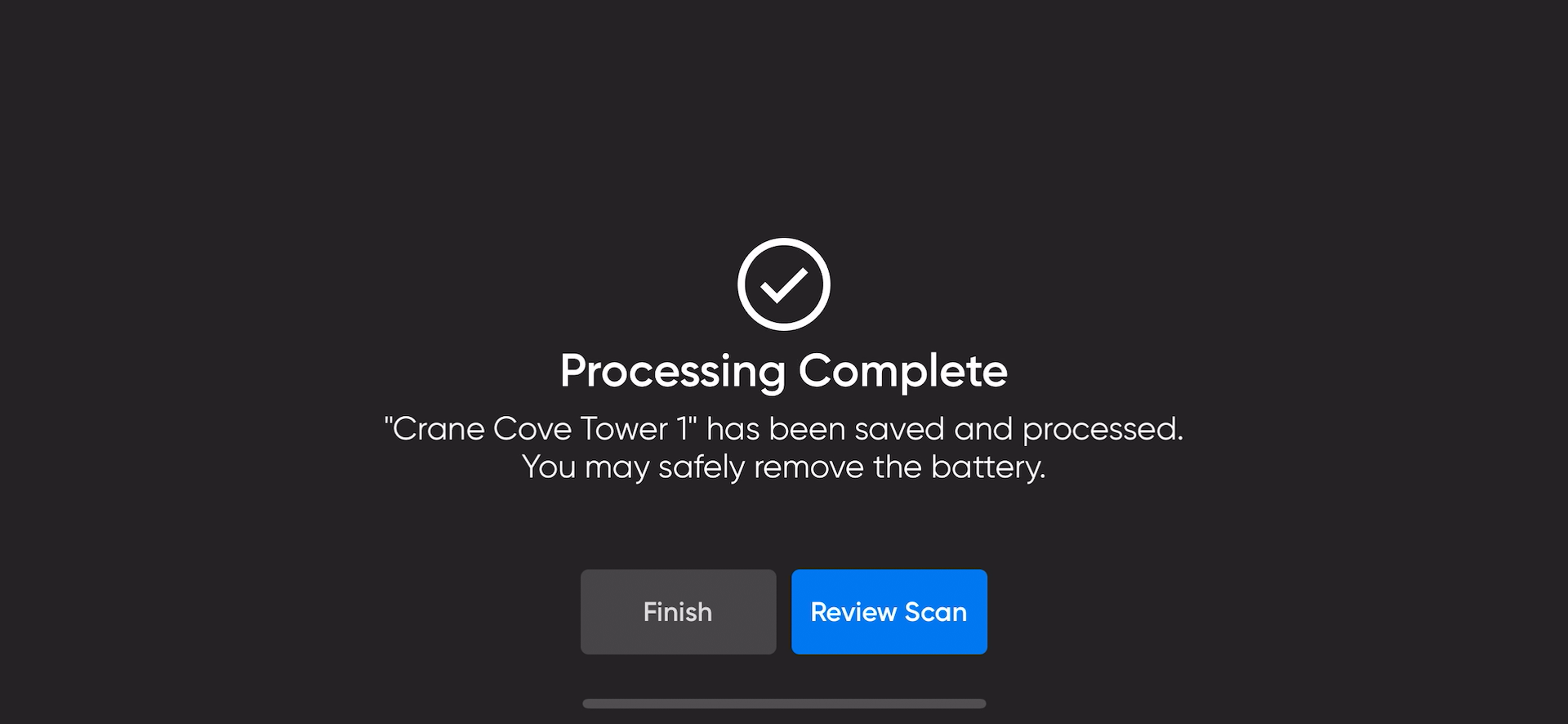

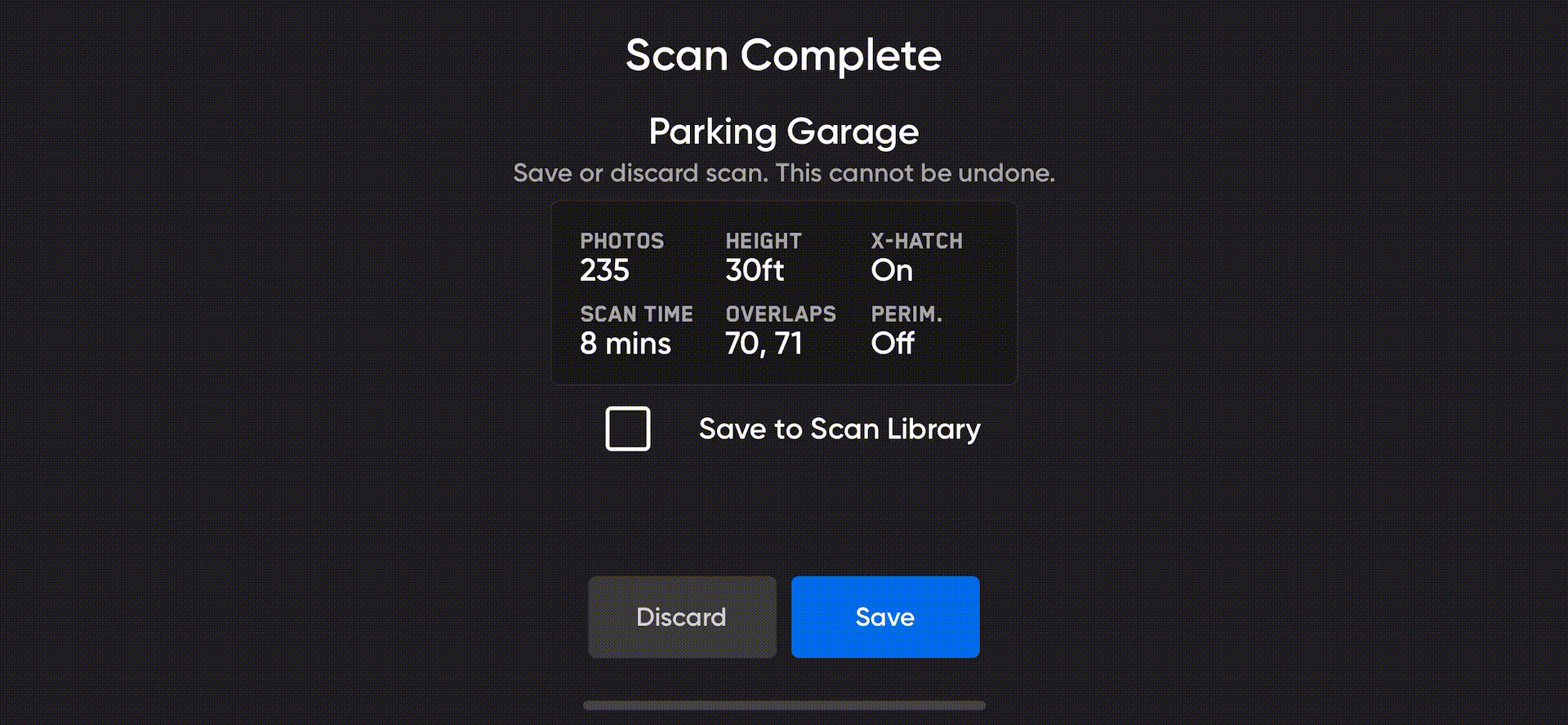

After completing your scan, directly enter the Edge Model Viewer with the new Review Scan option.
Not sure which scan mode to use? With Guided Mode Selection, tap the question mark to view more information about each scan mode.
New VehicleName in Photo EXIF Data
Easily differentiate between the Skydio X2 Color and Skydio X2 Color/Thermal camera models with updated naming in the embedded EXIF/XMP image data.
- If you are using a Skydio X2 Color the VehicleName is displayed as X2 Wide
- If you are using a Skydio X2 Color/Thermal the VehicleName is displayed as X2 Narrow
Fixes
General Bug Fixes
- Multi-battery resume no longer relies on the location of the AR Observer, so you can more confidently set your optimal AR Observer location.
January 4, 2022
Skydio Enterprise Controller version: |
18.0.13 |
Enterprise Android app version: |
15.11.36 |
Enterprise iOS app version: |
15.11.1 (2) |
Drone software version: | 15.11.33 |
![]() |
For Skydio 2/2+ users, this update will be released gradually over the course of 1 week. If you do not see the update in the App Store or Google Play by January 11, 2022, please contact Skydio Support. |
New
Skydio X2D Encryption Support

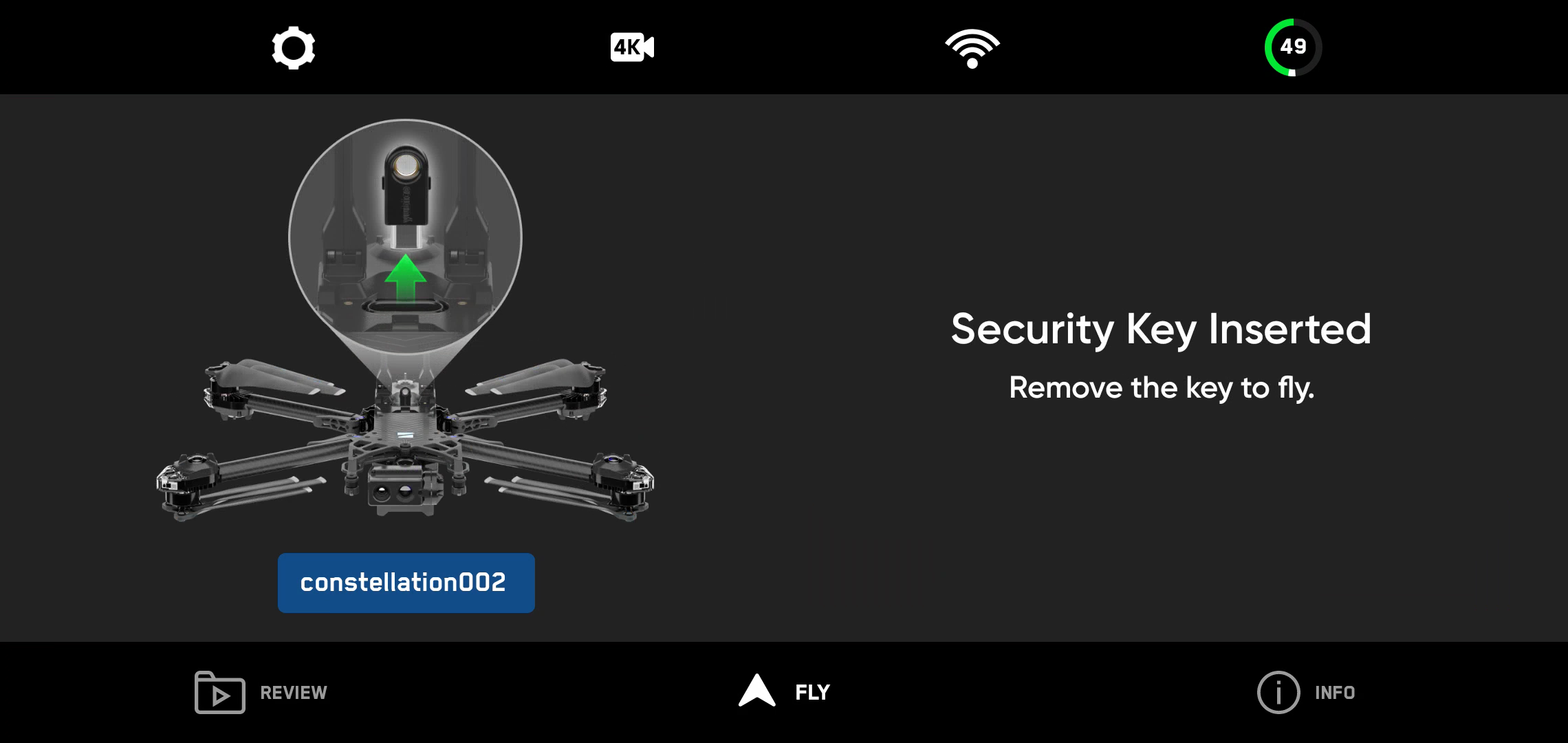

Introducing full support for encryption on your Skydio X2D. Before starting your flight, insert a security key to encrypt your data. After completing a scan, land and insert the security key to decrypt your media and access your scan data.
Enhancements
Capture Report Update
The Capture Report now includes information about which drone was used to fly in a specific scan, giving you additional valuable data for your post-scan review.
UI/UX Improvements

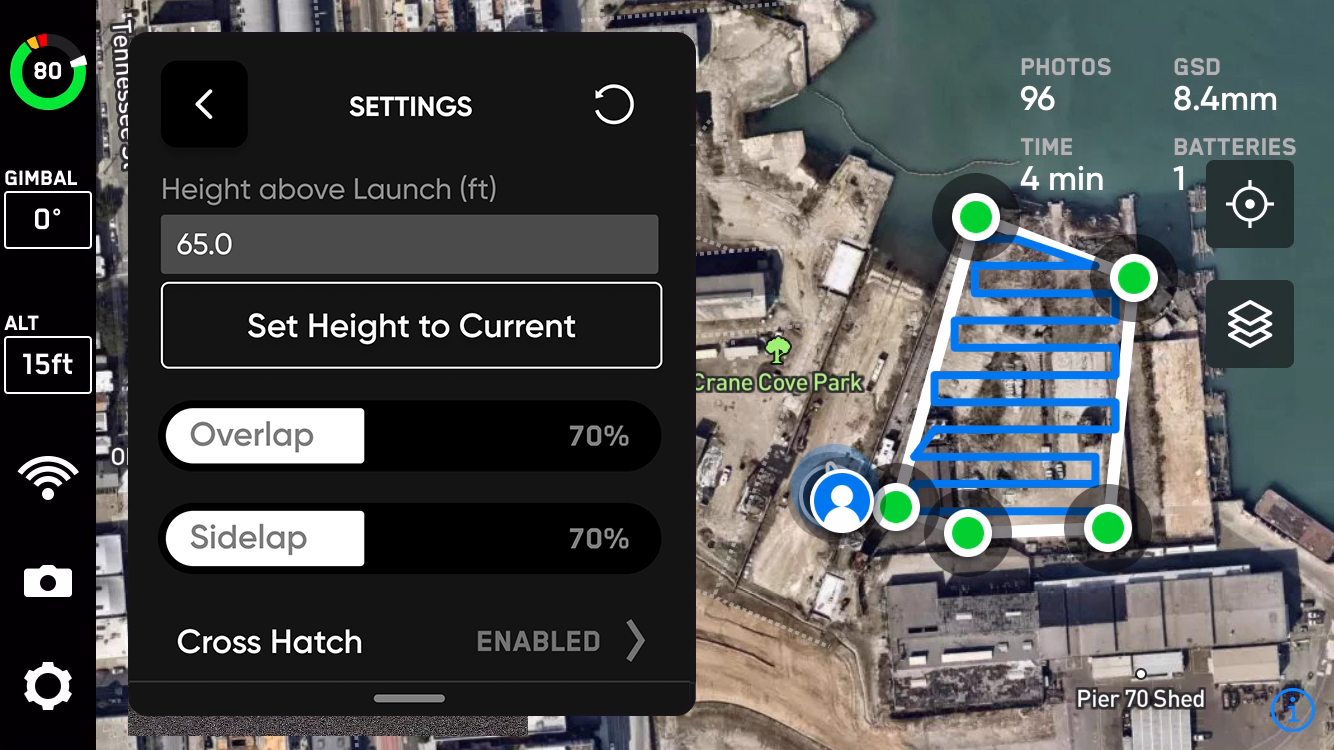

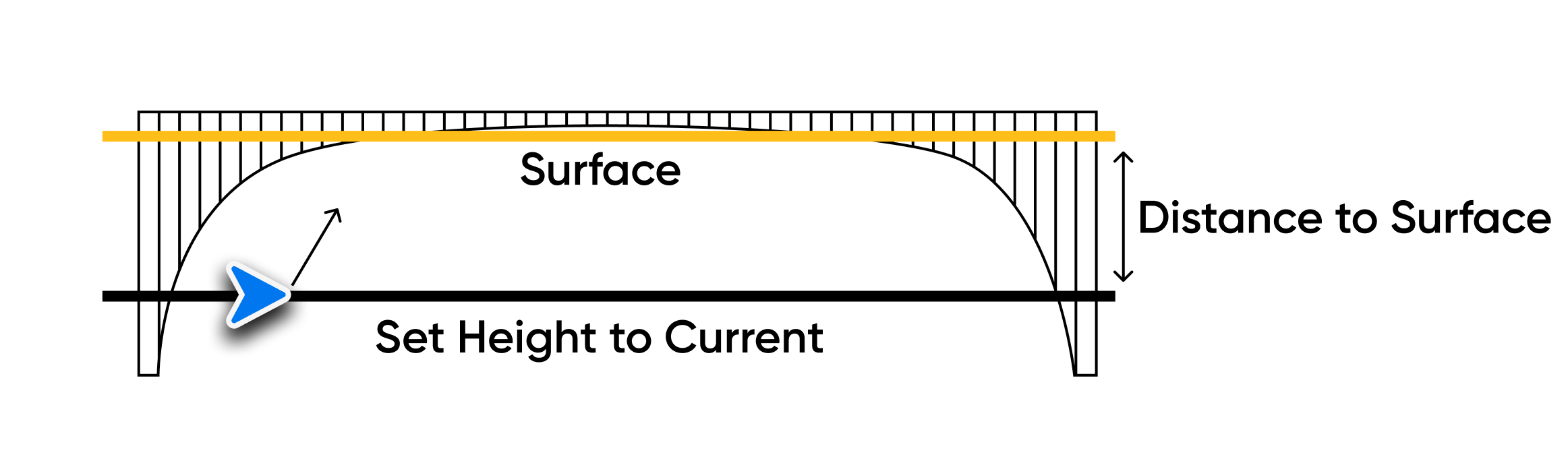

New text field entry for 2D GPS Capture Height. You now have the ability to manually enter your desired Height over Launch during a 2D GPS Capture.
Fly to your desired Height and select "Set Height to Current" or input a valid number between zero and your designated Height Ceiling into the text field.
October 14, 2021
Enterprise Android app version: |
15.10.5 |
Enterprise iOS app version: |
15.10.0 (6) |
Skydio 2 Drone software version: | 15.10.17 |

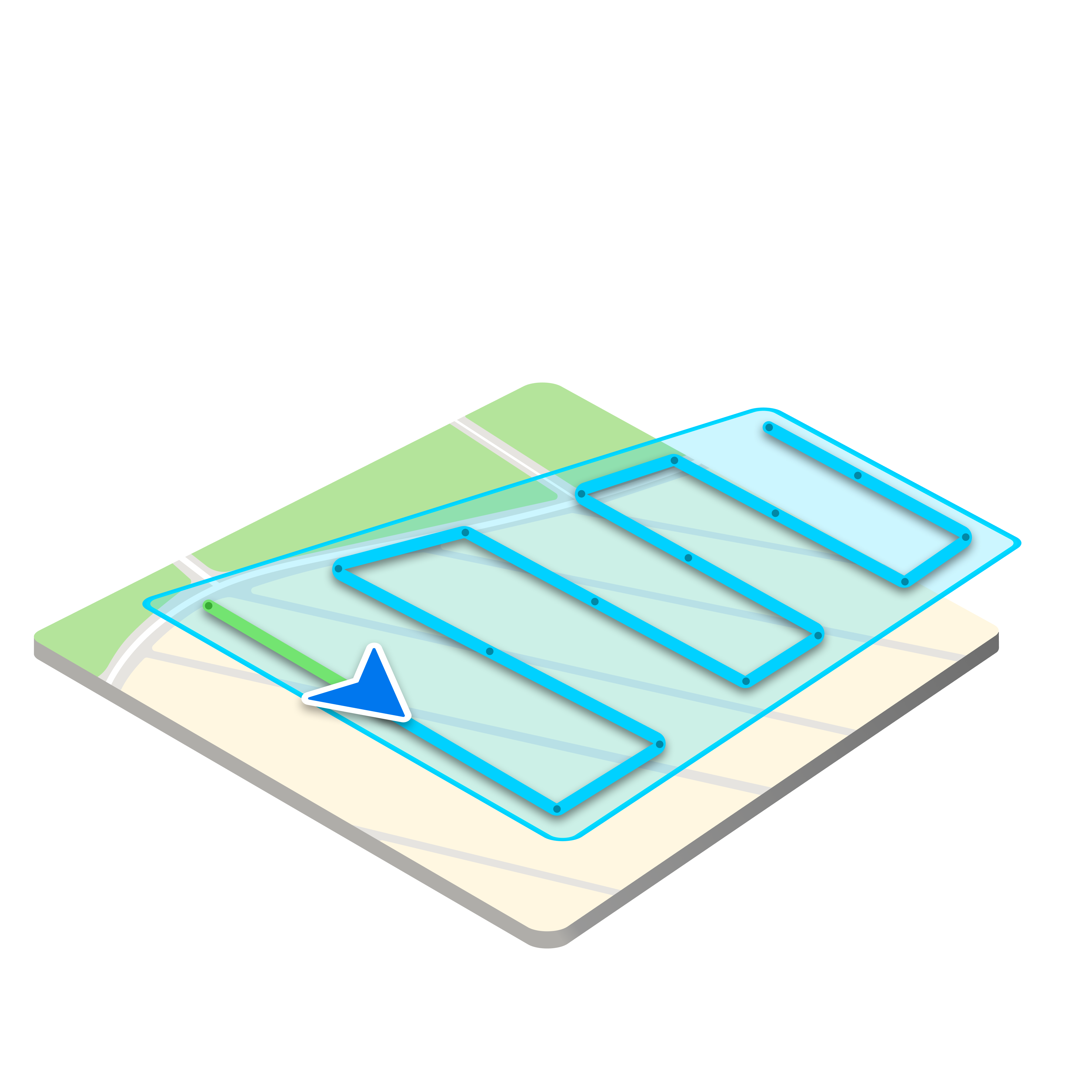

- Introducing 2D GPS Capture as a new 3D Scan capture mode. You now have the ability to preplan your flight using a top-down map view.
- This release brings performance improvements and stability updates to enhance your flying experience.
For more information visit:
September 28, 2021
Skydio is proud to announce exciting new features and enhancements to 3D Scan* in our software release version 15.9.
Enterprise App Version |
15.9.31 (iOS) 15.9.35 (Android) |
Skydio 2 Vehicle Software Version |
15.9.41 |
Skydio X2 Vehicle Software Version |
15.9.41 |
*Additional license required - To purchase Skydio 3D Scan contact a Skydio Sales Representative
Access Skydio 2 Enterprise Operator Manuals here.
Access Skydio X2E Manuals, Checklists, and Guides here.
New
Android Support
3D Scan is now supported on Android 9.0 (or higher) devices. Install the Skydio 2 Enterprise App for Android and ensure you have been provisioned with your Autonomy Enterprise Foundation (AEF)™ software add-on and 3D Scan™ software add-on.
3D Scan on Skydio X2
In addition to Android support, 3D Scan is now available on all Skydio X2 variants. Contact a Skydio Sales Representative to purchase the 3D Scan software add-on.
Adjustable Z Gimbal Pitch
By default, the gimbal angle during a Z Contour Slice scan pass is now set to 15 degrees below the horizon. This downward-facing image capture can lead to better reconstructions for certain structures like cell towers. Adjust your Z Slice gimbal pitch as-needed.
Enhancements
Adjustable Exploration Speed
Before the Explore phase begins, you now have the option to decrease the speed at which Skydio 2 or Skydio X2 performs this initial inspection. Adjust the flight speed from 1.1 mph - 5.6 mph (0.5 m/s - 2.5 m/s). The Explore phase should be a small fraction of the total scan time.
DNG Image Capture
DNG photos may now be captured when Stop for Photo is enabled. Access these files post-flight by connecting your drone or the Media Card to a laptop or computer.

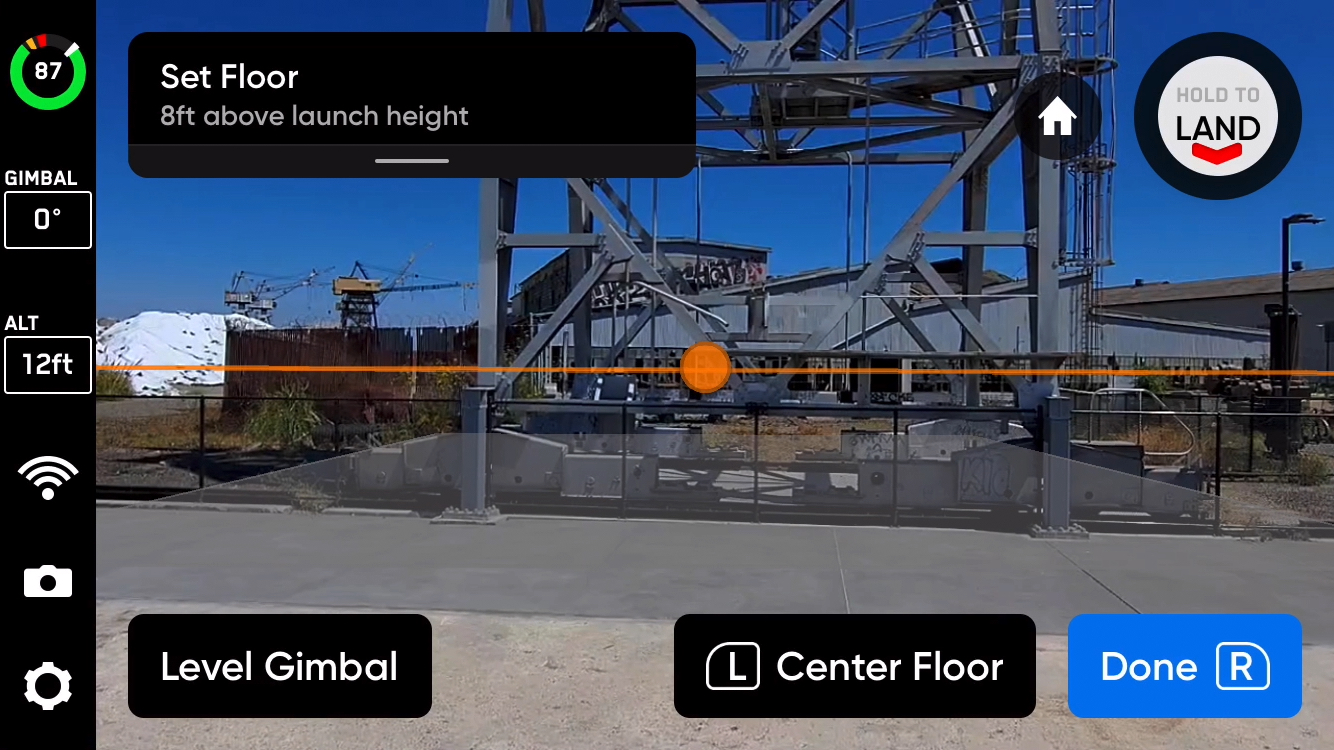

Floor and Ceiling
You no longer need to select "Move Floor" or "Move Ceiling" to update the current placement of these bounds. Fly to the desired location and the Floor/Ceiling will move with your drone as it flies. Additionally, you will notice a gray AR plane that denotes the launch height, making it easier for you to visualize where to set the Floor/Ceiling.

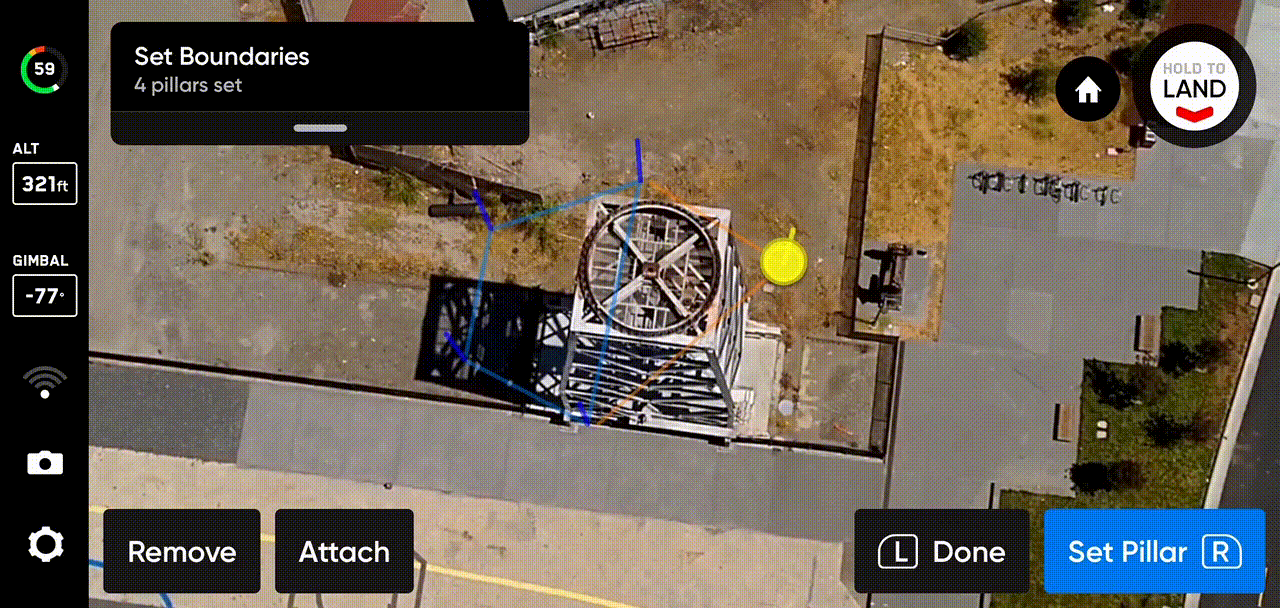

Draggable Pillar Placement
In addition to flying to place pillars, you may now easily drag them to encompass the structure you wish to scan. By default, the pillar is attached to the drone and will move as you fly. Enable dragging by holding on the screen to select the active pillar. You may continue to set pillars by dragging or select "Attach" to reconnect the pillar to the drone.
Explore More
Explore related articles for additional information
How to access Skydio 2 Enterprise Operator Manuals
How to use 3D Capture with 3D Scan
How to use 2D Capture with 3D Scan
If you have questions or need additional support—feel free to reach out! Skydio Support
