Skydio will not force an update for your system, however, for optimal performance, we recommend that you keep your Skydio system up-to-date. If an update is available, you will see a red notification icon in the Information menu.

[note] You must update the Skydio X10 Controller first before updating Skydio X10. It may take up to 30 minutes to update your drone depending on your WiFi environment. [/note]

Updating the Skydio X10 Controller

[note] If you are updating from version 37.2.32 or earlier to Asimov (39.237), you will be required to re-pair your drone and controller using a USB-C cable. Additionally, X10 Controllers must be claimed in Skydio Cloud in order to fly using Connect 5G. [/note]

Step 1 - Power on your Skydio X10 Controller

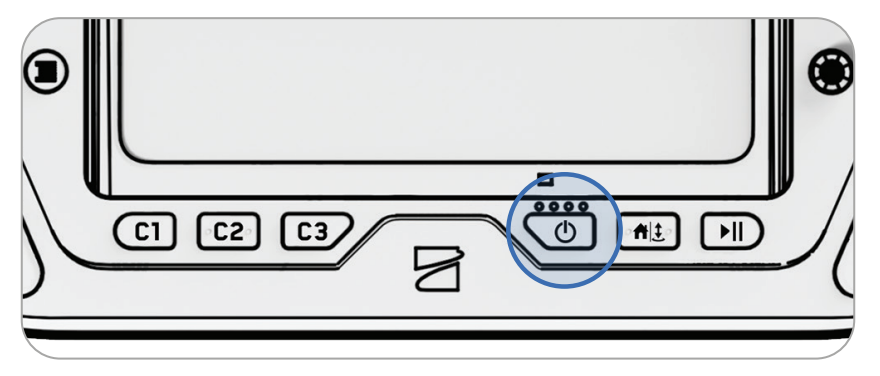

Open the controller lid and hold the Power button for three seconds.

 Screenshot 2023-11-27 at 10.41.43 AM.png

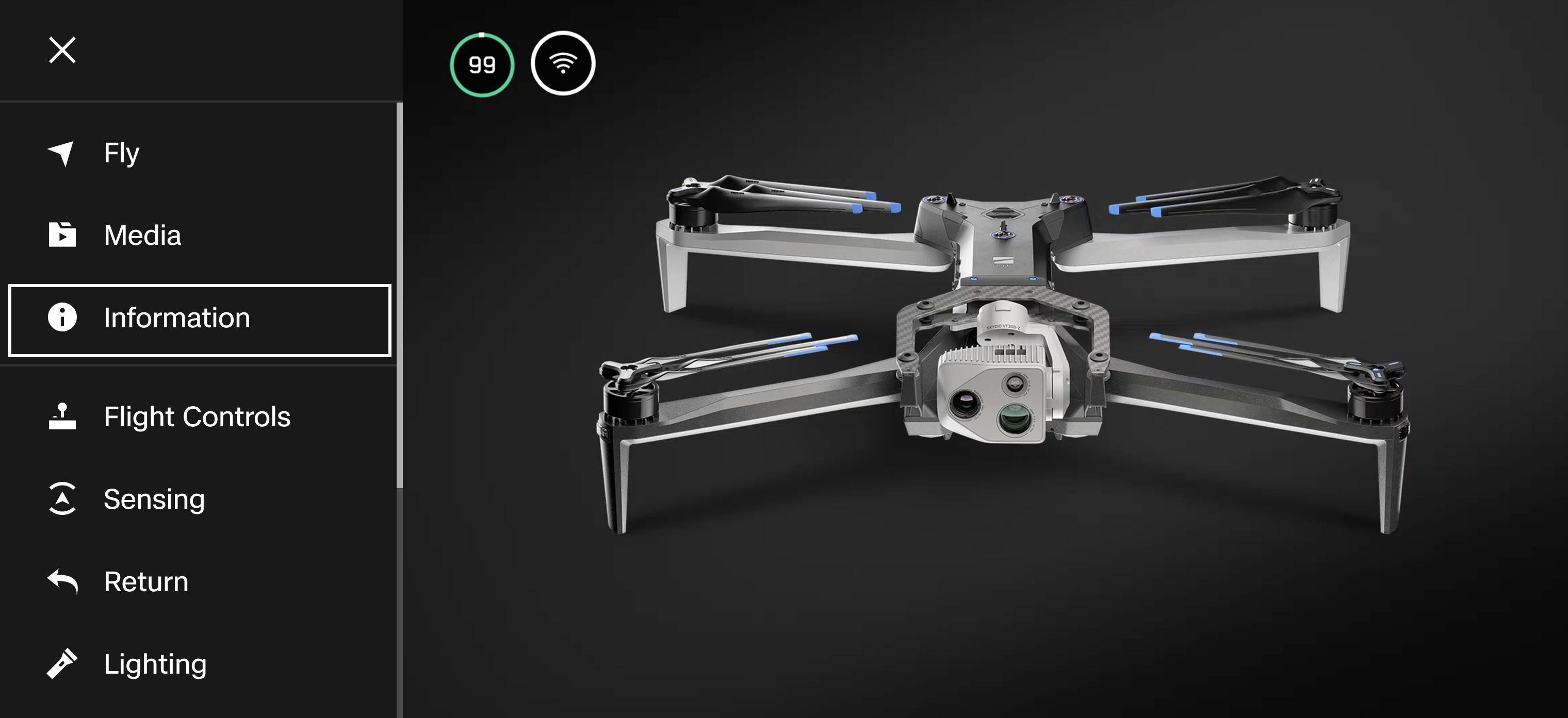

Step 2 - Navigate to the Information menu

Located within Global Settings.

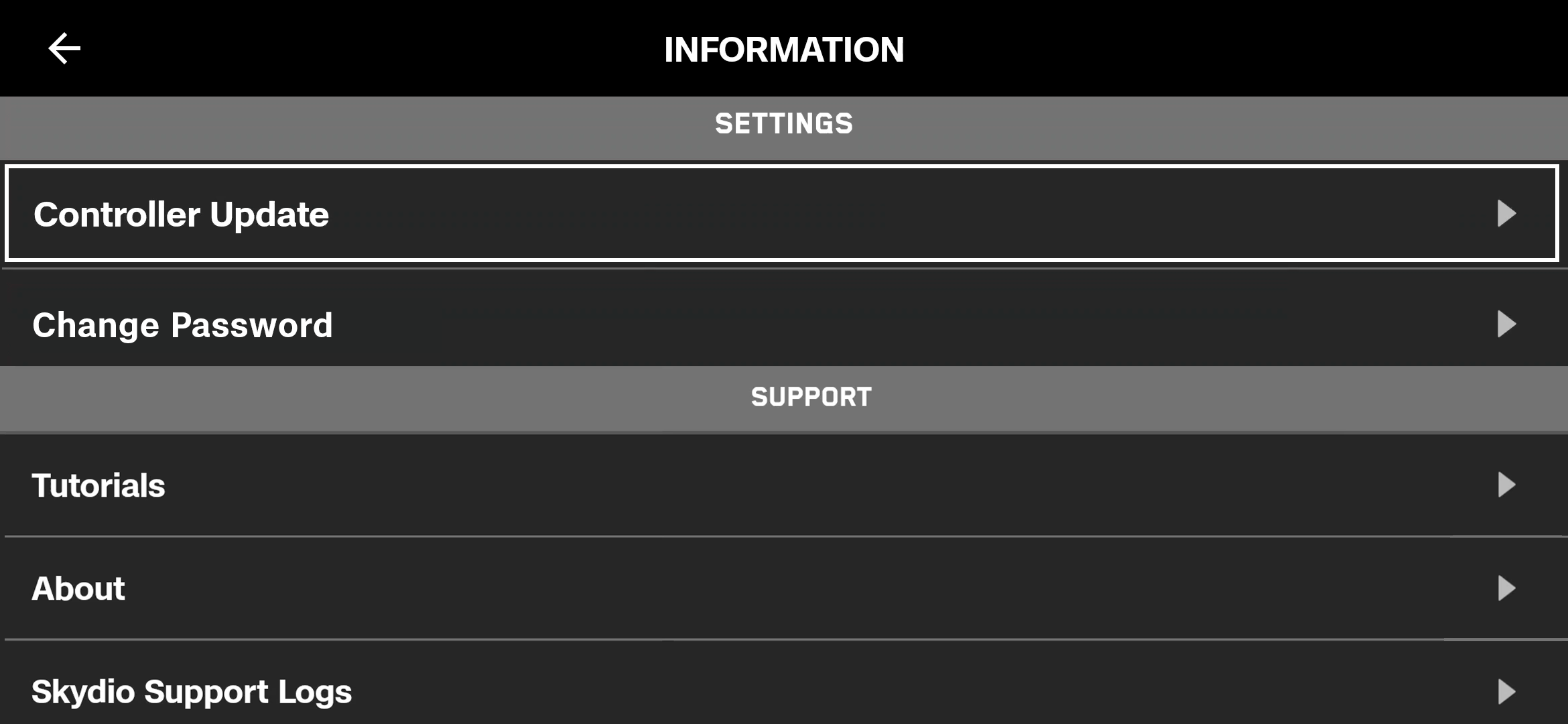

Step 3 - Select Controller Update under Settings CS_App3_media_UI_article_controller_update.png

Step 4 - Select Check for Update

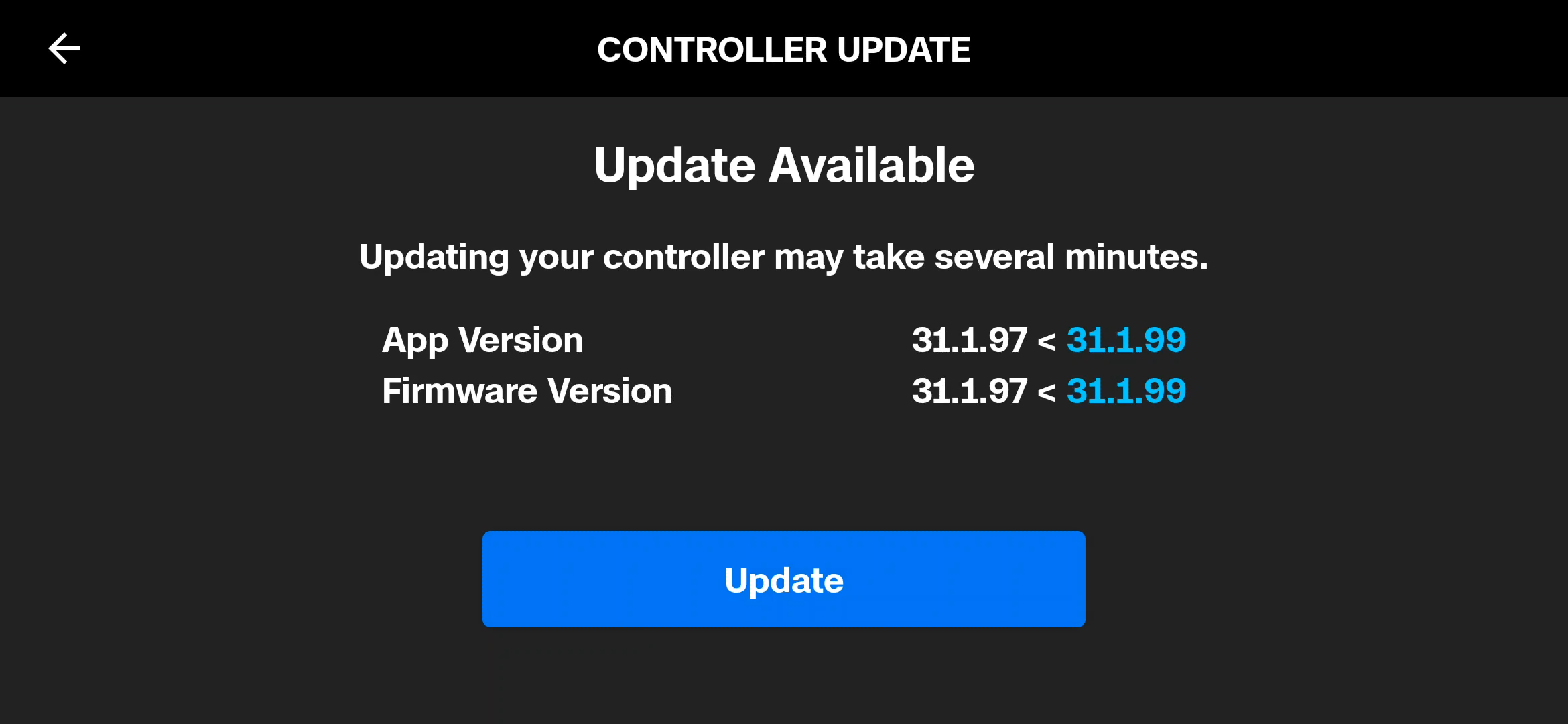

Step 5 - Select Update

Follow the on-screen prompts to update your controller.


Updating Skydio X10

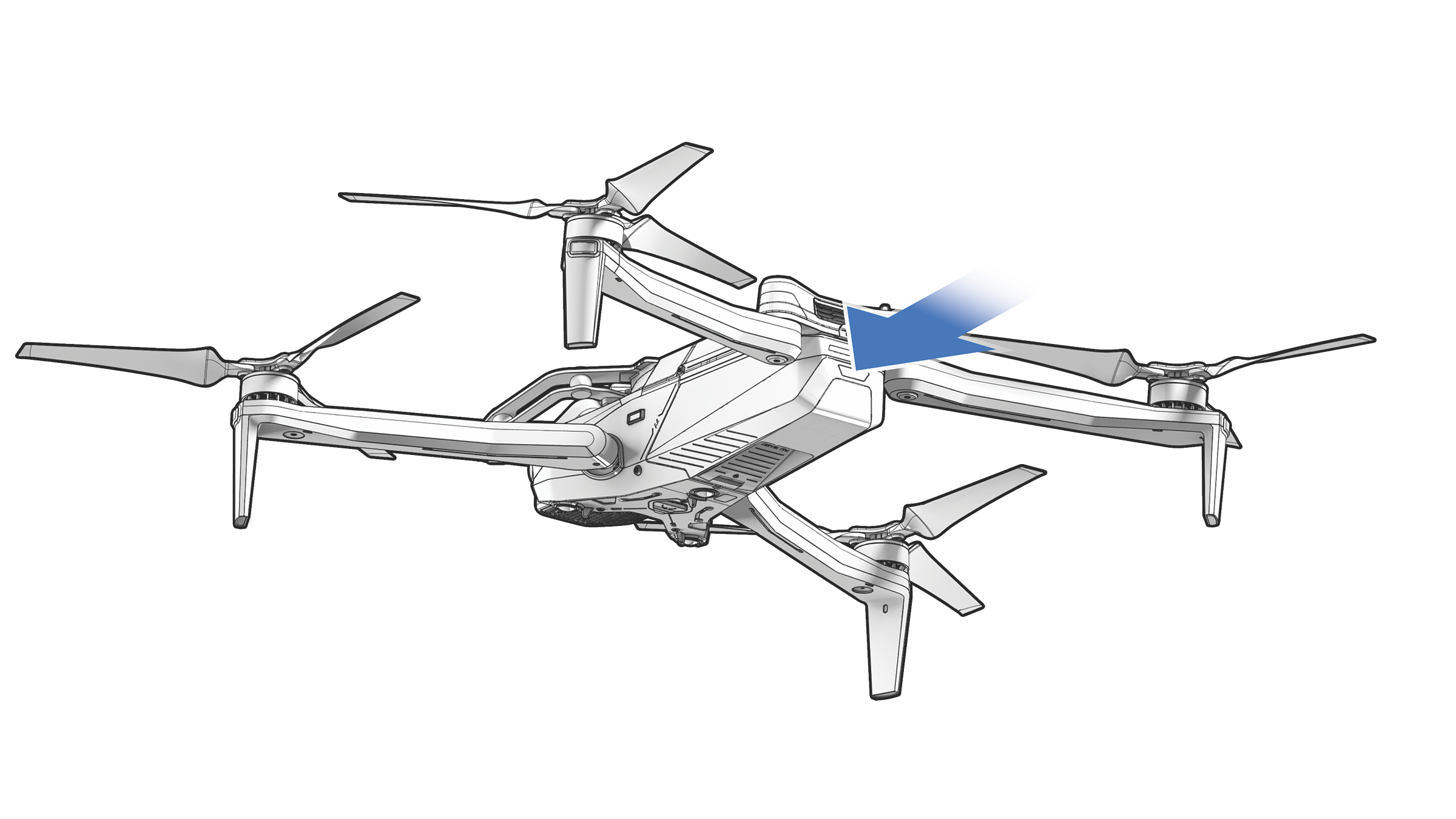

Step 1 - Power on Skydio X10

Press and hold the battery button for three seconds.


Step 2 - Power on your Skydio X10 Controller

Open the controller lid and hold the Power button for three seconds.

 Screenshot 2023-11-27 at 10.41.43 AM.png

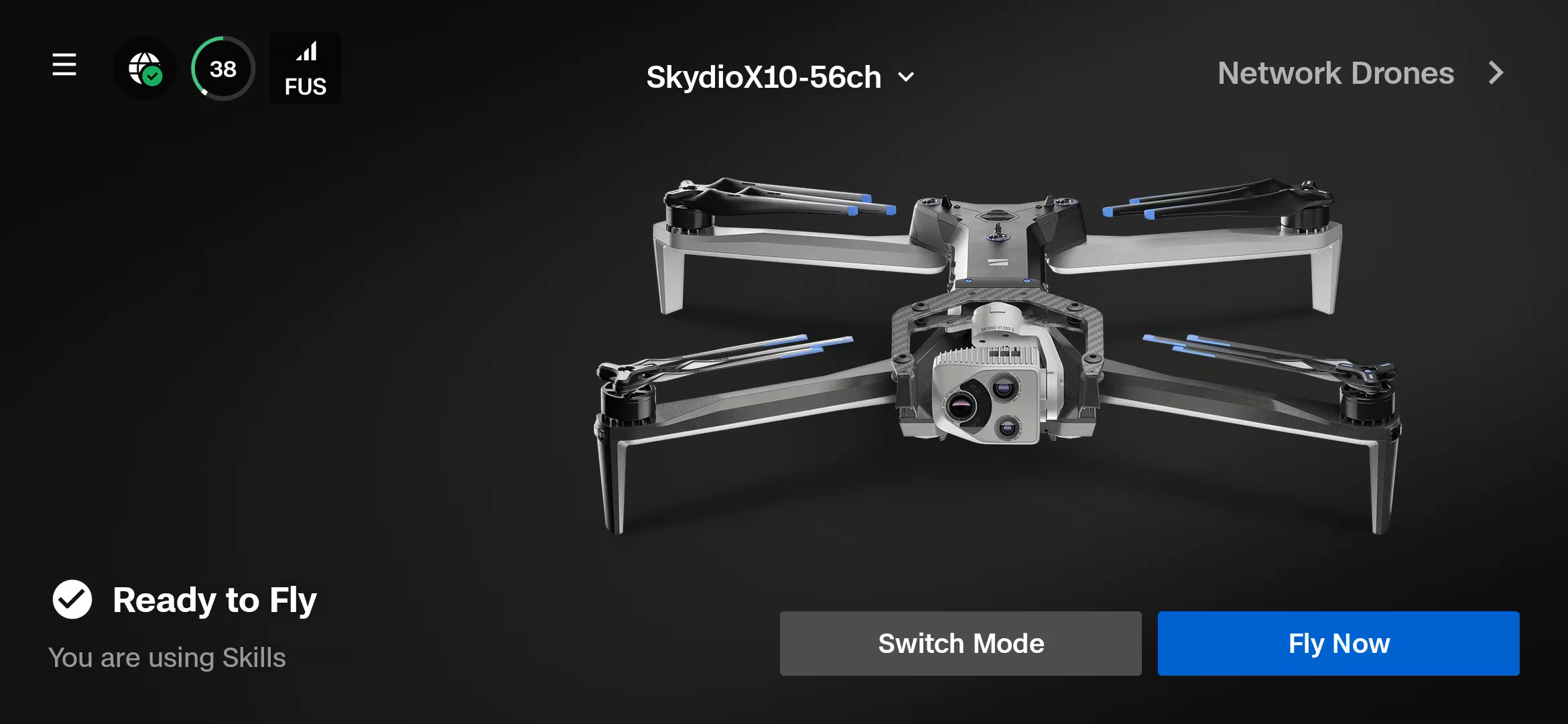

Step 3 - Navigate to the Information menu

Located within Global Settings.

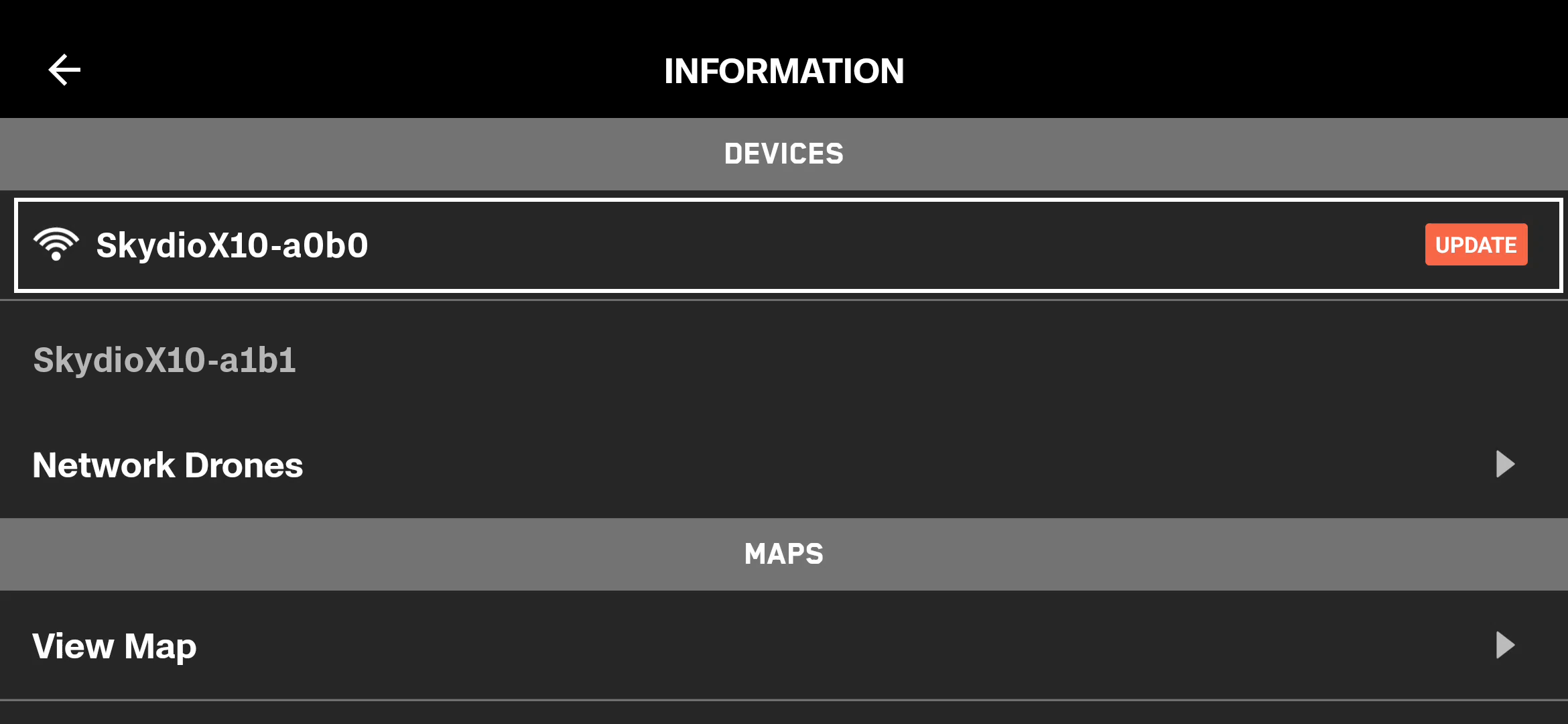

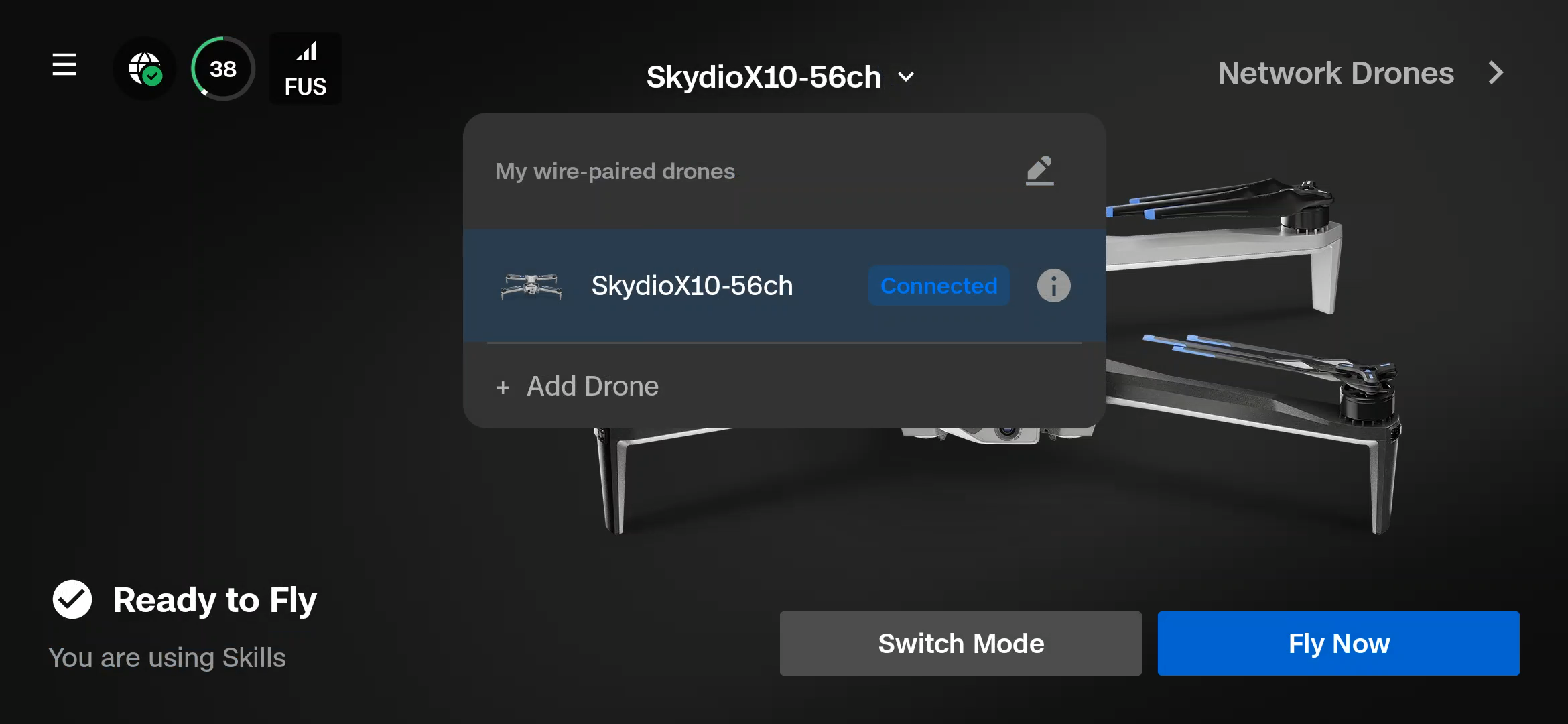

Step 4 - Select your Skydio X10 under Devices

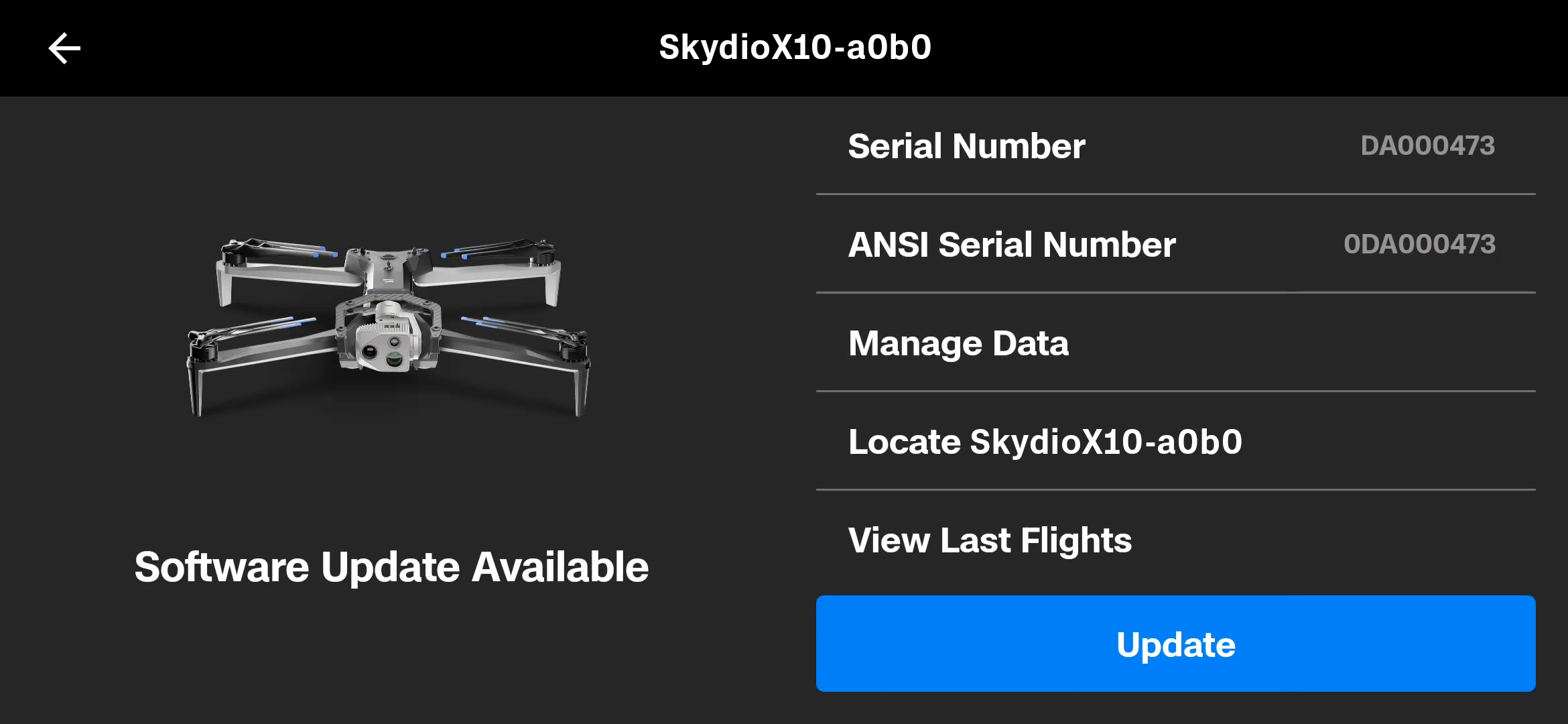

Step 5 - Select Update

Follow the on-screen prompts to update your drone.

Select Check for Updates anytime to look for available updates.


Step 6 - Wait for update to complete



After installing the update, you will be routed back to the main Gate Screen. The drone will reboot and the update will continue on the drone for up to 5 more minutes.

  • The sensor package will disengage and go slack

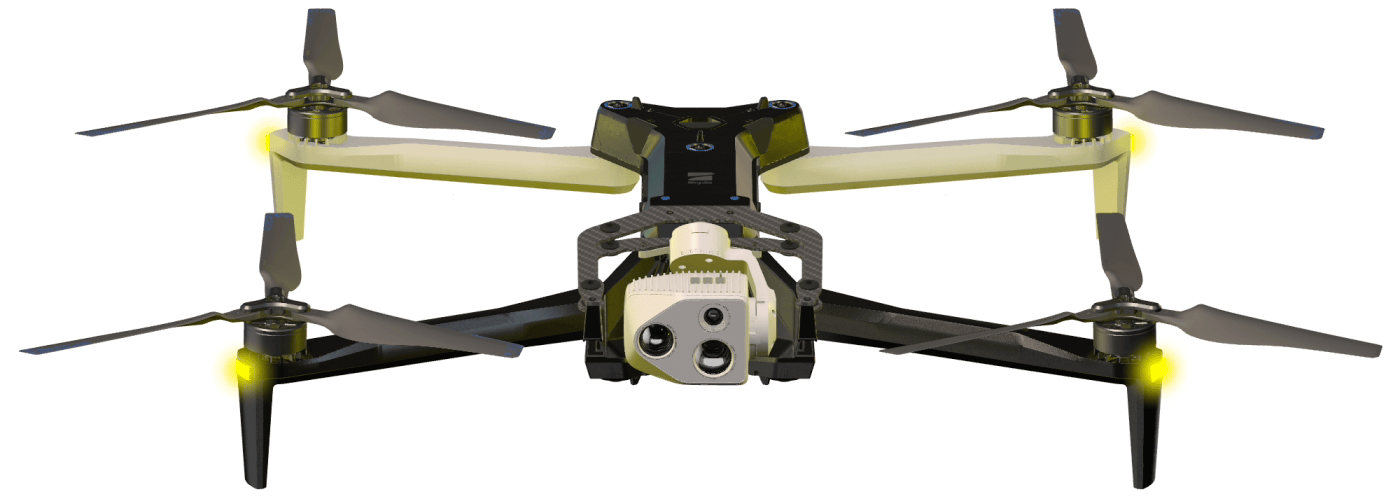

LED Behavior

Update Status

Lights
Initializing


Solid yellow
0-12%


Facing the front of the drone:

Front left arm flashing yellow
12% - 25%


Facing the front of the drone:

Front left arm solid yellow
Back left arm flashing yellow
25% - 37%


Facing the front of the drone:

Front left arm solid yellow
Back left arm solid yellow
Back right arm flashing yellow
37% - 50%


Facing the front of the drone:

Front left arm solid yellow
Back left arm solid yellow
Back right arm solid yellow
Front right arm flashing yellow

50% - 100%



Breathing yellow
[note] The LEDs may flash on and off during 50% - 100% completion. [/note]

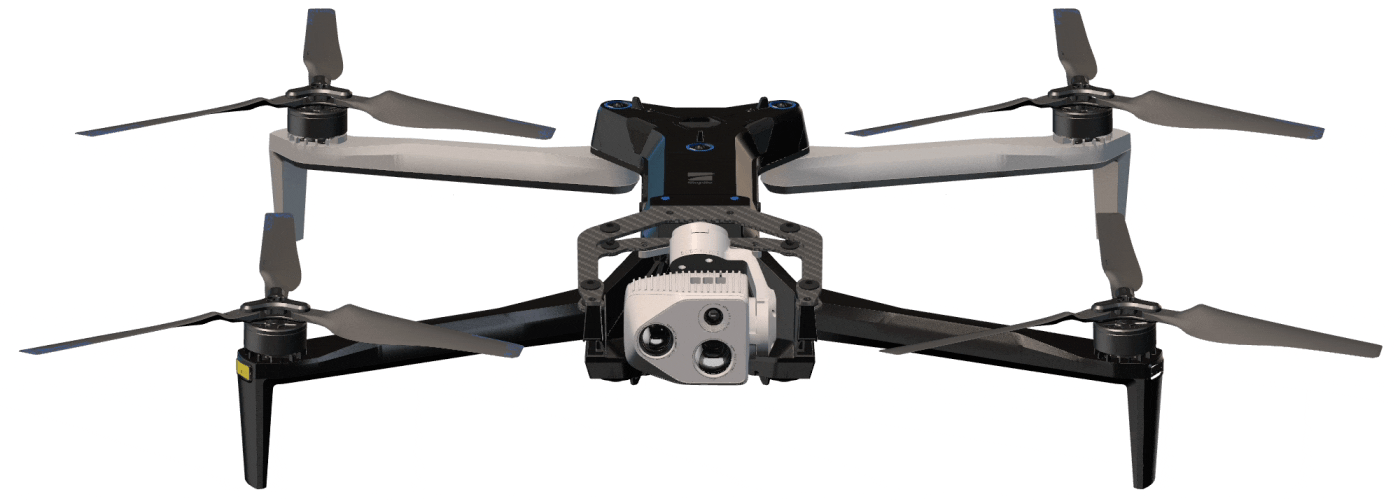

Complete X10_GREEN_SOLID.gif
Error X10_RED_BLINKING_F8F8F8.gif
