How to Run Missions from Dispatch

Remote pilots can search for and run pre-configured missions for their organization from the Dispatch map in Remote Flight Deck (RFD).

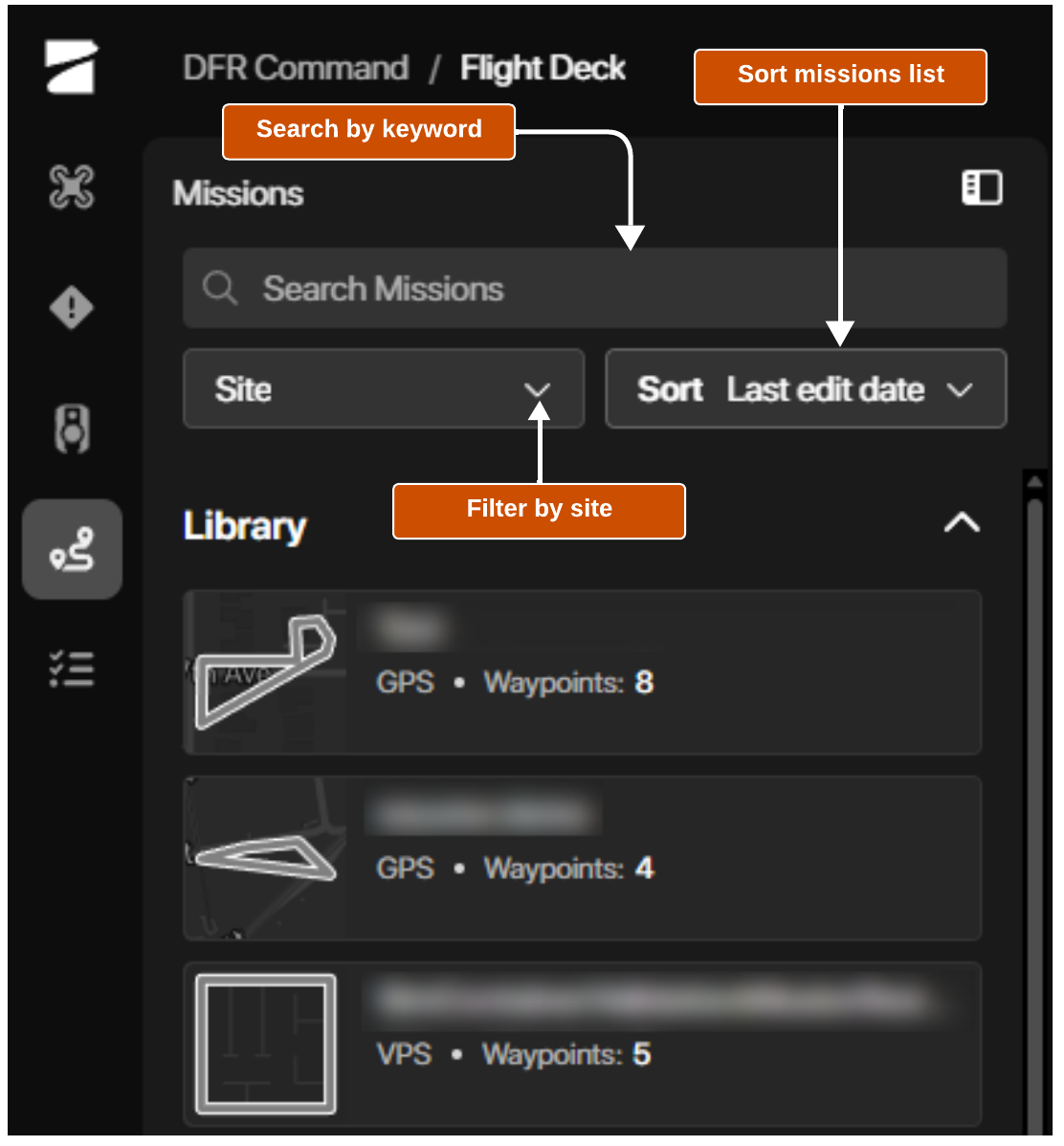

The Missions tab in RFD displays a scrollable list of missions belonging to the pilot’s organization. From the missions tab, pilots can:

• Search for specific missions by name, filter by site (if needed), and sort missions by Name (A→Z), Last edit date, and Last run time.

• Select a mission from the list to preview waypoints/capture boundaries on the map and view mission details.

• Select an available drone and run the mission.

To get started:

1. Go to DFR Command > Remote Flight Deck to open the Dispatch map.

2. Select the Missions tab from the Dispatch sidebar. The list of available missions in the cloud library of the pilots organization appears.





3. From the list of missions, the following actions are available:

   1. Use type-ahead search to search for missions matching a specific keyword.

   2. Filter the list of missions by Site.

   3. Sort the list of missions by Name, Last Edited Date, or Last Run Time.

To run a mission:

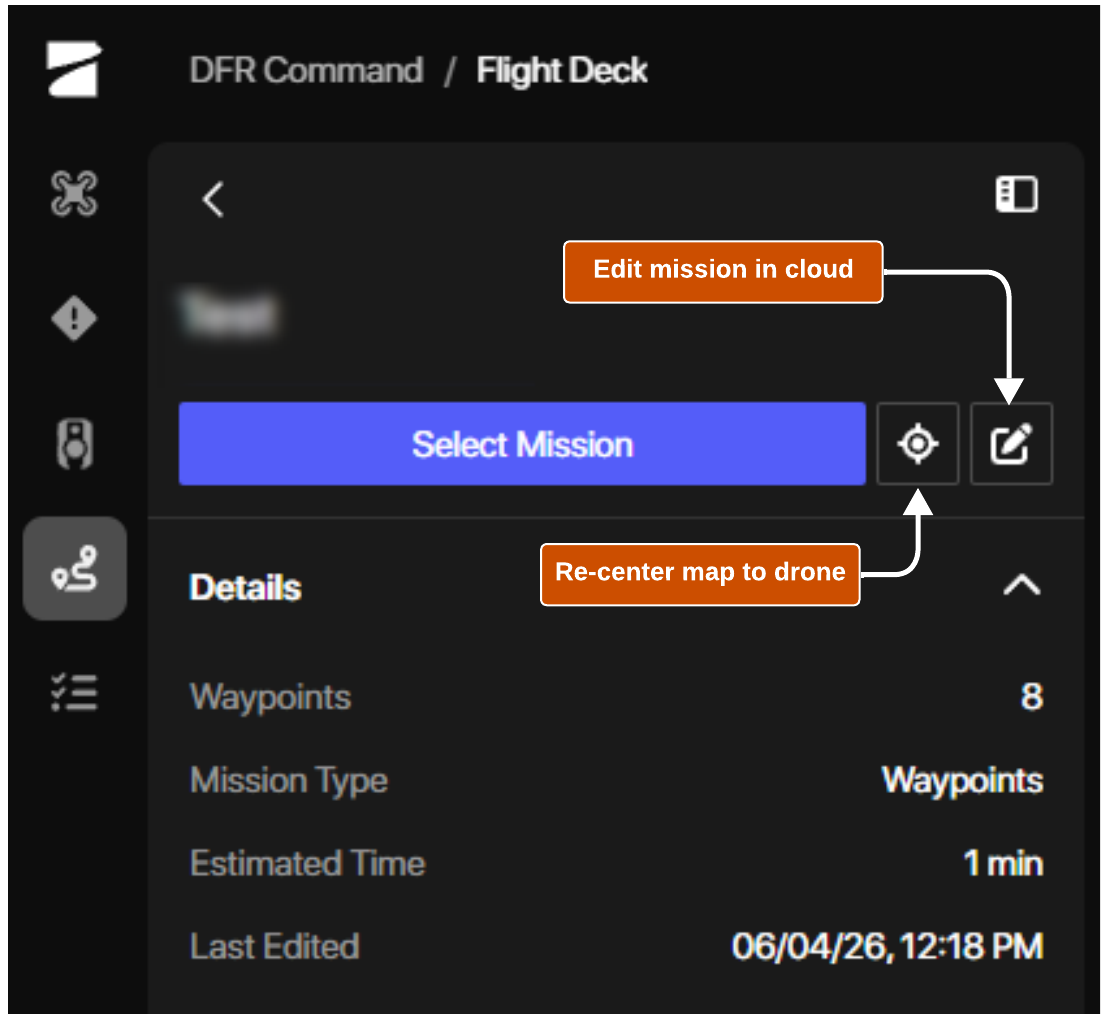

1. Select the mission from the Dispatch sidebar. The sidebar refreshes to display Mission details.





2. Click Select Mission. The drone select screen appears and the Dispatch map changes to show the mission location in relation to the closest available drone. The drone list is sorted by proximity to the mission.

3. Select an available drone from the list to view its status, camera, weather, and additional information.

4. Click Run Mission. The drone executes its pre-configured mission.

• A mission cannot be run if there no available drone within range.

• If a mission is incompatible with the current drone fleet, the screen displays a warning. Skydio recommends editing the mission to be compatible whenever possible.
