How to charge and maintain your Skydio X2 batteries

Skydio X2 batteries are seated using magnets that may potentially attract metallic debris.  Prior to installing your battery, visually inspect the magnets and connector pins, to ensure that they are clean and free of debris or damage. DO NOT use if damage has occurred to magnets or connector pins.

Charging your batteries using Skydio Dual Charger

The Dual Charger is capable of simultaneously providing current to two batteries. However, it will prioritize fully charging the battery with the highest charge level. The excess input power will begin charging the second battery. Allow approximately two hours to fully charge batteries.

Step 1 - Slide one or both batteries down the guard rails onto the dual charger magnets will engage, properly seating the battery

Step 2 - Connect the provided USB-C cable to the 100 W power adaptor

Step 3 - Plug the power adaptor into a 100-240 V power source flashing lights indicate charging no light indicates that the charge is complete

Charging your battery using Skydio X2E:

Step 1 - Slide the battery into the battery tray until it is fully seated

Step 2 - Connect your X2 using the provided USB-C cable and 100 W power adaptor

Step 3 - Plug the power adaptor into a 100-240 V power source X2 will power on  the battery lights will begin to flash, indicating charging X2 will power off indicating charging is complete

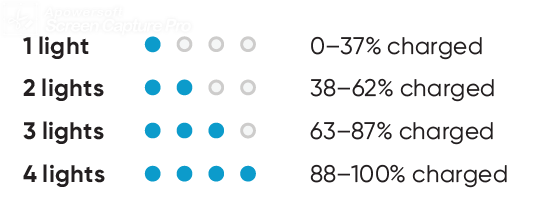

Skydio X2E battery Charge Levels

The current charge level is accessed by pressing the power button on the battery. The battery charge level is indicated by the lights:

Life Cycle

The lifespan of a Skydio X2 battery is 1 year or 200 battery cycles. After this point, you may experience a decline in charging and performance. Battery life is highly dependent on your use case, and Skydio recommends replacing your battery when the flight time has degraded below what is acceptable for your use case.

Hibernation

A battery in a hibernating state will not charge above 50% or charge on using the Dual Charger. To wake a battery from a hibernating state:

• • fly your Skydio X2 in an open, safe environment until a forced low-battery landing occurs
  • charge the battery while connected to Skydio X2 for 5-10 minutes and then transfer to the Dual Charger

Safety Guidelines

Skydio X2 uses lightweight, rechargeable lithium polymer batteries (LiPo) that provide higher specific energy than other lithium batteries. Following the guidelines listed below will ensure long battery life and safe operation of your X2.

Temperature

• • Charging should be completed in an open area
  • It is normal for the device to become warm to the touch
  • Do not operate Skydio X2 or charge batteries at temperatures below 14°F (-10°C)
  • Warm batteries in a room-temperature environment - DO NOT use higher heat (hairdryer, etc.) to accelerate heating
  • Do not charge your batteries when the ambient temperature is above 95°F (35°C)

Storage

• For maximum longevity, we recommend storing batteries at 50% charge. If capacity is greater than 50%, the battery will automatically begin self discharging after 14 days.
  • Storing your battery at very low states of charge may lead to damage and is not recommended.
• Batteries in an idle state (14 days of idle time with no flights) will start to self-discharge in an effort to retain capacity. This may take several days to complete and it is normal for the battery to be slightly warm during this discharge process.
• Store batteries at room temperature 71°F - 82°F (22°C - 28°C)
• Store batteries in a cool, dry area with less than 75% relative humidity
• Fully charge and discharge batteries every two months
  • If batteries have been stored for an extended period of time (2 months or longer), fully charge and discharge your batteries by flying in a controlled environment until it reaches the Low Battery landing threshold. Recharge before storing again.
  • Completing a maintenance cycle every 3-6 months is best practice for lithium batteries.

Damage

• • Do not disassemble the batteries, power adaptor, or dual charging docks
  • Avoid dropping or striking the batteries
  • Do not attempt to use batteries that are damaged, dented, or ruptured after a crash or drop
  • Do not immerse the batteries, charger, or charging docks in water or other liquids
  • Lithium polymer batteries can leak, overheat, melt, release harmful gas, burst or ignite when exposed to heat, water, and other liquids or when pierced, punctured, or ruptured
  • If any substances leak from the battery pack and get into your eyes, do not rub them. Seek medical attention immediately!
  • Contact your local waste facility to verify if lithium polymer batteries are permitted for disposal in your regular waste
  • Do not insert any foreign material into the battery terminals
  • Do not disassemble the battery enclosure

Traveling

• • TSA and FAA guidelines state that spare (uninstalled) lithium batteries must be transported in carry-on baggage only.
  • When traveling with Skydio X2 in the United States, always pack the batteries in your carry-on luggage
  • For more info, visit FAA PackSafe
  • When traveling with Skydio X2 outside of the United States, check local regulations before transporting batteries
