Overview

Establishing a return location and return behaviors for your Skydio 2/2+ will ensure a safe return flight and landing. When a return is triggered, either manually or autonomously, Skydio 2/2+ will first ascend to a specified height to ensure that no obstacles, people, or animals will be in your drone’s return pathway. You can also adjust the speed and orientation for the return trip and set lost connection behaviors. Skydio 2/2+ will retain its current obstacle avoidance setting while returning.

Quick Steps

Customize return behaviors

Set a return location and home point:

Step 1 - Select the Return to Home icon  X2-user_guide-flying_x2-maps_icon-3__home_point_.png

Step 2 - Set a return location as either the Launch Point or your current location (Phone)

Step 3 (optional) - Select and hold a point on the map to create a Home Point or move the existing Home Point

    • you need to set your return location before each flight—Home Points are not saved between flights
    • Skydio 2/2+ will automatically return to a set Home Point if the communication link is lost unless otherwise specified in the waypoint settings
    • selecting a Home Point on the map will give you the option to fly to that location immediately or to remove it from the map

Set Return Behaviors:

Step 1 - Select the Settings icon  X2-user_guide-flying_x2-flight_screen_icon-1__device_settings_.png

Step 2 - Select the Drone tab

Step 3 - Select Return Behavior






The Return Behavior menu allows you to set:

    • Return Type
    • Return Height
    • Height Behavior
    • Drone Looks
    • Return Speed
    • Lost Connection




Step 4 - Set Return Type to GPS or vision

Visual return for flight in GPS-denied environments

    • requires returning to the Launch Point
    • Flying to a set Home Point or to your Phone requires GPS

Reference the table below to see how Skydio 2/2+ returns based on Return Type:

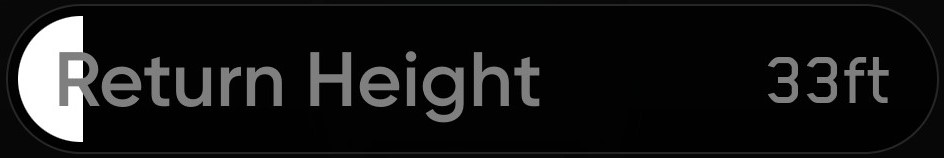

Step 5 - Select Return Height

    • set the height the drone ascends to before returning
    • set height from 0 - 400 ft (122 m)
    • default return height is set to 66 ft (20 m)




Step 6 - Select Height Behavior

Absolute - ascends to the specified Return Height above the launch point before returning

    • For example, if the Return Height is 32 ft and the drone is at 20 ft at the time the return is commanded, Skydio 2 will ascend 12 ft before returning.

Relative - ascends to the specified Return Height above the current position before returning

    • For example, if the Return Height is 32 ft and the drone is at 20 ft at the time the return is commanded, Skydio 2/2+ will ascend 32 ft and then return at a height of 52 ft.

Step 7 - Select Drone Looks

    • set Skydio 2/2+ to either look toward or away from the return destination while flying

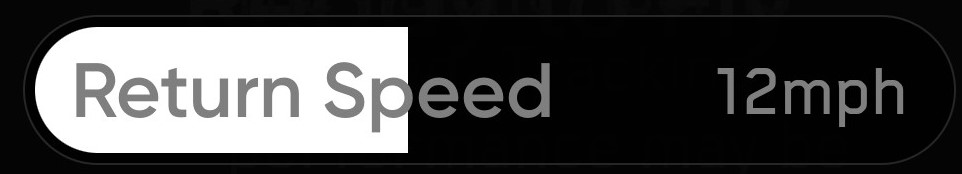

Step 8- set the return speed

    • from 5 - 22 mph (8-35 km/h)
    • using the slider




Step 9 - Select Lost Connection Return Behaviors to choose how your want your drone to behave if the signal to your controlling device is lost:

    • Return when Disconnected - toggle Off to disable Return when Disconnected and the Lost Connection menu. Skydio 2/2+ will not return if it loses connection—it will hover until it reaches low battery and land.
    • Wait Before Return - Specify the amount of time that you want Skydio 2/2+ to wait before it initiates a return flight, allowing time to reconnect.
    • Land Once Returned - When enabled, Skydio 2/2+ will return, hover for a specified amount of time, and land.
    • Wait Before Land - Specify the amount of time between 0 to 300 seconds (default - 240 seconds) that you want Skydio 2/2+ to wait before landing. Only available when Land Once Return is toggled on.



Explore More

Explore related articles for additional information

Access the Skydio 2/2+ Enterprise Manuals and Guides



If you have questions or need additional support—feel free to reach out! Skydio Support
