Built with unmatched intelligence, you can think of your Skydio drone as your personal film crew. Adjustable settings such as exposure, shutter speed, and ISO allow you to capture the perfect shot. In this article, we’ll define each of the settings available to you when capturing photo or video footage.

In-depth

Skydio captures photos and video, but cannot capture both at the same time. You may change your camera settings at any time before or during flight, but note that changing the camera settings before launch may cause your drone to return to the preflight screen and recalibrate its vision system.

[note] For best results, we recommend using the default settings. [/note]

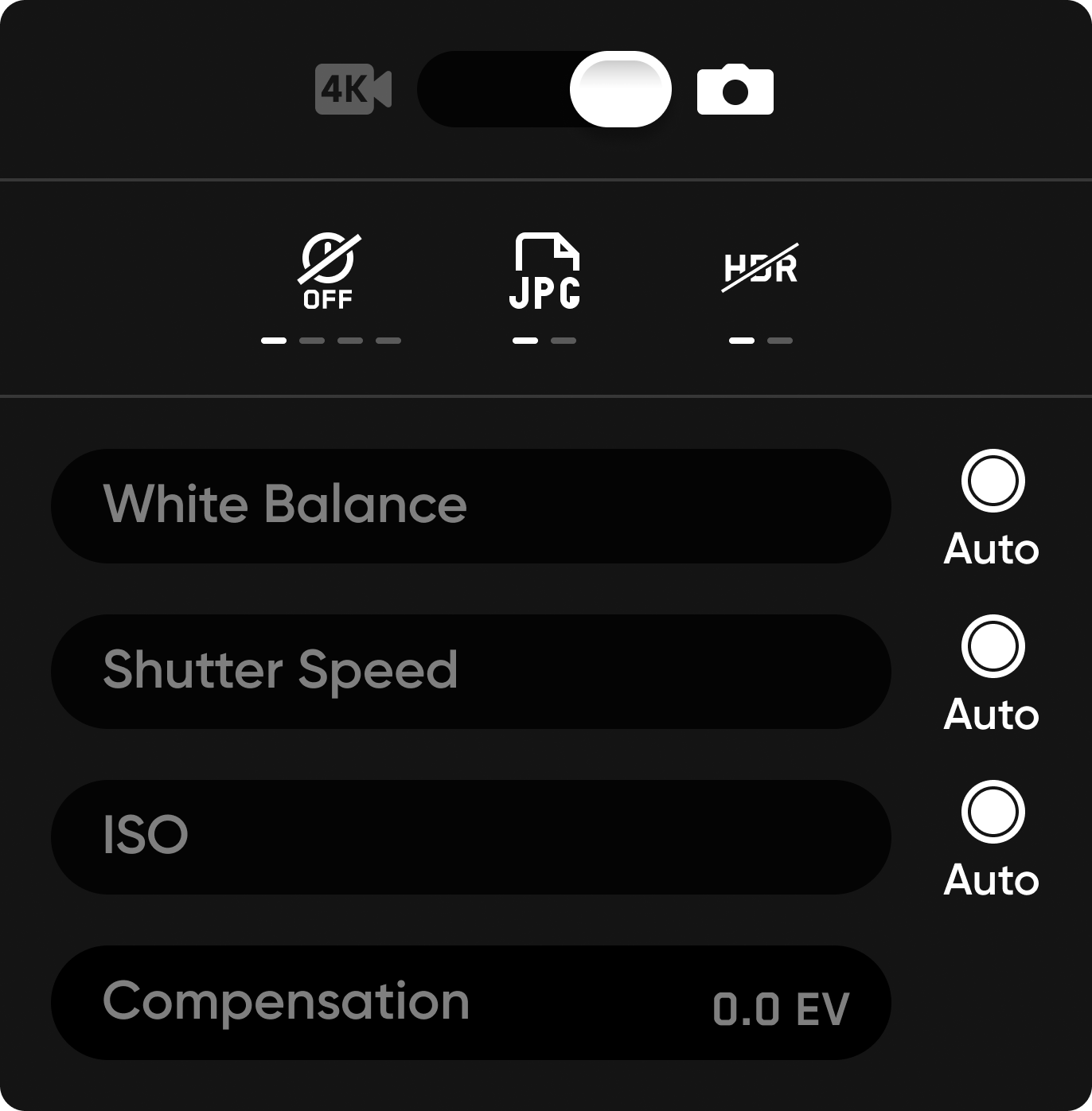

Photo capture settings

[note] The camera settings below apply to Skydio 2/2+, Skydio X2 Color, and the color camera on Skydio X2 Color/Thermal. Skydio captures photos in the sRGB colorspace. [/note]


Photo interval


When Photo Interval is enabled Skydio will continuously capture photos at the specified time interval until the setting is disabled or the flight ends.



JPG / JPG+DNG


A JPG file is a digital image format containing compressed image data. These are the images you captured during your scan. You will need these files for creating reconstructions in photogrammetry software programs.

A DNG file is a RAW image format file, meaning it is not compressed and retains all original photo data. A DNG file is larger than a JPG file since it stores image data. If you enabled DNG capture during your scan, you will need these files for creating reconstructions in photogrammetry software programs.

Choose whether you want Skydio to capture JPG images only, or both JPG and DNG files.

HDR

Toggle on HDR when flying in environments that range from bright direct sunlight to extreme shade. For more details, see What is HDR?

White Balance

White Balance is a setting that balances the color temperature in your photo. If the whites in your picture are too orange, for example, adding the opposite color (blue) will balance them out.

When set to Auto (default), Skydio will automatically adjust the White Balance for its environment.

If you’d like to manually control the White Balance, tap Auto to deselect it, then use the on-screen slider to set the White Balance to your desired value.

Shutter speed

The shutter speed is the rate at which the camera’s shutter opens and closes when taking a photo.

  • Slower shutter speed means greater exposure
  • Faster shutter speed means less exposure

When set to Auto, Skydio will automatically adjust the Shutter speed based on the available light.

Tap Auto to deselect it, then use the on-screen slider to manually set Shutter Speed to your desired value.

Compensation

Exposure refers to the amount of light the camera allows in. Exposure Compensation allows you to adjust the exposure value in your photos.

By default, the Compensation will be set to 0.0. Use the on-screen slider to adjust the compensation to your desired value.

ISO

ISO is a setting that will brighten or darken your photo. When in low-light conditions, raising the ISO value will brighten the image, however you may see some graininess.

When set to Auto, Skydio will automatically adjust the ISO for its environment.

If you’d like to manually control the ISO, tap Auto to deselect it, then use the on-screen slider to set the ISO to your desired value.

Video capture settings

[note] Skydio captures Rec.709 video footage. [/note]


Resolution

Resolution is measured in pixels and refers to the amount of detail in your video.

  • More pixels result in a high-resolution video
  • Fewer pixels result in a low-resolution video

When in the video mode settings, you can tap to switch between HD (1080p) and 4K resolution.

Frame rate

When in the video mode settings, you can tap on the framerate to switch between different options available for your chosen resolution:

  • Default: 4K 30fps
  • Best for ultra slow motion: HD (1080p) 120fps
  • Hi-res option for slow motion: 4K 60fps
Auto / Manual recording

By default, Skydio will be set to record video automatically. Tap this setting to switch to manual.

When set to manual, tap the shutter button in the app or on the Controller to start/stop video recording.

Video Codec

Skydio can record video in either AVC (H.264) or HEVC (H.265). Different mobile devices and personal computers have different compatibility with these encoding standards.

White balance

White Balance is a setting that balances the color temperature in your video. If the whites in your picture are too orange, for example, adding the opposite color (blue) will balance them out.

When set to Auto (default), Skydio will automatically adjust the White Balance for its environment.

If you’d like to manually control the White Balance, tap Auto to de-select it, then use the on-screen slider to set the White Balance to your desired value.

Shutter speed

The shutter speed is the rate at which the camera’s shutter opens and closes when taking a photo.

  • Slower shutter speed means greater exposure
  • Faster shutter speed means less exposure

When set to Auto, Skydio will automatically adjust the Shutter speed based on the available light.

Tap Auto to deselect it, then use the on-screen slider to manually set Shutter Speed to your desired value.

ISO

ISO is a setting that will brighten or darken your video. When in low-light conditions, raising the ISO value will brighten the video, however you may see some graininess.

When set to Auto, Skydio will automatically adjust the ISO for its environment.

If you’d like to manually control the ISO, tap Auto to deselect it, then use the on-screen slider to set the ISO to your desired value.

Compensation

Exposure refers to the amount of light the camera allows in. Exposure Compensation allows you to adjust the exposure value in your videos.

By default, the Compensation will be set to 0.0. Use the on-screen slider to adjust the compensation to your desired value.

What is HDR?

HDR (High Dynamic Range) captures and combines different exposure levels to create a more balanced image. Skydio HDR video uses digital image signal processing techniques to reconstruct frames with much higher dynamic range than is possible with a single frame and exposure.


HDR on


HDR off

[note] HDR is not supported in all video resolutions and frame rates. [/note]
