Live stream video feed from your Skydio drone to viewers logged into Skydio Cloud on a web or mobile browser. You must set up your Skydio Cloud account, add users and pilots, and claim your Skydio vehicles to use the Live Stream feature.

Supported Drones Supported Controlling Devices

Skydio X10

Skydio X10 Controller

Skydio X2

Skydio 2/2+

Skydio Enterprise Controller

  • version 19.0.42 or higher
  • on a 2.4 GHz wireless network

Skydio Controller (for Skydio 2/2+)

  • Android: version 19.0.42 or higher on cellular data/LTE or 2.4 GHz wireless network
  • iOS: version 19.0.0 (38) or higher on cellular data/LTE or 2.4 GHz wireless network

Mobile Device (Skydio 2/2+)

  • Android or iOS on cellular data/LTE



  1. Set up Skydio Cloud for Live Streaming
  2. Initiate a Live Stream
  3. View the Live Stream in Skydio Cloud
  4. Troubleshooting

Set up Skydio Cloud for Live Streaming

Step 1 - Log in to cloud.skydio.com

Step 2 - Add your vehicles to Skydio Cloud

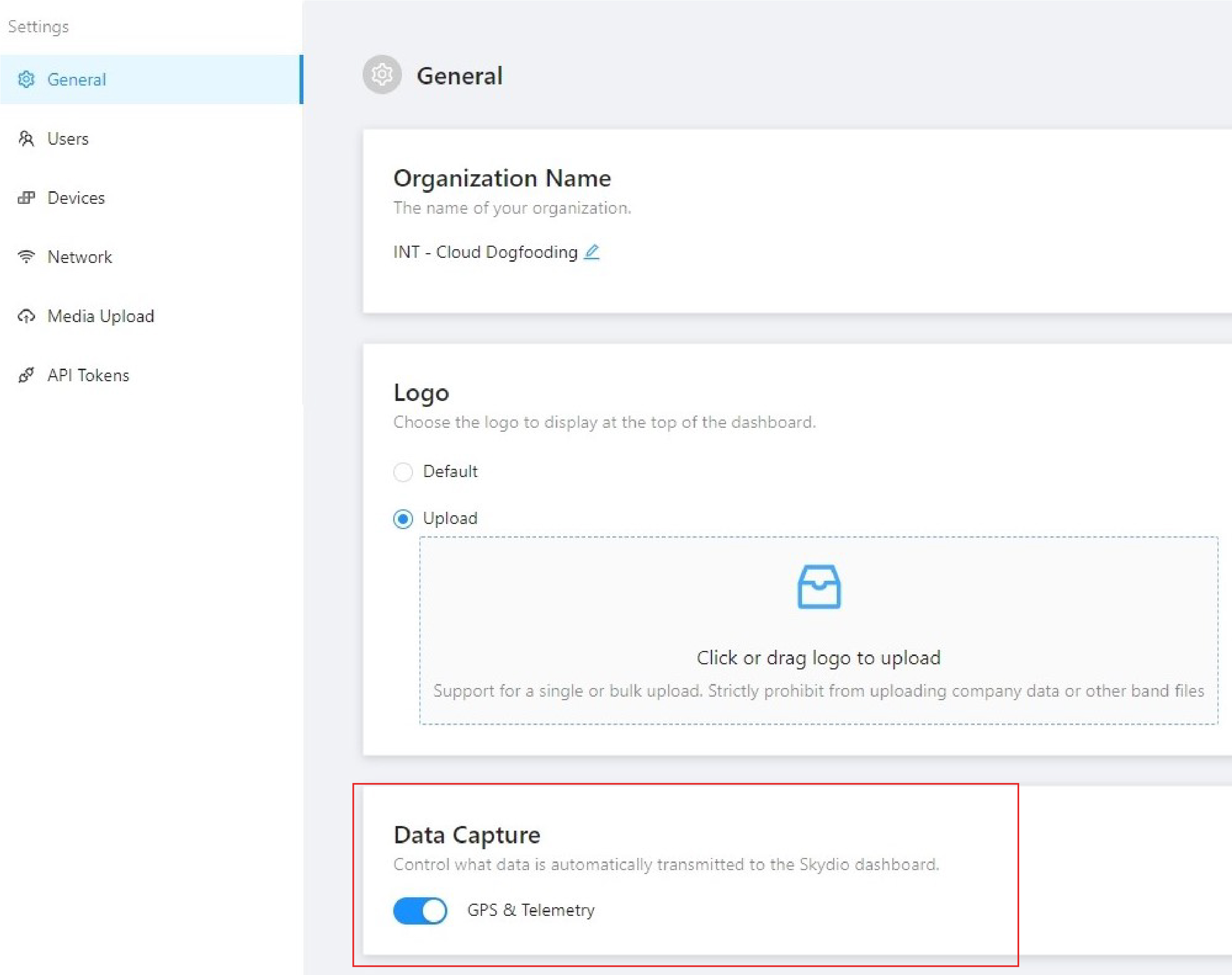

Step 3 - Toggle Data Capture on:
    • Select Settings
    • Scroll down to Data Capture
    • Toggle GPS & Telemetry ON

Initiate a Live Stream

For flights with Skydio 2/2+, X2, or X10 not over 5G cellular

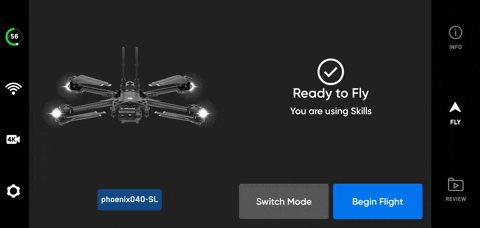

Step 1 - Power on your controlling device and connect to your drone

Step 2 - Ensure that your controlling device is connected to the Internet or a hotspot

Skydio X10 Controller

    • select the Global Settings menu and Information
    • select Network and WiFi settings to add an Internet or hotspot connection, OR toggle on Cellular Data

   Skydio Enterprise Controller

    • select the INFO menu and Device Settings
    • select Network and WiFi settings to add an Internet or hotspot connection

   Skydio Controller or phone

    • Connect your controlling device directly to the Internet or to a WiFi hotspot. If using WiFi, ensure connected over a 2.4 GHz network.
    • For iPhone hotspots (iPhone 12 model or later, iPad Pro 11-inch (3rd generation or later), iPad Pro 12.9-inch (5th generation or later), or iPad mini (6th generation)), select the maximize compatibility toggle on the hotspot menu (older iPhones may not have the maximize compatibility option).

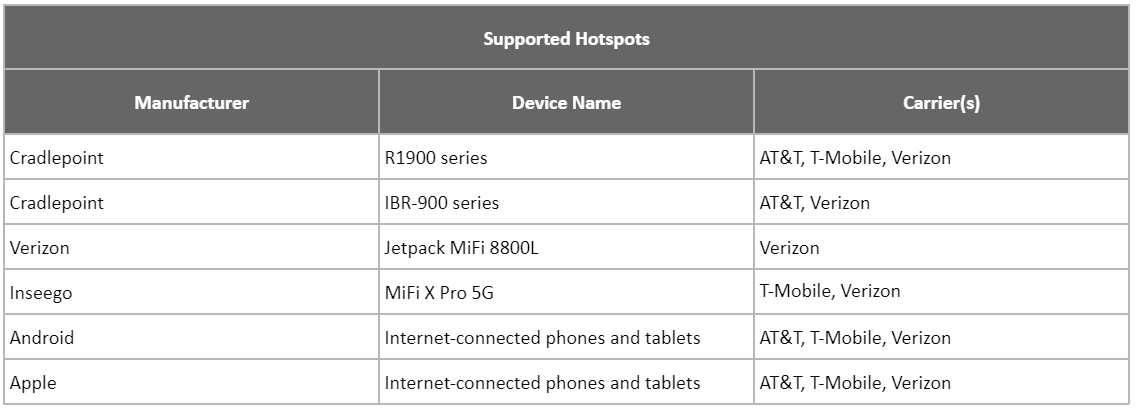

The supported hotspot table lists known and tested devices, other adapters may work.

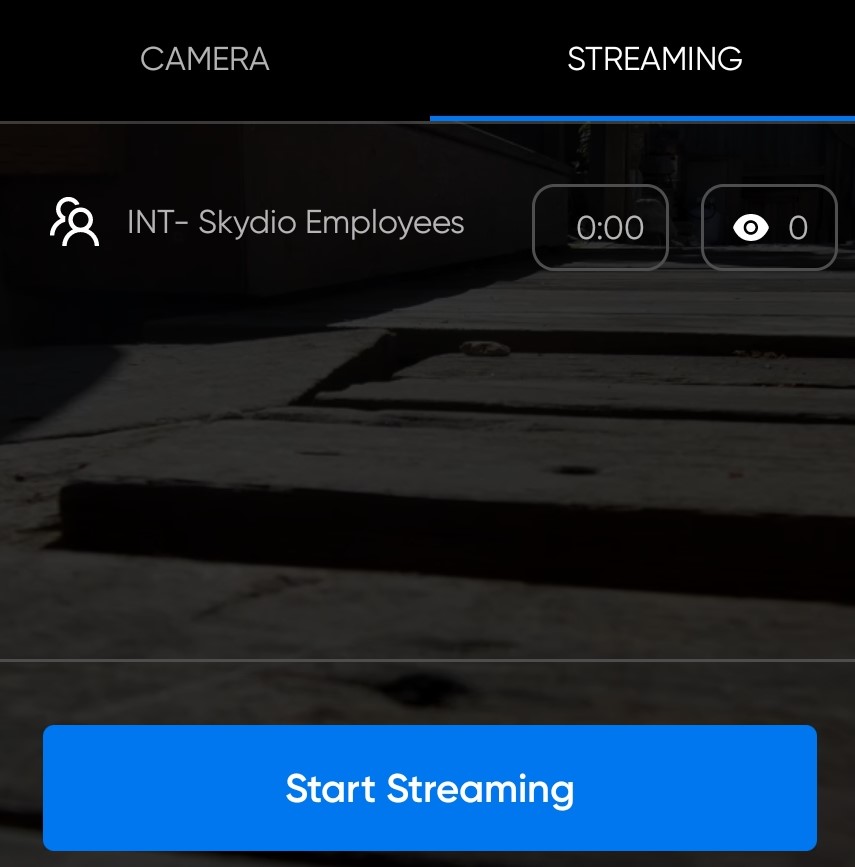

Step 3 - Select the video/camera icon and the Streaming tab




Step 4 - Select Start Streaming

    • start a live stream before or during a flight
    • to live stream a 3D Scan, start the live stream from the controlling device before you launch your drone

[note text="The quality of display on your controlling device while streaming may be degraded depending on the network quality. To revert to non-degraded video, stop the live stream. The bitrate for Live Stream can vary between 0.5 and 2.1 Mbps, depending on the signal link quality from your controlling device to your drone."]

Step 5 (optional) - Optimize the video quality for the pilot or viewers

  • Select the Camera icon
  • Select Streaming and Quality Preference


Step 6 (optional) - Set the thermal palette to live stream from Skydio X2 Color/Thermal

    • Select the Device settings menu icon
    • Select the Controller tab
    • Select On Screen Display
    • Select Thermal and toggle On Screen PIP On

View the Live Stream in Skydio Cloud

Step 1 - Log in to cloud.skydio.com on a web or mobile browser

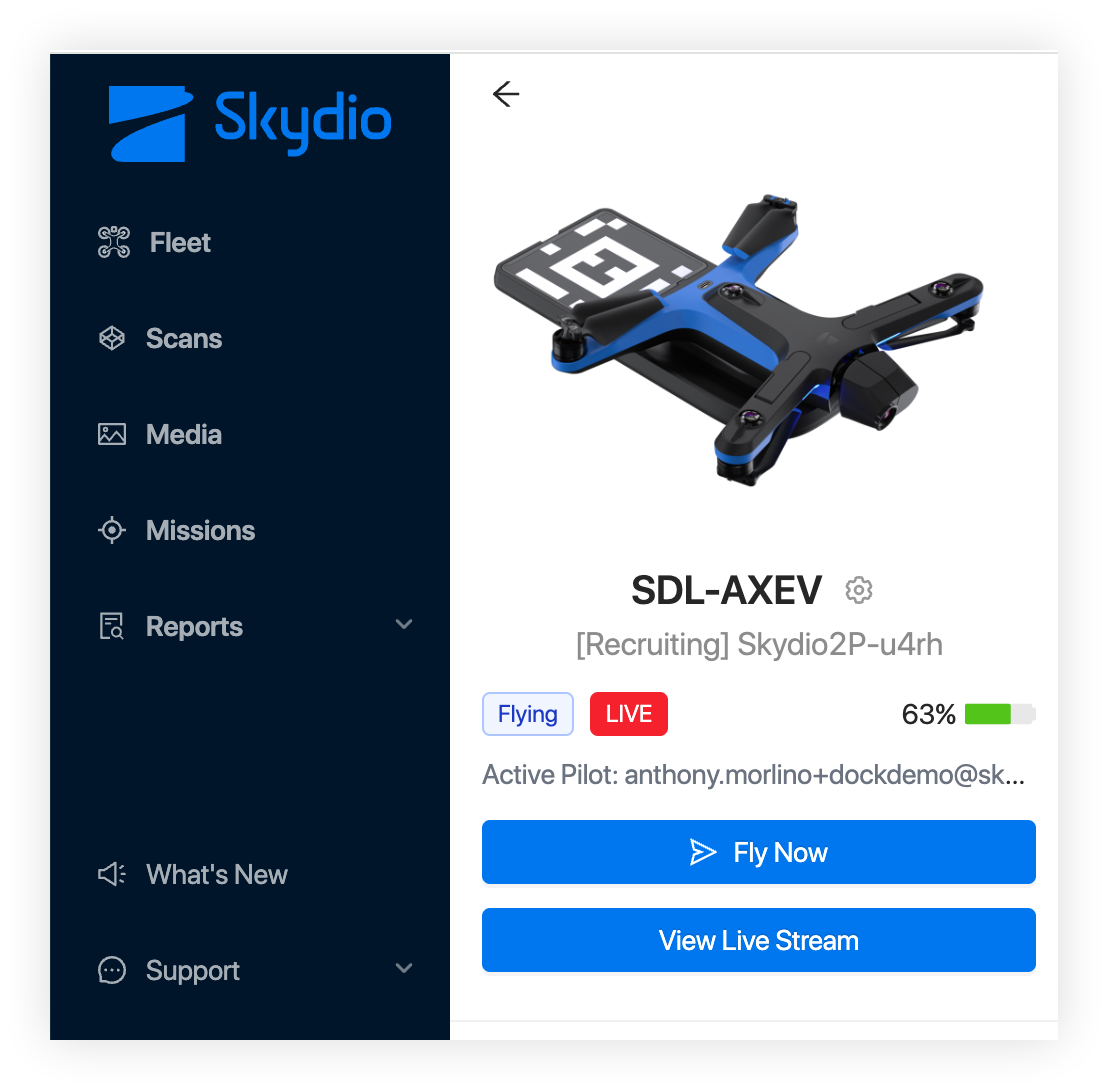

    • vehicles in your organization with active live streams will display a LIVE badge

Step 2 - Select a vehicle/stream to view

    • the live stream feed supports color and thermal video

[info]Video stream resolution will be up to 720p with a strong network signal connection (> 5 Mbps). The live video stream quality depends on the strength of the signal connection from the drone to the controlling device and the pilot's internet connection. The pilot can optimize the video feed for the pilot or the viewer. [/info]

Share a Live Stream link

Generate a Live Stream video feed link to share with people outside of your organization.

    • Viewable from mobile or desktop devices
    • Set an expiration date and time, and revoke the link at any time
    • Organizations that are enabled for multi-viewer streaming allow multiple users to use the same link

Step 1 - From your Fleet Dashboard, select Share Live StreamLive_stream_live.png

Step 2 - Select Copy Link and share

Screenshot 2023-12-07 at 1.24.51 PM.png



Step 3 - Edit the link duration or revoke the link

Screenshot 2023-12-07 at 1.24.44 PM.png

Viewing thermal streams

Skydio X2E Color/Thermal can share thermal and color Live Streams. Web browser viewers can utilize the Picture in Picture (PIP) view to switch between the two streams. The type of thermal view available depends on the pilot’s settings:

    • White Hot
    • Black Hot
    • Rainbow
    • Ironbow

Troubleshooting

[accordion heading="When trying to live stream, my controller screen goes blank and reboots"]

You may experience this issue if your vehicle has not yet been claimed in Skydio Cloud. Make sure to add all of your devices to Skydio Cloud before live streaming.

[/accordion]
