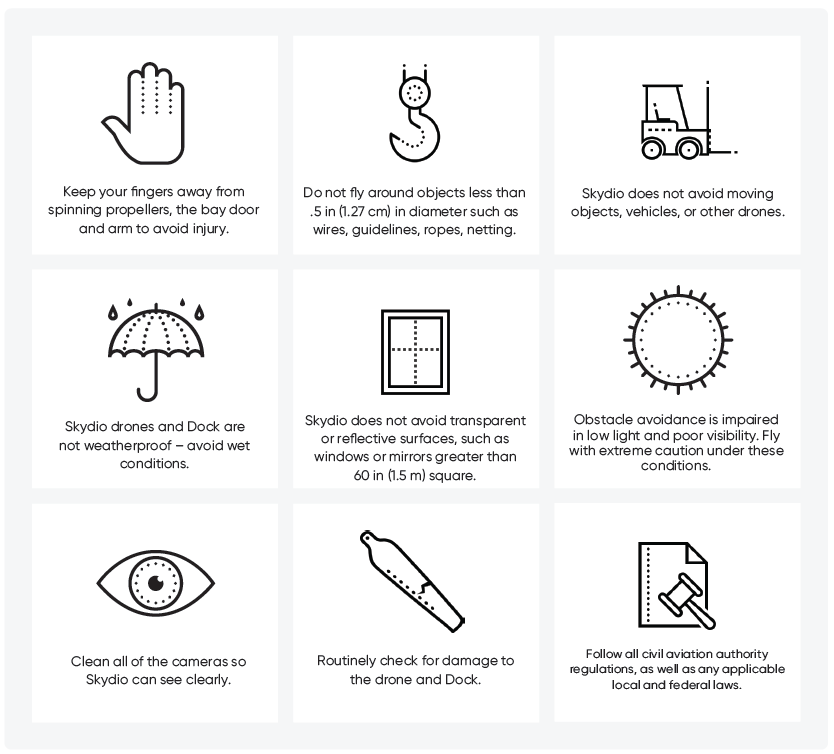

Skydio Dock Safety Guidelines

Skydio Dock Safety Guidelines

Ensure that Skydio Dock launch/land zone is defined and clear. Mark the zone around the Dock 10 feet (3 meters) above and in front and 3 feet (1 meter) on both sides so that people and vehicles do not interfere with launch and landing.

Safety

• • Inspect the bay door for damage or obstructions
  • Ensure that the pedestal and arm are securely mounted and free of debris
  • Ensure that the camera lenses are dust and smudge-free prior to inserting the drone
  • Inspect the battery magnets and connections for damage and debris prior to inserting the drone
  • Inspect the drone chassis and propeller blades for nicks, cracks, or other visible damage prior to inserting the drone
  • Secure the power and Ethernet cables to avoid tripping or snagging hazard
  • Keep fingers away from the bay door and arm as it is opening/closing
  • Keep fingers away from the propeller blades
  • Two (2) people are required to lift, mount and/or move the Dock and base
  • Do not use the bay door, access panel, or arm to move or lift the Dock
  • Fly cautiously around people, objects in motion, moving vehicles, or other drones
  • The remote pilot in command (RPIC) is responsible for managing altitude, range, and battery level and monitoring alerts

Electrical

• • Ensure that the electrical circuit supplying the Dock is properly grounded and the circuit breaker- is protected with a minimum capacity of 8 amps continuously available
  • Do not alter or detach Skydio Dock internal wiring or other electrical connections
  • Disconnect the dock from power before conducting any maintenance or moving
  • Service must be performed by a Skydio technician

Hardware

• • Ensure that the Dock is level
  • Ensure that there is at least 1 meter of space on the left and right sides of the Dock
  • Ensure that there are at least 3 meters of space in front of and above the Dock
  • Ensure that the Dock is installed in a dry location
  • Ensure pooled water will not pose a slipping or electrical hazard to personnel. Under certain conditions, condensation from the Dock might drain onto the floor or ground

Environment

• • Ensure the flight environment is adequately illuminated and has good visibility
  • Avoid flight in low-light conditions and areas where the transition between the light and shadow is abrupt and sharp
  • Maintain operational temperatures to enable battery charging:

               Skydio X2 14°F (-10°C) to 109°F (43°C)

               Skydio 2/2+ 23°F (-5°C) to 104°F (40°C)

• • Do not fly in precipitation, fog, or snow
  • Install Dock in an area sheltered from the wind
  • Ensure Dock will be protected from interference by wildlife
  • Do not fly around objects less than 0.5 in (1.27 cm) in diameter, such as wires, cables, guidelines, ropes, netting
  • Avoid flight in areas with transparent or reflective surfaces, such as windows or mirrors greater than 60 in (1.5 m) square
  • Consider obstacle avoidance settings when flying through narrow spaces

Regulations

• • Follow all civil aviation, such as the FAA or your country’s regulatory agency, rules and regulations
  • You are responsible for your Skydio drone at all times
  • Do not fly in an environment where the use of the device is restricted or not authorized

[info text=" Visit https://skydio.com/safety and https://skydio.com/support for more information, helpful tips, videos, and articles."]

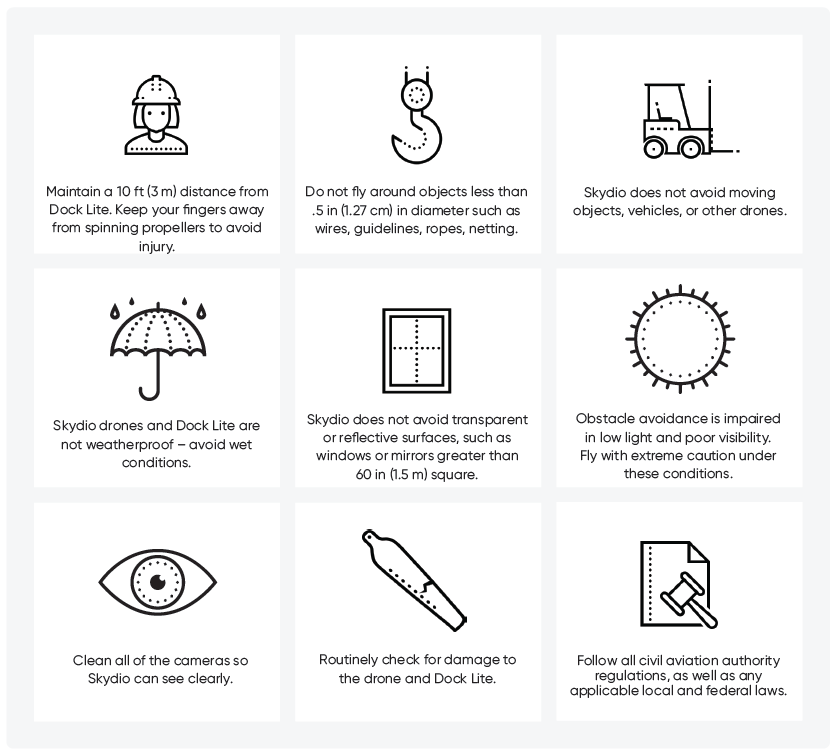

Skydio Dock Lite Safety Guidelines

Safety

• • Maintain a 10 ft (3 m) perimeter around Dock Lite while the drone is in operation
  • Inspect the battery magnets and connections for damage and debris before inserting the drone
  • Inspect the drone chassis and propeller blades for nicks, cracks, or other visible damage before inserting the drone
  • Secure the power cable to avoid tripping or snagging hazard
  • Keep fingers away from the propeller blades
  • Fly cautiously around people, objects in motion, moving vehicles, or other drones
  • The remote pilot in command (RPIC) is responsible for managing altitude, range, and battery level and monitoring alerts

Electrical

• • Ensure that the electrical circuit supplying the Dock Lite is properly grounded and circuit breaker-protected with a minimum capacity of 8 amps continuously available
  • Disconnect the Dock Lite from power before conducting any maintenance or moving

Hardware

• • Ensure that the Dock Lite is level +/- 5 degrees
  • Ensure that there is at least 1 meter of space on the left and right sides of the Dock Lite
  • Ensure that there are at least 3 meters of space in front of and above the Dock Lite
  • Ensure that the Dock Lite is installed in a dry location
  • Ensure pooled water will not pose a slipping or electrical hazard to personnel. Under certain conditions, condensation from the Dock Lite might drain onto the floor or ground.

Environment

• • For indoor use only.
  • Ensure the flight environment is adequately illuminated and has good visibility
  • Avoid flight in low-light conditions and areas where the transition between the light and shadow is abrupt and sharp
  • Monitor temperatures
    • Skydio 2/2+ operation 23°F to 104°F (-5°C to 40°C)
    • Dock Lite operation 32°F to 95°F (0°C to 35°C)
    • Dock Lite storage -4°F to 140°F (-20°C to 60°C)
    • Battery storage 71°F - 82°F (22°C - 28°)
  • Do not fly around objects less than 0.5 in (1.27 cm) in diameter, such as wires, cables, guidelines, ropes, netting
  • Avoid flight in areas with transparent or reflective surfaces, such as windows or mirrors greater than 60 in (1.5 m) square
  • Consider obstacle avoidance settings when flying through narrow spaces

Regulations

• • Follow all civil aviation, such as the FAA or your country’s regulatory agency, rules and regulations
  • You are responsible for your Skydio drone at all times
  • Do not fly in an environment where the use of the device is not authorized or restricted

[info text=" Visit https://skydio.com/safety and https://skydio.com/support for more information, helpful tips, videos, and articles."]
