AR Coverage Mesh allows you to monitor the photo coverage progress of your scan by displaying a live heatmap that updates as the drone captures scan images.

• Yellow indicates minimal coverage
• Purple indicates full coverage

Quick Steps

Step 1 - Select 3D Capture mode

Step 2 - Select the icon to display real-time AR photo coverage of your scan

Ensure coverage of key areas and enable the AR Coverage Mesh:

• During the Explore phase
• Live while scanning
• Viewing the scan in the AR Observer
• Manual Capture

[info] Tap in the top right corner to toggle the AR Coverage Mesh. [/info]

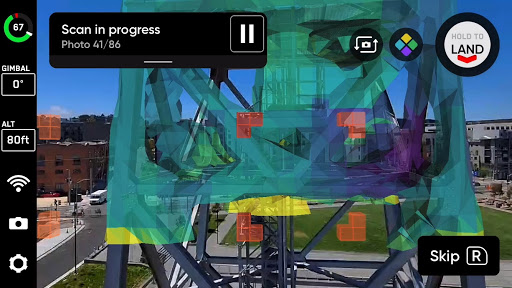

AR Coverage Mesh toggled on during the scan

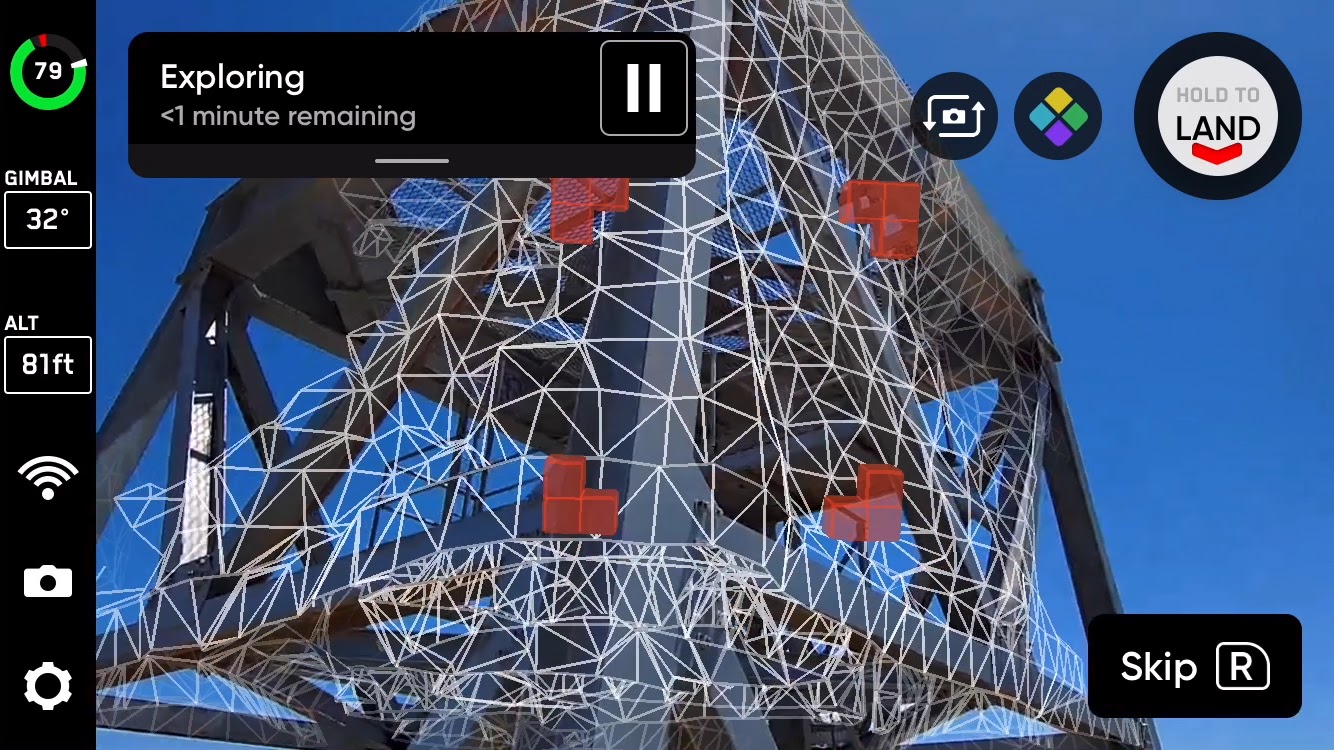

AR Coverage Mesh wireframe toggled on during the Explore step

[note] Images are not captured during the Explore phase, but the coverage mesh will show the low-poly map building process.  [/note]
