Overview

Establishing a return location and return behaviors for your Skydio 2/2+ will ensure a safe return flight and landing. When a return is triggered, either manually or autonomously, Skydio will first ascend to a specified height to ensure that no obstacles, people, or animals will be in your drone’s return pathway. You can also adjust the speed and orientation of your Skydio 2/2+ during the return trip and set lost connection behaviors. Skydio will retain its current obstacle avoidance setting while returning.

Set Return Behaviors

Step 1 - Select the Settings icon X2-user_guide-flying_x2-flight_screen_icon-1__device_settings_.png

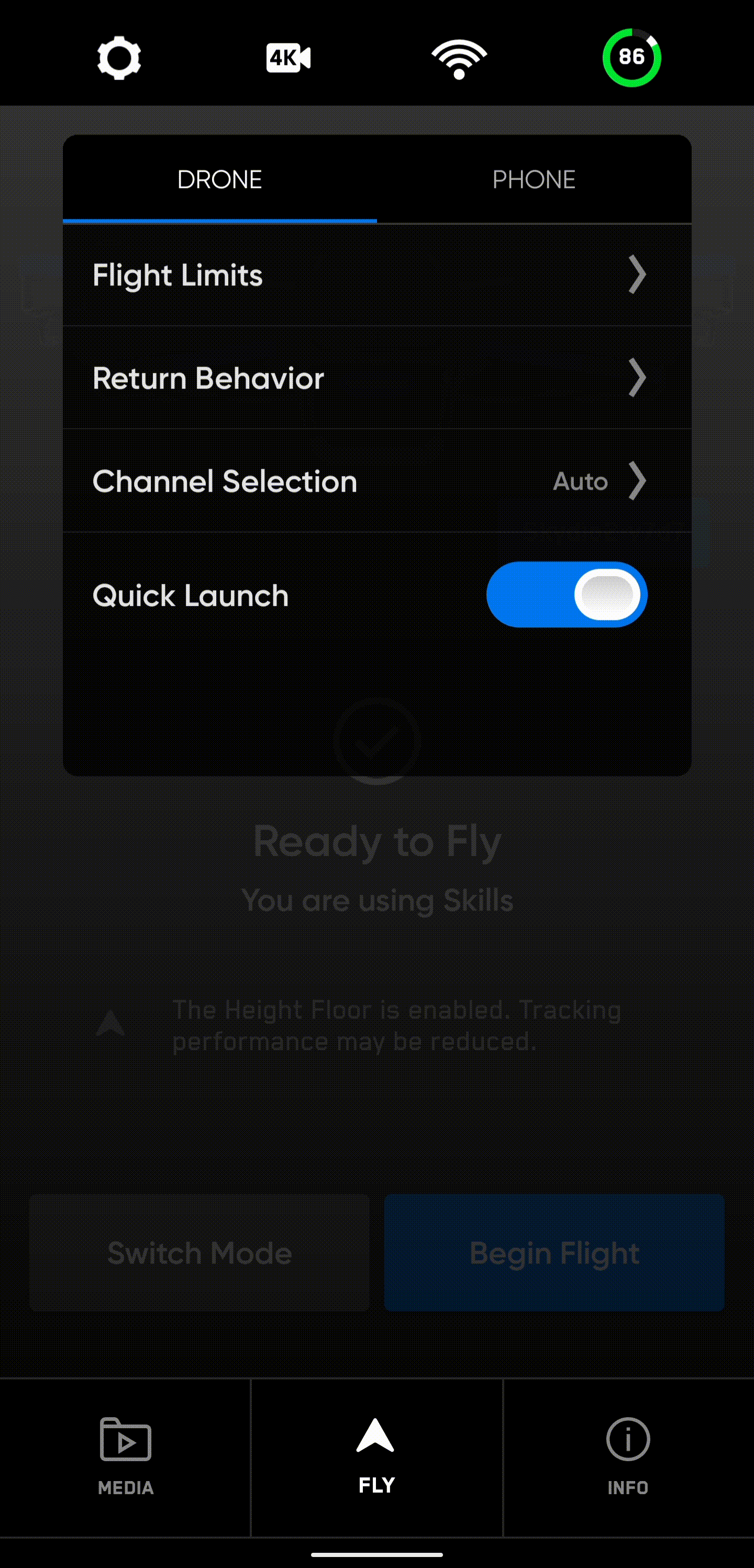

Step 2 - Select the Drone tab

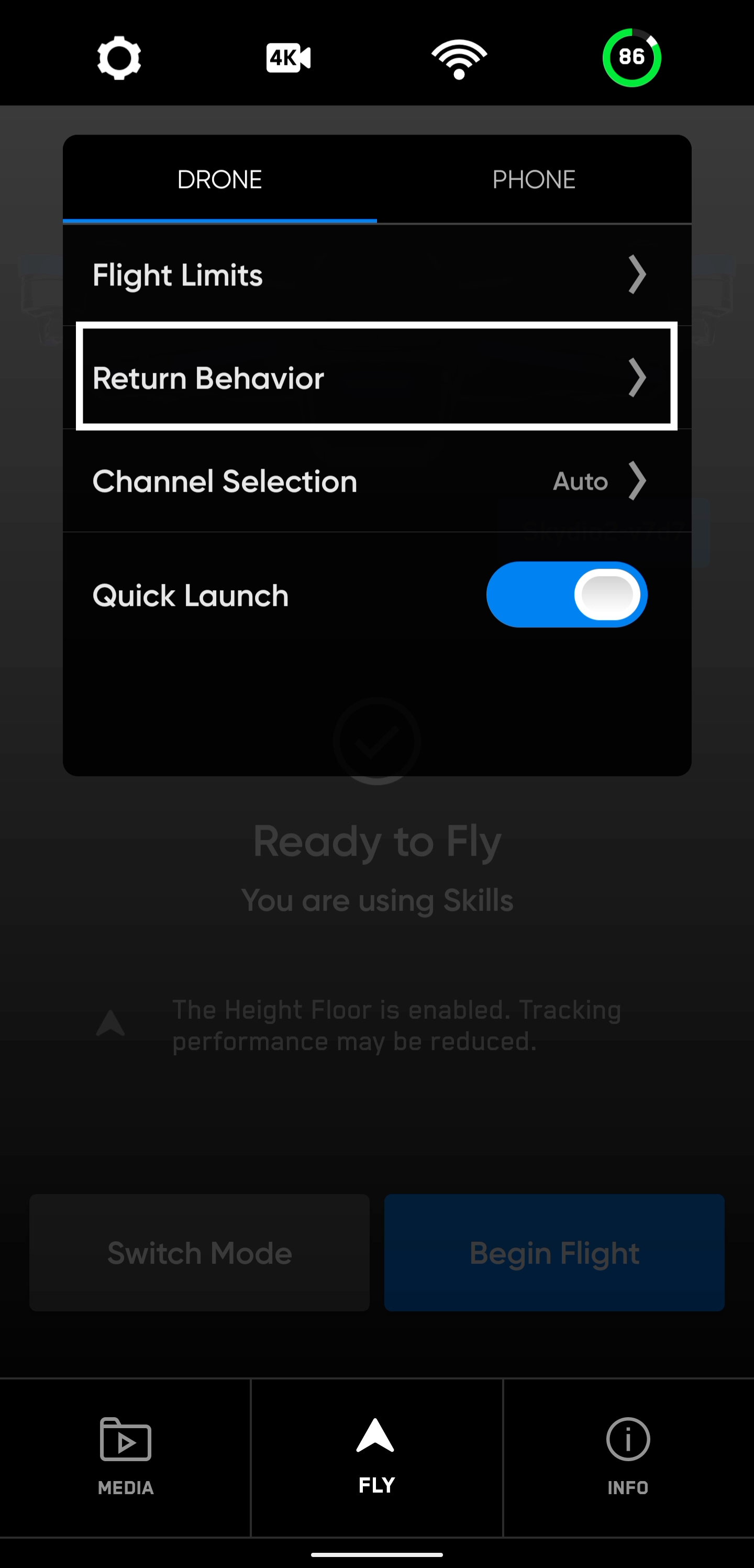

Step 3 - Select Return Behavior


The Return Behavior menu allows you to set:

  • Return Height
  • Height Behavior
  • Drone Looks
  • Return Speed
  • Lost Connection

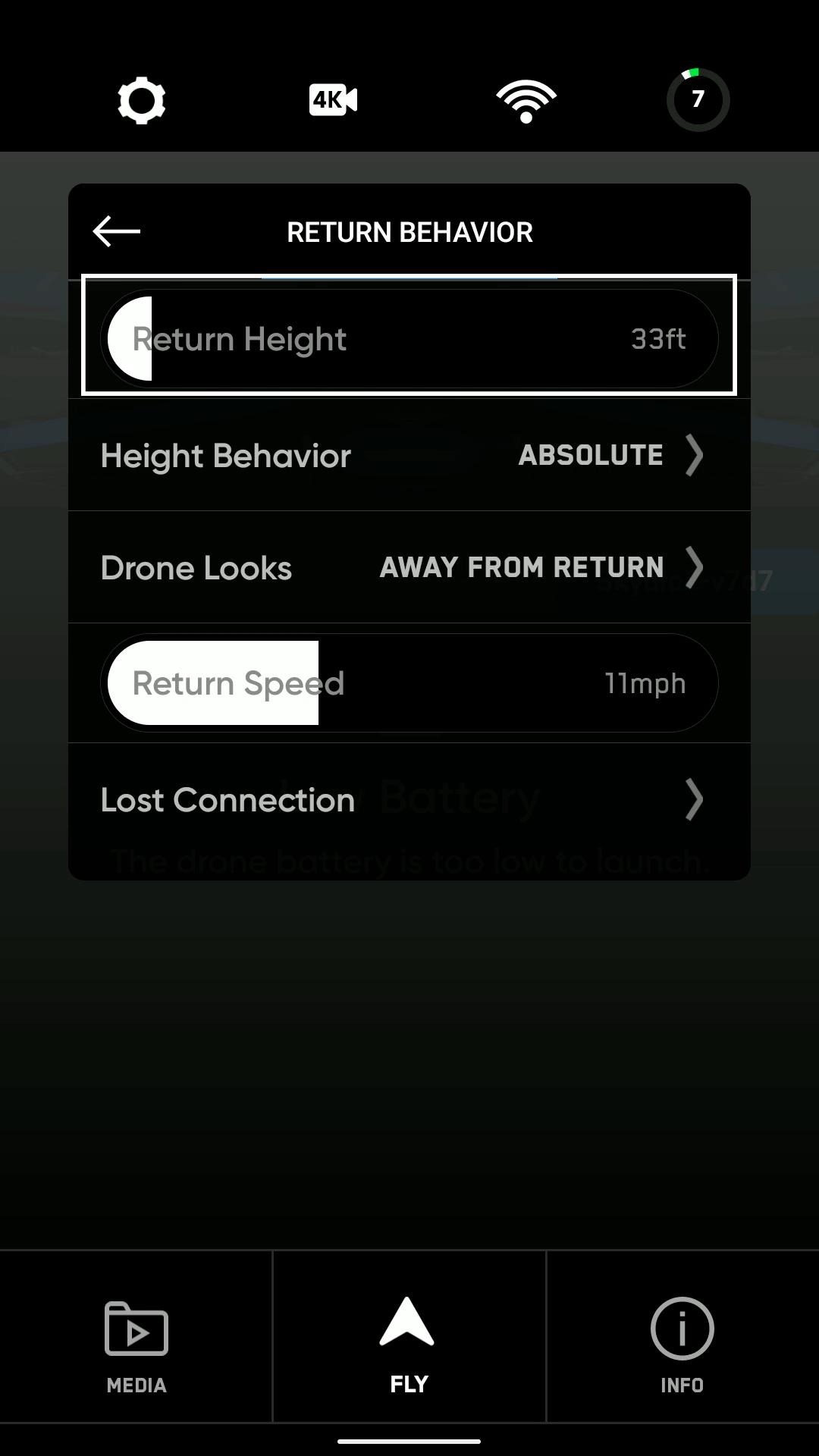

Return Height

Allows you to set the height to which Skydio should ascend before returning. By default, the Return Height is set to 32 ft (9.7 m). Skydio 2/2+ will ascend to that height before returning.


Height Behavior

Choose between Absolute and Relative:

Absolute means your drone will ascend to the specified Return Height above the launch point before returning.

  • For example, if the Return Height is 32 ft and the drone is at 20 ft at the time the return is commanded, Skydio will ascend to 12 ft before returning.

Relative means your drone will ascend to the specified Return Height above the current position before returning.

  • For example, if the Return Height is 32 ft and the drone is at 20 ft at the time the return is commanded, Skydio will ascend 32 ft and then return at a height of 52 ft.




Drone Looks

Skydio will either look toward or away from the return destination while returning.

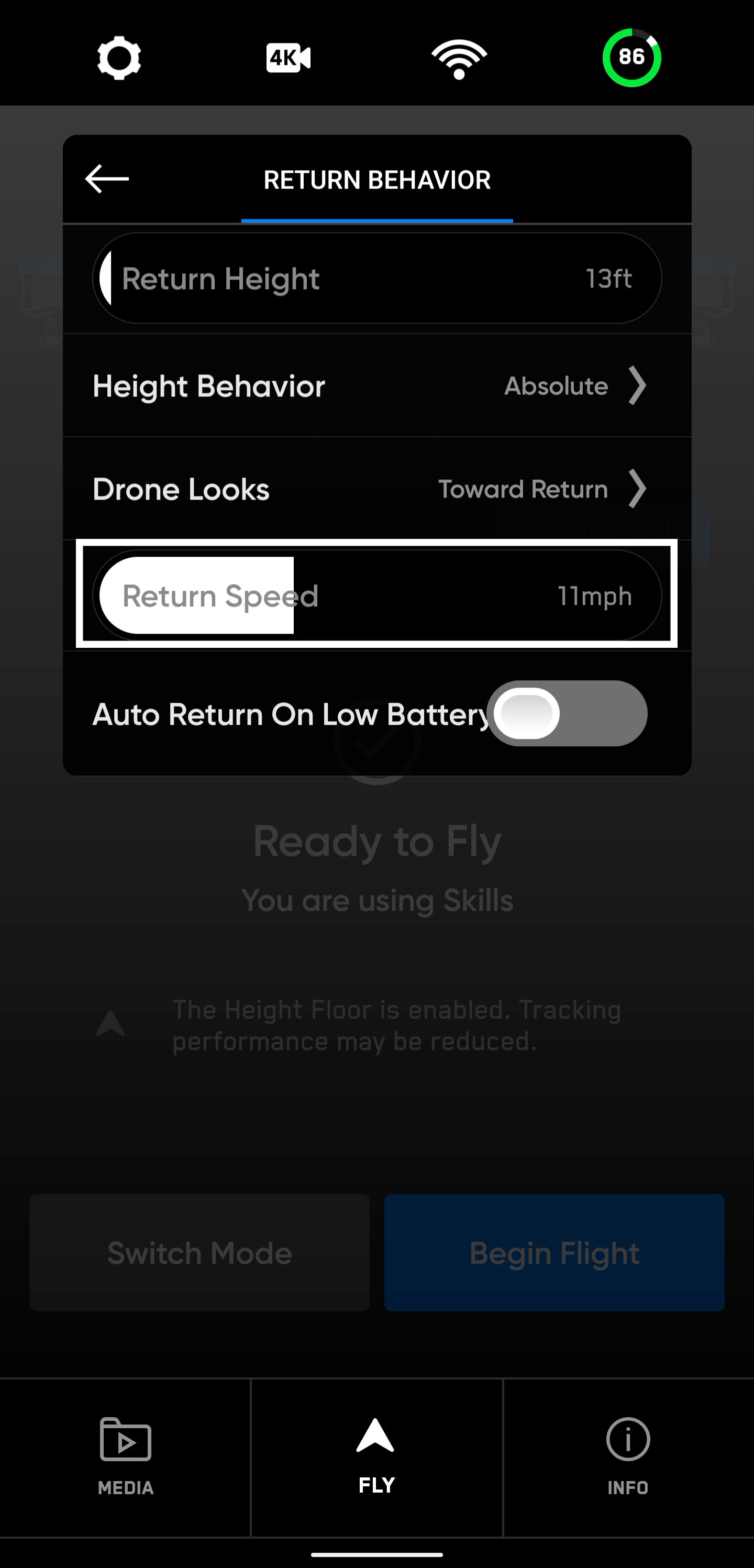

Return Speed

Adjust the speed at which Skydio should fly when returning.

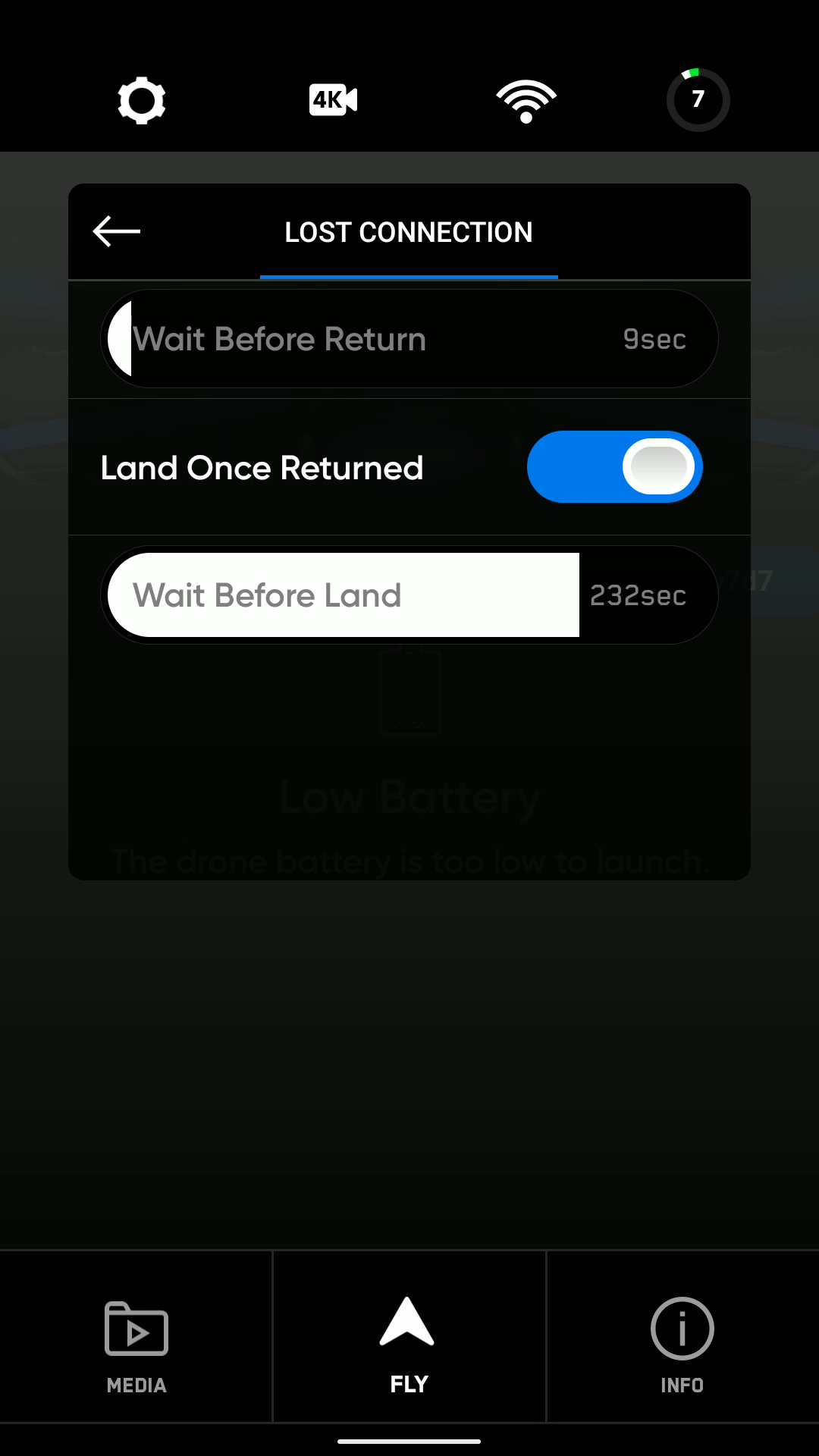

Lost Connection

Lets you choose how you want your drone to behave if the signal to your controlling device is lost

  • Wait Before Return - Specify the amount of time that you want Skydio to wait before it initiates a return flight, allowing time to reconnect.
  • Land Once Returned - When enabled, Skydio will return, hover for a specified amount of time, then land.
  • Wait Before Land - Specify the amount of time between 0 to 300 seconds (the default is 240 seconds) that you want Skydio to wait before landing. This setting is only enabled when Land Once Return is toggled on.

[info text="If the return type is set to GPS but the Skydio 2/2+ enters a GPS denied situation your drone will return to the last known GPS point using vision navigation. If a GPS link is not re-established your drone will return to the launch point using vision navigation."]

Low Battery Behavior

When your battery is low, there will be a series of notifications and actions to ensure a safe landing:

  • Skydio will assess your altitude and distance from the Home Point, then warn you when it is time to return home. It is recommended to you initiate a return or land at this time, however you can choose to keep flying.
  • Skydio will then notify you when it has 2 minutes of flight time left based on its current altitude and the battery indicator will begin a two-minute countdown. You may choose to continue flying, however it is strongly recommended that you fly to a safe location and land.
  • When the two-minute countdown is complete, Skydio will initiate an automatic landing that you will be unable to cancel. You will maintain the ability to nudge the drone in roll, pitch, and yaw to avoid any obstacles.

[note]Skydio will not automatically return to the Home Point when it reaches low battery. It will simply notify you that it is time to return, at which point you will need to command a return using the Return to Home button in the app or on the Skydio Controller.[/note]
