How to add a network on Skydio Cloud

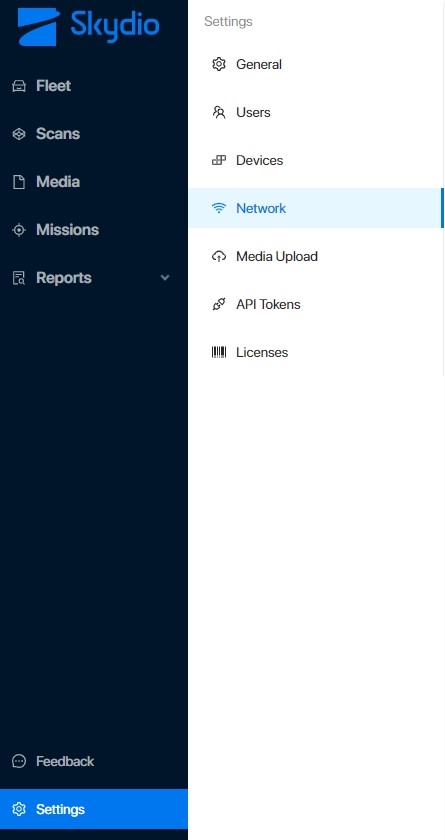

Step 1 - Select Settings

Step 2 - Select Network

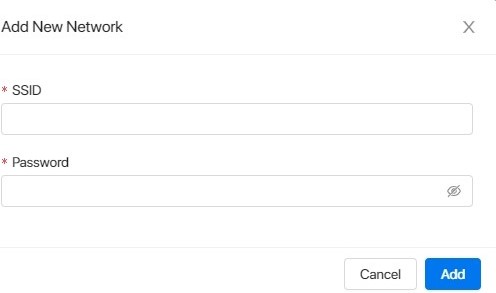

Step 3 - Select Add New Network

Step 4 - Input SSID (the name of your wireless network)

• • Skydio 2 is compatible with both 2.4 and 5 GHz networks
  • Skydio X2 and Skydio 2+ are only compatible with 5 GHz networks

Step 5 - Input the password

• • you can modify the SSID but not the password

Step 6 - Select Add

• • repeat steps to add additional wireless networks allowing your Skydio drones to leverage multiple networks for connectivity

Step 7 - Organize the priority networks

• • networks are ordered by priority, with the top connecting first
  • drag the network box to reorder

Step 8 - Attach the battery to your Skydio drone and power ON

Step 9 - Log into your controlling device using your Skydio Cloud organization registered username and password.

• • Ensure that your controlling device is connected to a wireless network

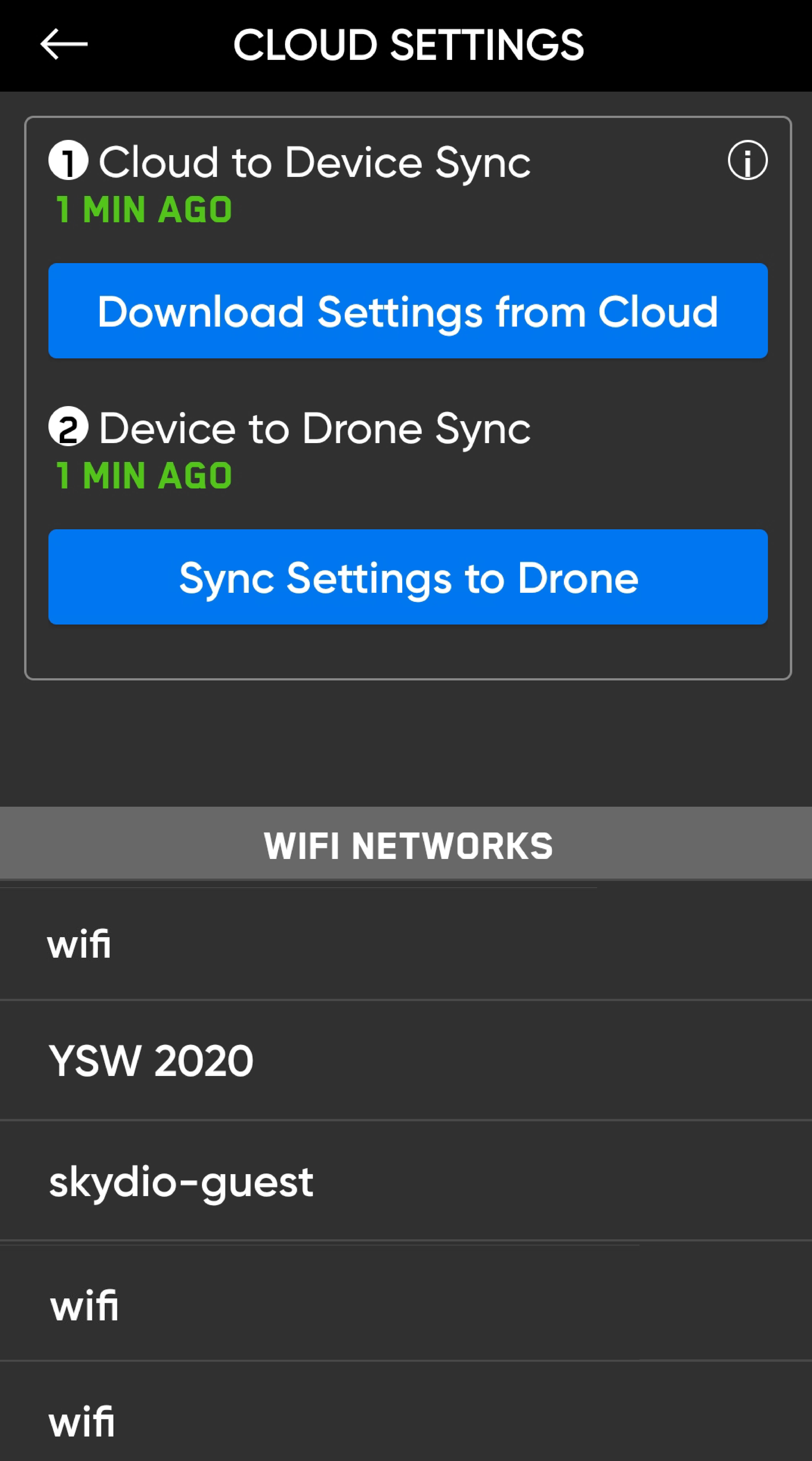

Step 10 - Sync your Skydio Cloud features from your controlling device

• • Select INFO
  • Select your drone
  • Select Cloud Settings

1. Select Download features from Cloud to sync from Skydio Cloud to your controlling device.
2. Select Sync Settings to Drone to sync Skydio Cloud settings from your controlling device to your drone.

Your controlling device must have an internet connection for the initial license assignment

Cloud settings offer visibility into the networks you have added in Skydio Cloud.

Ensure that the network is WPA2-PSK compatible:

• • WPA2-PSK (WPA2 Personal) networks using an SSID and password are compatible
  • WPA2-Enterprise networks are NOT compatible
  • We do not currently support networks without passwords

Turn off media access control (MAC) address filtering:

• • if you need to connect to a network that uses MAC filtering, contact Skydio support to obtain the MAC to address for your drone

Ensure that Skydio X2 is connected to a 5 GHz wireless network:

• • disable Dynamic Frequency Selection (DFS)
  • disable channels: 50-150 inclusive
  • disable the UNII-2 bands

Standard 5GHz networks include a set of channels, known as UNII-2, that are used for weather radar systems. To avoid conflict with these systems, a device that operates on these channels is required to implement Dynamic Frequency Selection (DFS). Skydio drones do not support 5 GHz wifi networks on U-NII-2 per the United States Federal Communications Commission regulations.

For more information visit: Cisco 5GHz WiFi Network Channel Documentation.

Other recommended settings:

• • set Channel width to 20 MHz
  • enable 6 Mbps in the data rates tab
